Siemens SIPROTEC 5 User Manual

[dwstrthe-030615-01.vsd, 2, en_US]

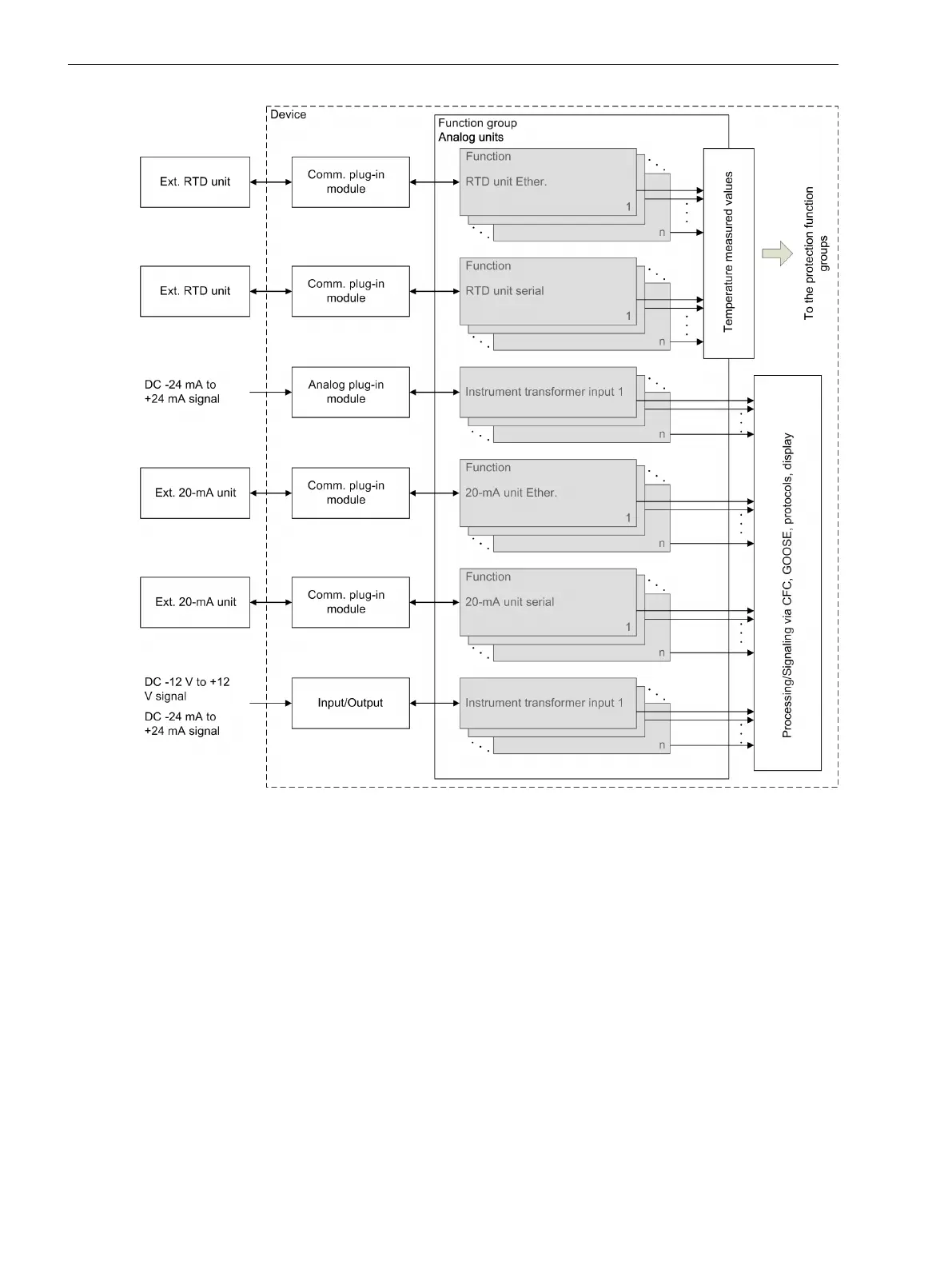

Figure 6-32
Structure of the Analog Unit Function Group
Gray: Optionally Wired, optionally available
White: Always wired, always available
The Analog units function group has interfaces to protection function groups. The Analog units function
group provides measured temperature values that come from an external RTD unit . These measured tempera-
ture values are available for all protection function groups in which a temperature monitoring function works.
The RTD unit Ether. function is not preconfigured by the manufacturer. A maximum of 20 function instances
can operate simultaneously.
The RTD unit serial function is set up structurally exactly in the same manner as the RTD unit Ether. function.
Function-Group Types
6.5 Function-Group Type Analog Units
172 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
