Siemens SIPROTEC 5 User Manual

[sctrigra-280113-01.tif, 1, en_US]

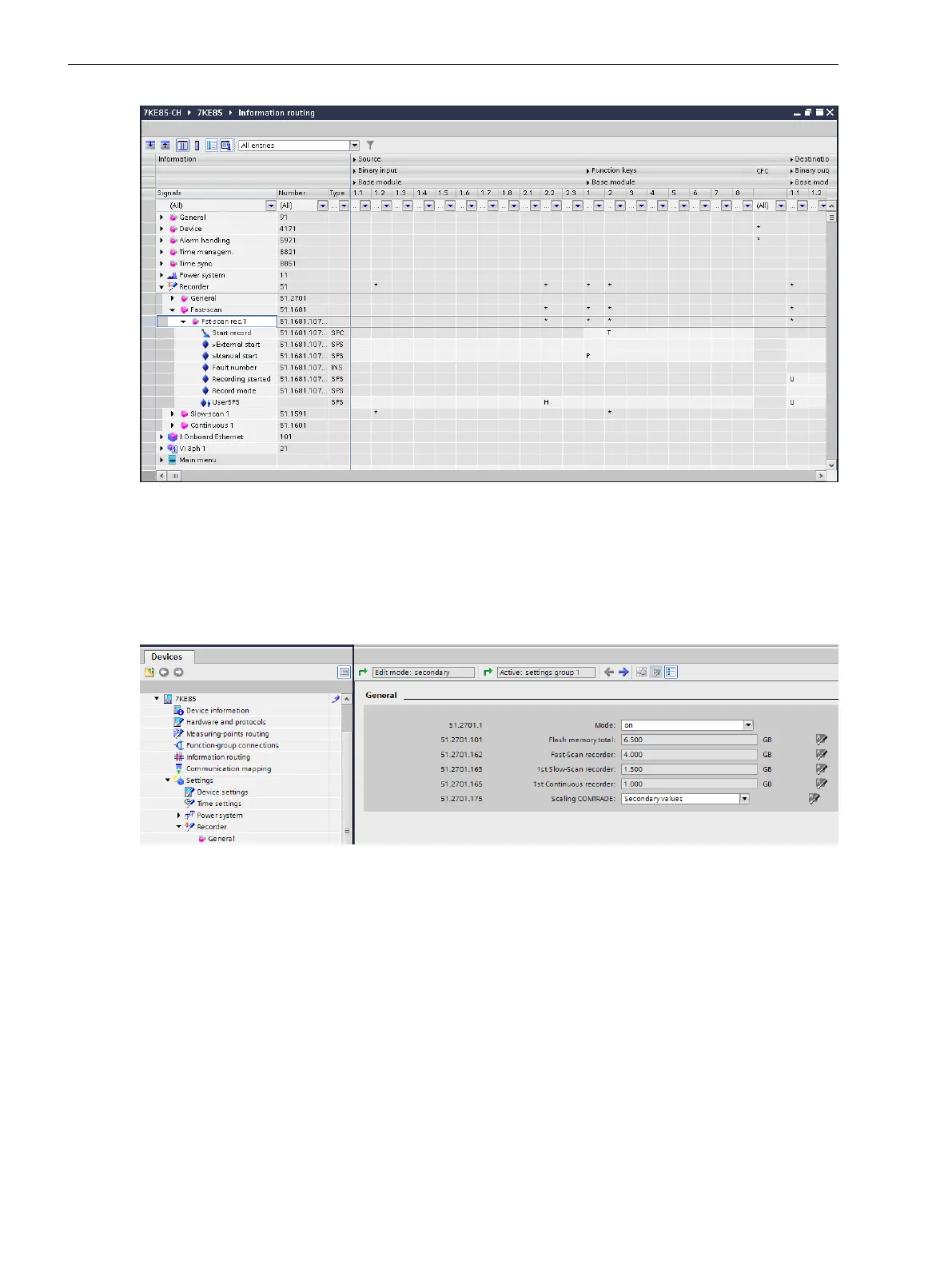

Figure 7-20 Routing of the Signals in the Information Routing
Application and Setting Notes – General Settings
The following figure shows the memory splitting of the different recorders and the general settings of the FG
Recorder.
[sc_RecorderGeneral, 1, en_US]
Figure 7-21 FG Recorder – General Settings
Parameter: Scaling COMTRADE
•
Recommended setting value Scaling COMTRADE = Secondary values
With the Scaling COMTRADE parameter, you scale the fault-record data for the COMTRADE format. Possible
setting values are Primary values or Secondary values .
Memory Splitting
The maximum flash-memory capacity of the recorder is 15 GB.
Using the parameter Flash-memory size you can change the flash-memory capacity of each individual
recorder.
Several thousand recordings can be stored, depending on the flash-memory capacity.
7.2.4
Fault Recorder
7.2 Function-Group Type Recorder
234 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
