Siemens SIPROTEC 5 User Manual

SDHC Memory Card

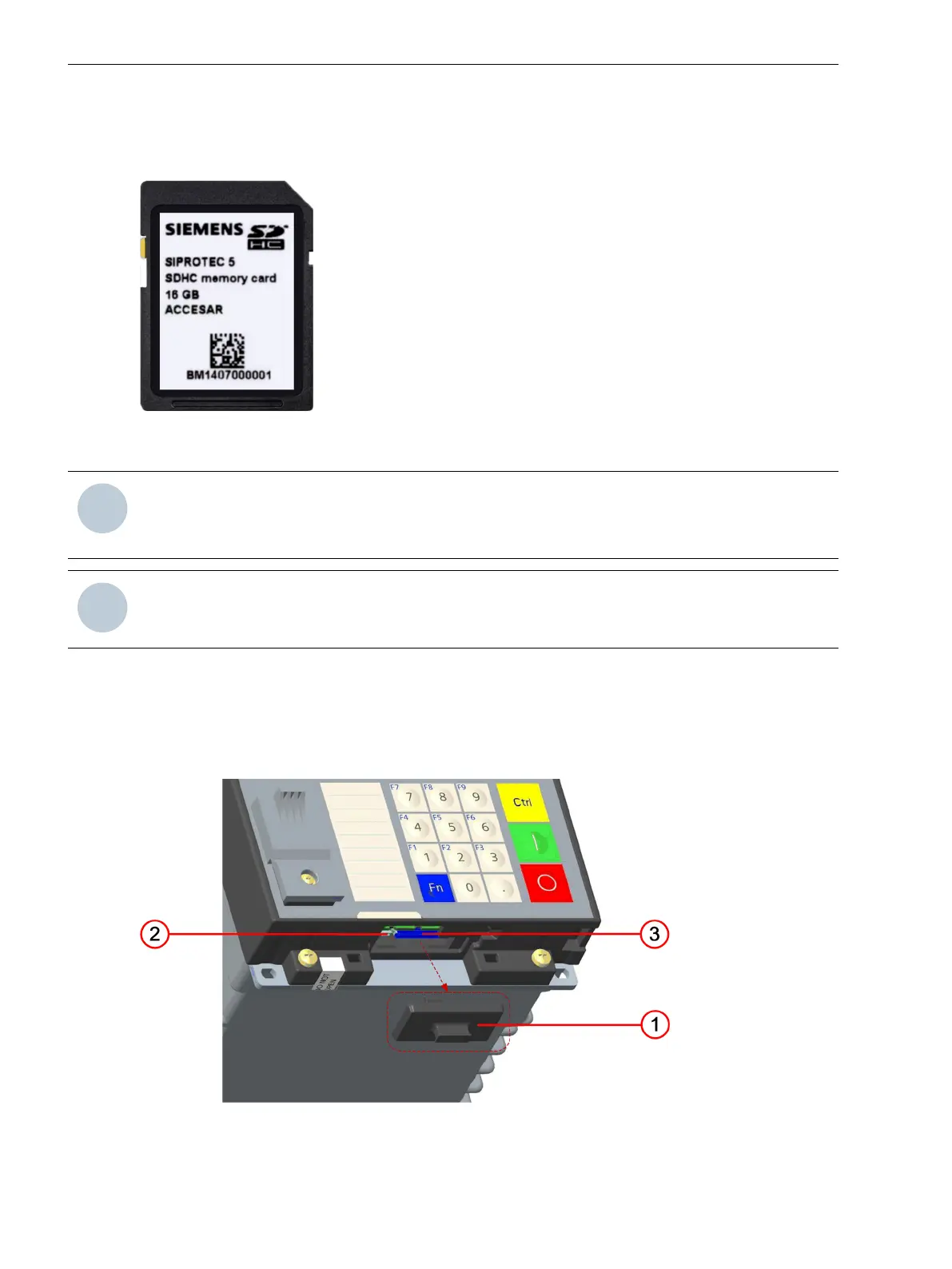

The SDHC memory card (Secure Digital High Capacity) is used to store records from the 7KE85 fault recorder.
[dw_SDHC, 1, --_--]
Figure A-20 SDHC Memory Card
i
i
NOTE
Reading the data of the SDHC memory card with a PC is not intended.
Avoid too frequent insertion cycles!
i
i
NOTE
Use only the original SDHC memory card (ACCESAR) approved by Siemens for the 7KE85 fault recorder.
Replacing the SDHC Memory Card
²
De-energize the device.
²
Remove the sealing cap.
²
Unlock the card by pressing the turquoise eject lever.
[le_Remove_cap_and_SDHC, 1, --_--]
Figure A-21 Removing the Sealing Cap and SDHC Memory Card
A.8
Appendix
A.8 SDHC Memory Card
472 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
