(1) Push the holder, push the sealing cap to the back and remove it
(2) Unlock the eject lever
(3) Remove the SDHC memory card
²
Unpack the new SDHC memory card.
Do not touch the contacts of the SDHC memory card with your fingers.
²
Insert the new SDHC memory card.
When inserting, make sure that the SDHC memory card is properly aligned: The side with the contacts
must be facing up, the side with the sticker facing down.

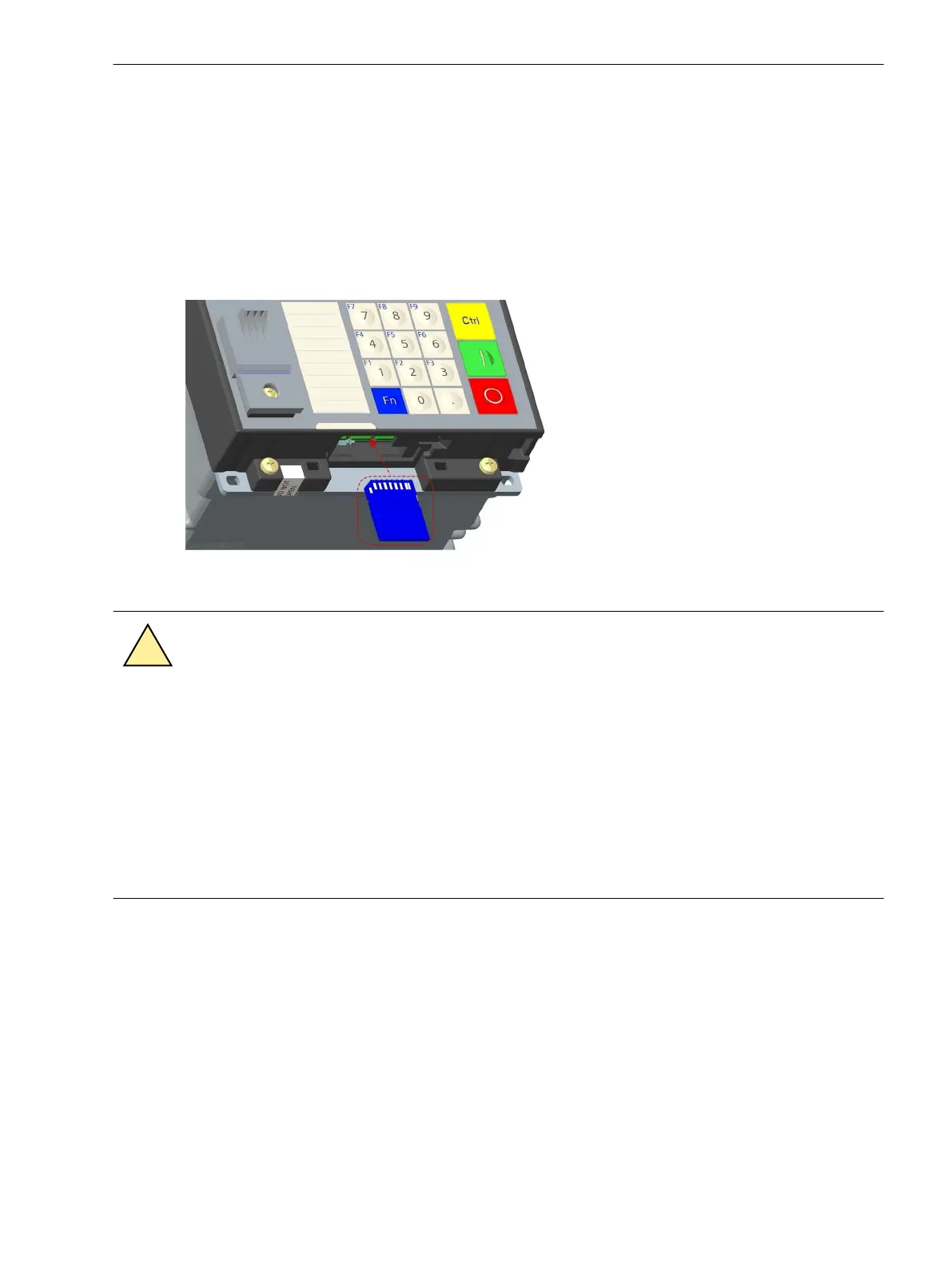

[dw_insert_SDHC, 1, --_--]
Figure A-22 Inserting the SDHC Memory Card into the Device
!
CAUTION
Exercise caution when removing the SDHC memory card from a defective device.
If you want to remove the SDHC memory card from a defective device and to insert the card into another
healthy device and if the data must be kept, note the following:
Noncompliance with the specified measures can result in loss of data.
²
To avoid a reformatting of the SDHC memory card, you must first import the parameters of the defec-
tive device to another device.
²
You can insert the SDHC memory card in the other device and use it only then.
²
The recordings on the SDHC memory card from the defective device can still be read in the other
device.
²
Insert the sealing cap back again.
²
Resume operation of the device.
Appendix
A.8 SDHC Memory Card
SIPROTEC 5, Fault Recorder, Manual 473
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
