Siemens SIPROTEC 5 User Manual

[scpro7ke-200515, 1, en_US]

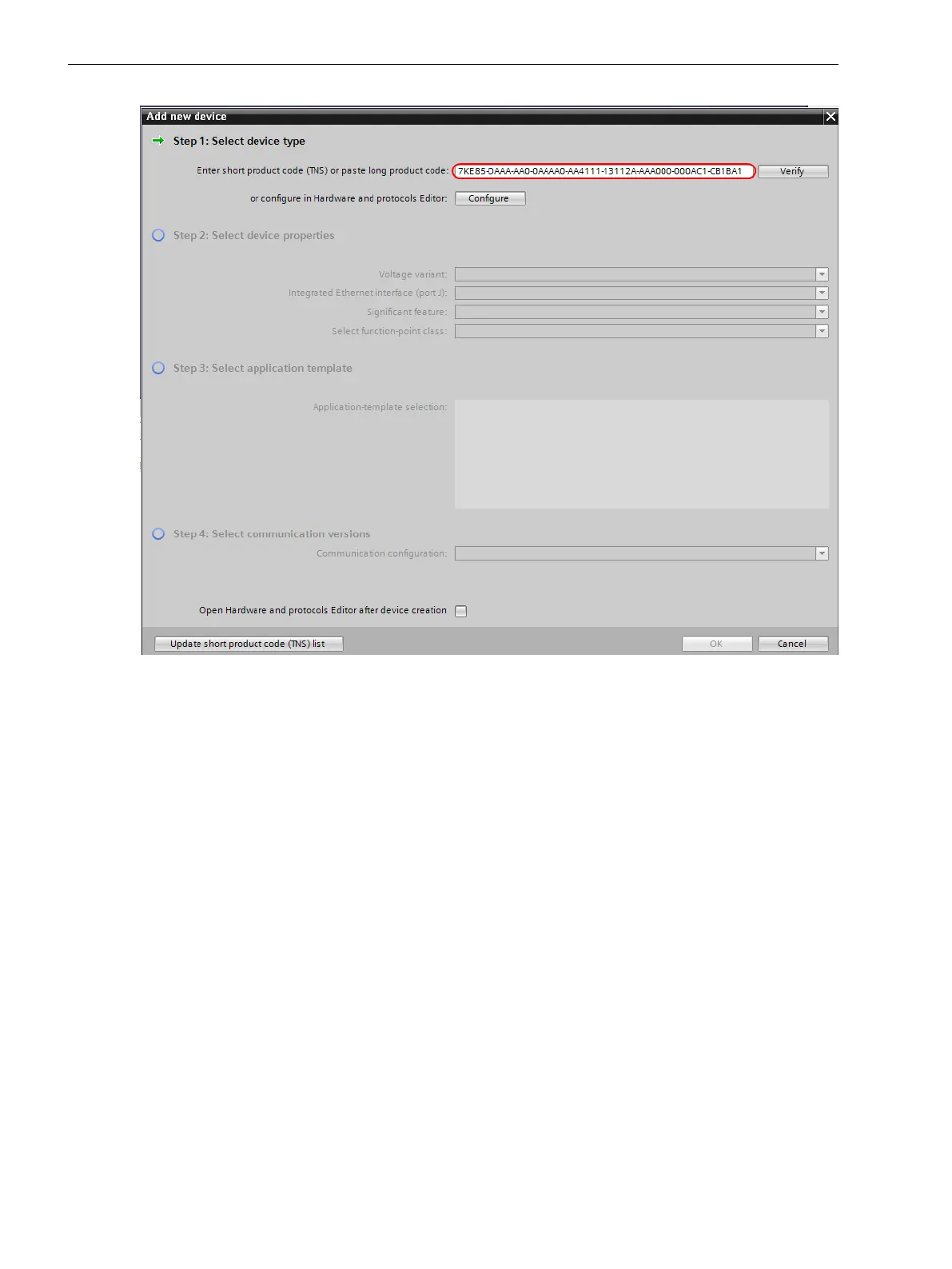

Figure 7-3
Entering Product Code
²
When you have entered a product code, click Check. If the product code is valid, the Select an applica-
tion template list box is activated.
If the product code is invalid, you receive specific error messages. Correct the product code.
When you click Configure, this closes the current dialog and changes to the manual configuration mode.
The Network view is displayed in the operating range.
More details on the product code and on the Configure button is found in the DIGSI Help, Chapter
Adding a new device.
Step 2: Select Device Characteristics
²
If the device characteristics are completely specified by the product code, the check box Step 2: Select
device characteristics is dimmed and can not be edited.
You can find more details on this button in the DIGSI Help, Chapter Adding new device.
Step 3: Select an Application Template
You can carry out this step only if you have selected the device type and the device characteristics, if appli-
cable.
²
Select the application template you wish to use as a basis for your engineering from the list box.
Fault Recorder
7.1 Introduction to DIGSI 5
216 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
