Siemens SIPROTEC 5 User Manual

[scproj7k-040412-01.tif, 1, en_US]

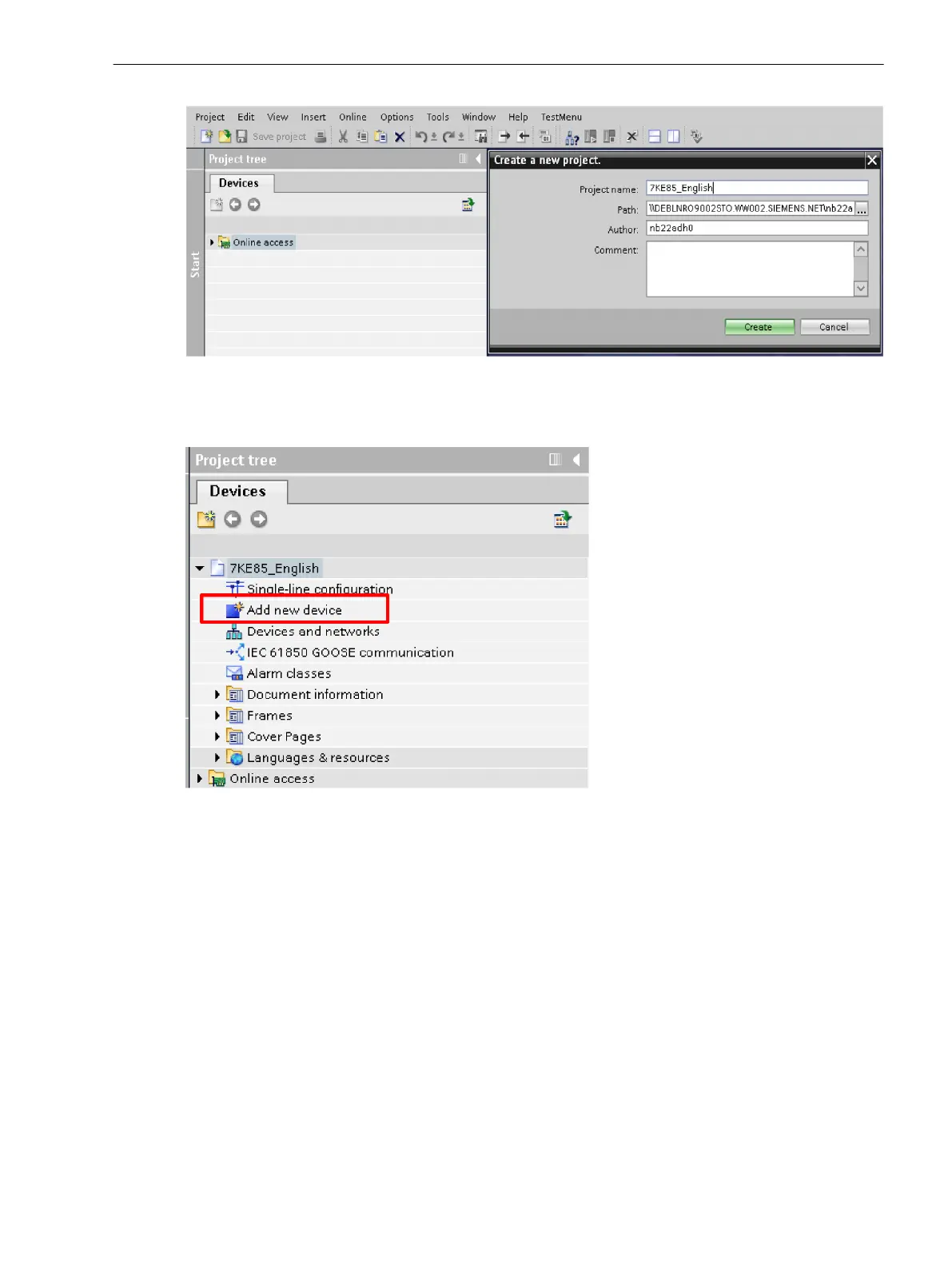

Figure 7-1 Creating a New Project
²
Double-click Add new device.
[scger7ke-310812-01.tif, 1, en_US]
Figure 7-2 Add New Device
Step 1: Select a Device Type
²
If you want to specify the offline configuration with a valid product code, enter the product code of the
device to be configured in this entry field (on this, see A.1 Order Configurator and Order Options).
If you want to configure the project offline, leave the entry field blank.
Fault Recorder
7.1 Introduction to DIGSI 5
SIPROTEC 5, Fault Recorder, Manual 215
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
