[dwfgspan-240812-01.tif, 2, en_US]

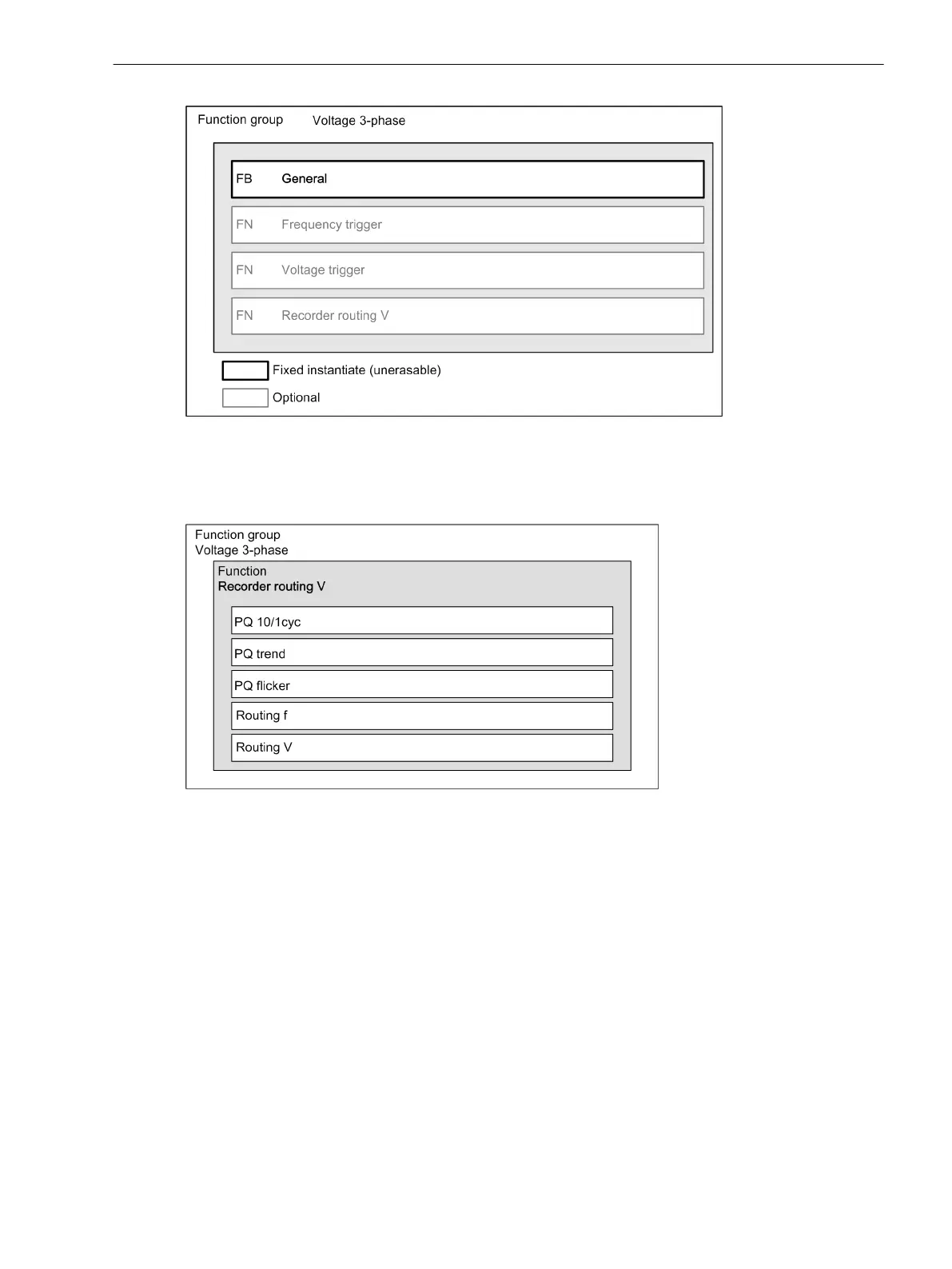

Figure 6-1 Structure of the Voltage 3-Phase Function Group
The recorder routings enable the routing of the individual measured values to the various recorders. The
following figure shows the structure of the Recorder routing V function group.
[dwrecrou-060912-01.tif, 2, en_US]
Figure 6-2 Structure/Embedding of the Recorder Routing V Function
More information on the Recorder routing V function is found in the chapters 7.1.3 Step 2: Setting the
Parameters and Routing in DIGSI 5 and 7.6.1.2 Using Measurands .
Interface with Measuring Points
The measurands from the 3-phase voltage system are supplied via the V 3-ph interface. Depending on the
type of transformer connections, these are, for example, V
A
, V
B
, V
C
, V
gnd
. All values that can be calculated from
the measurands are also provided via this interface.
Function-Group Types
6.1 Function-Group Type Voltage 3-Phase
SIPROTEC 5, Fault Recorder, Manual 137
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
