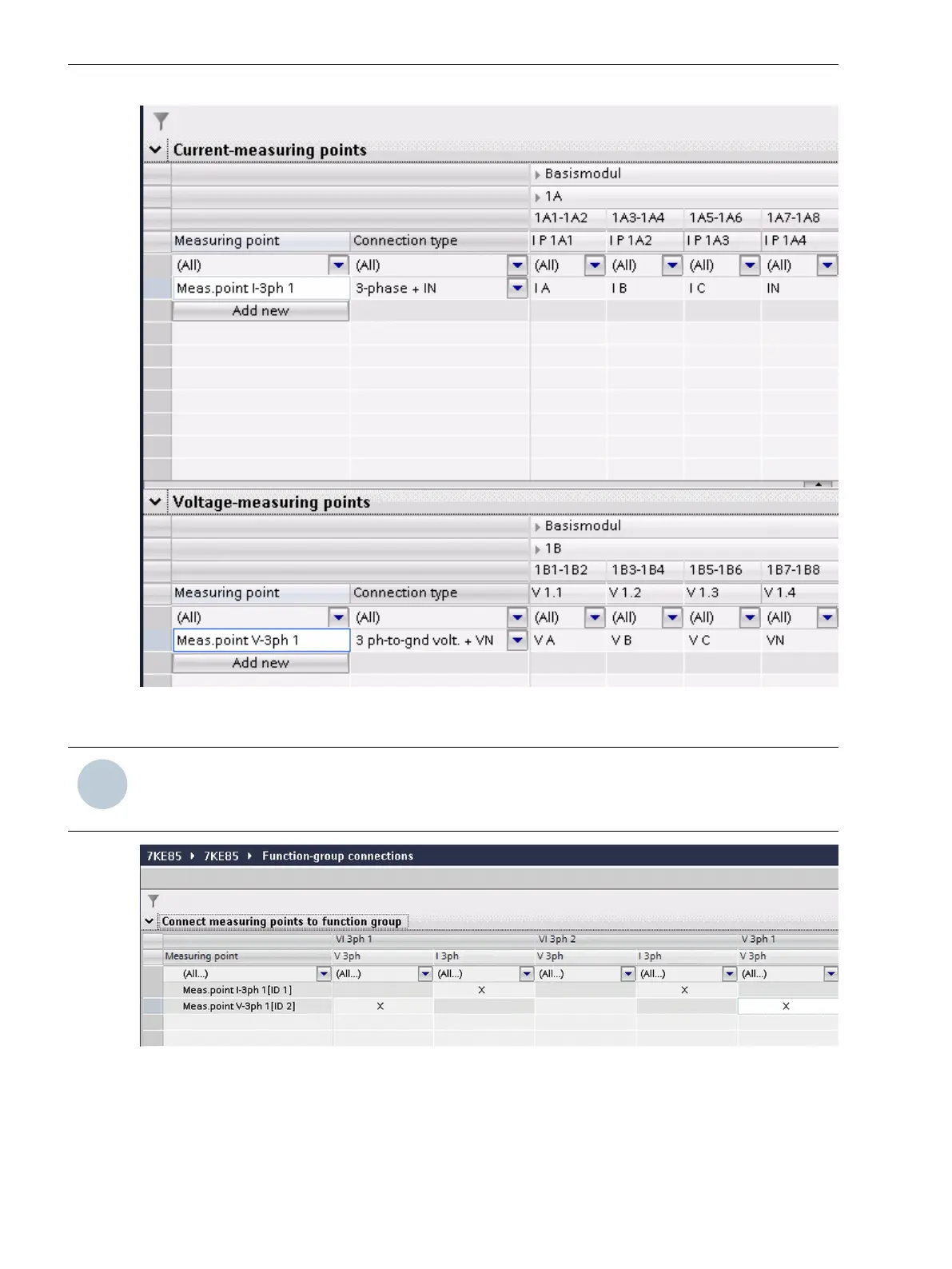

Figure 6-10
Assigning Measuring Points
i
i
NOTE
The current measuring points are optional within the Voltage-current 3-phase function group. If you do
not interconnect the current and power values, the current measuring points are not available.
[scfguive-130912-01.tif, 3, en_US]
Figure 6-11 Connecting Measuring Points to the Voltage-Current 3-Phase Function Group
Equipment Data
The rated voltage and rated current as well as the neutral-point treatment of the object or the equipment are
defined here. These data apply to all functions in the Voltage-current 3-phase function group.
Function-Group Types
6.3 Function-Group Type Voltage/current 3-Phase
148 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
