Siemens SIPROTEC 5 User Manual

[dwklatve-120124-01.tif, 1, en_US]

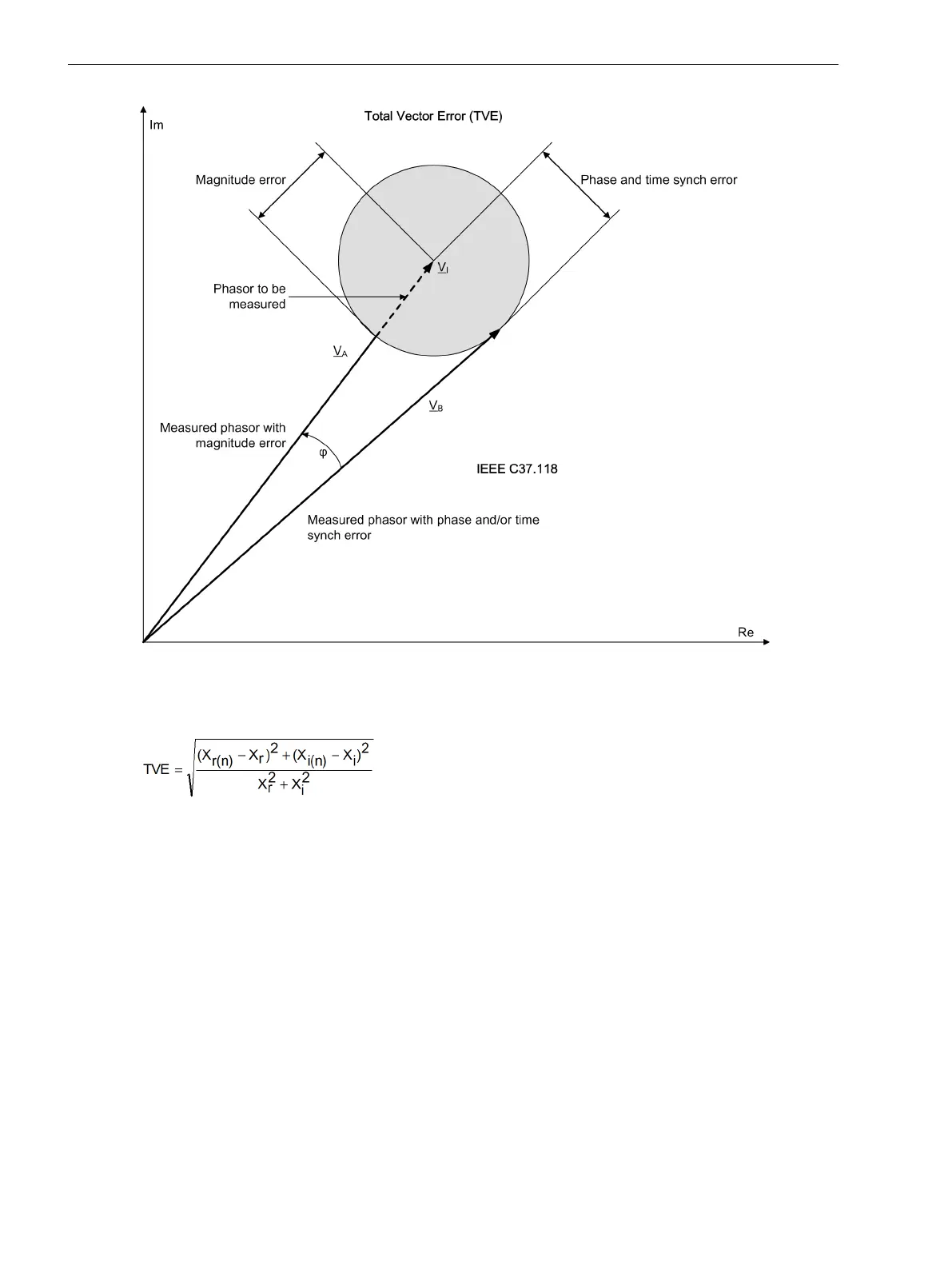

Figure 6-16
Representation of the Total Vector Error
The TVE is defined as follows:
[fo_utcphi-111011-01.tif, 1, --_--]
where:
•
X
r(n)
= Real part of measured signal
•
X
i(n)
= Imaginary part of measured signal
•
X
r
= Real part of input signal
•
X
i
= Imaginary part of input signal
Variables that influence the TVE are:
•
Amplitude errors
•
Phase errors
•
Synchronization accuracy (deviation from the UTC)
Synchronization accuracy is affected by a GPS timer and the precise correction of the time delay within the
GPS receiver module, as well as by the optimal setup of the GPS antenna.
Function-Group Types
6.4 Function-Group Type Phasor Measurement Unit (PMU)
156 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
