[scautcp1-220114-01-DE, 1, en_US]

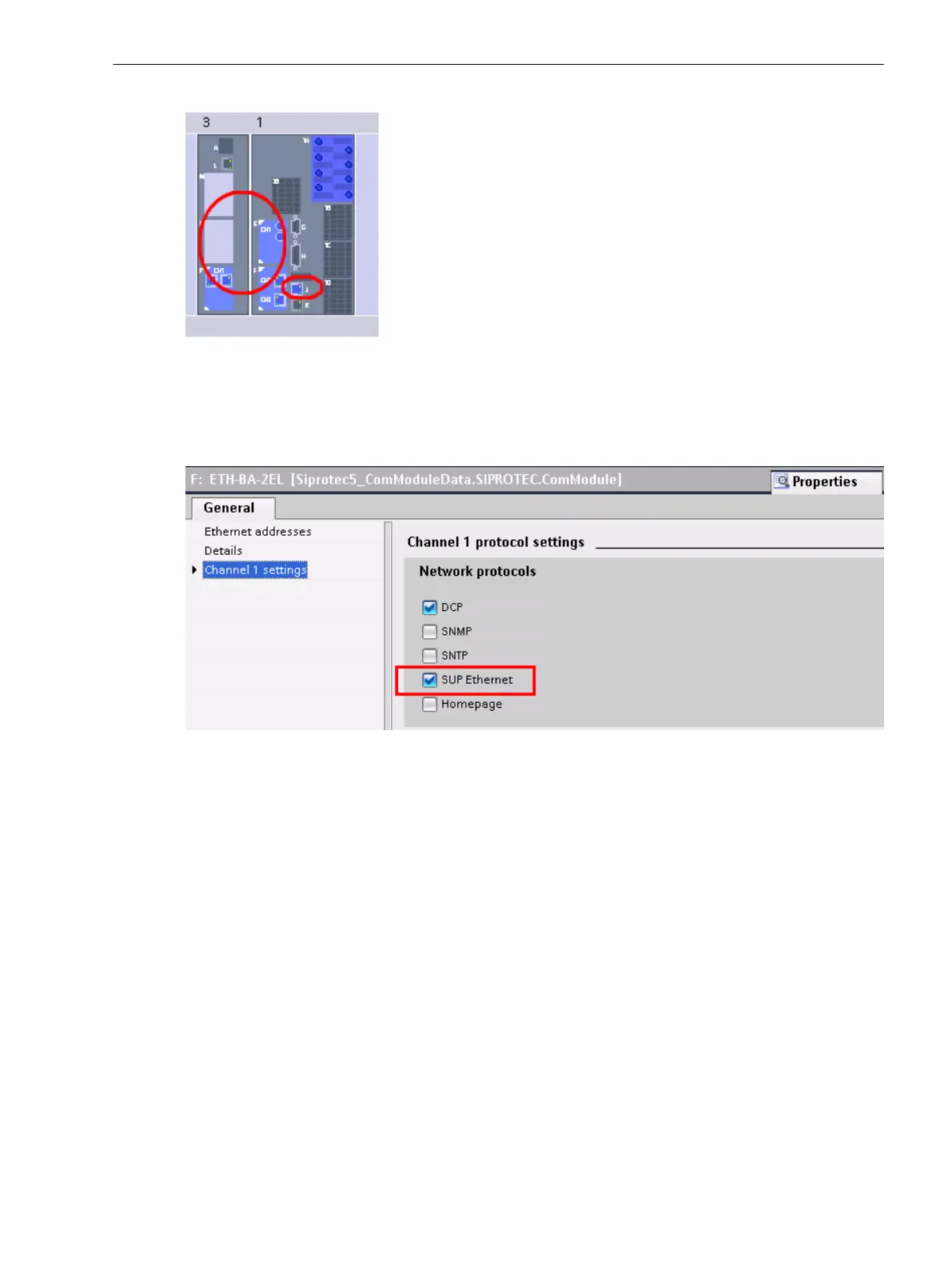

Figure 6-66 Inserting an Ethernet Module
Communication Settings
Activate the SUP Ethernet protocol for the Ethernet module.
[scautcp2-220114-01-DE, 1, en_US]
Figure 6-67 SUP Ethernet Protocol Activation
This protocol is also available for Port J of the integrated Ethernet interface of the base module (refer to
following figure).
Function-Group Types
6.5 Function-Group Type Analog Units
SIPROTEC 5, Fault Recorder, Manual 209
C53000-G5040-C018-5, Edition 11.2017
