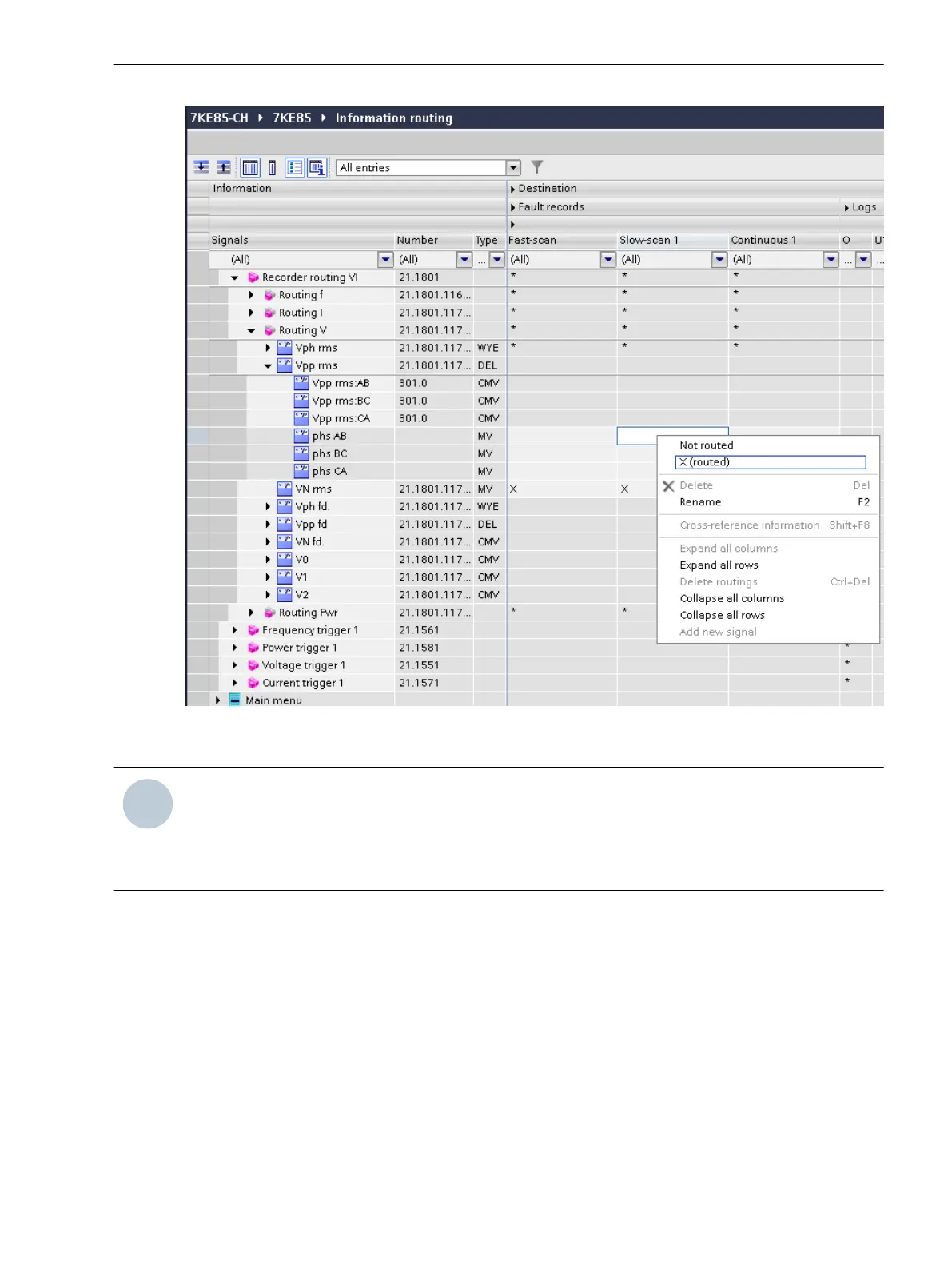

Figure 7-70
Routing Measured Values in the Information Routing
i
i
NOTE
The measured values under the Recorder routing V and Recorder Routing VI functions are optimized
specifically for recording. Preferably use these measured values for routing to the various recorders.
Operational measured values can also be recorded. However, this is not recommended because of the low
refresh rate for the 7KE85 fault recorder.
Frequency
Long-term supervision can be performed using the measurand Routing f:f.
You will find information about the average value, the refresh rate, and the recommended routing of the
frequency measurands in the following table.
Fault Recorder
7.6 Measurands and Recorder Routing Functions
SIPROTEC 5, Fault Recorder, Manual 349
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
