NOTE
When using the connection type 3-phase-to-phase voltage, the zero-sequence voltage cannot be detected.
[tvvolta6-260313-01.tif, 1, en_US]

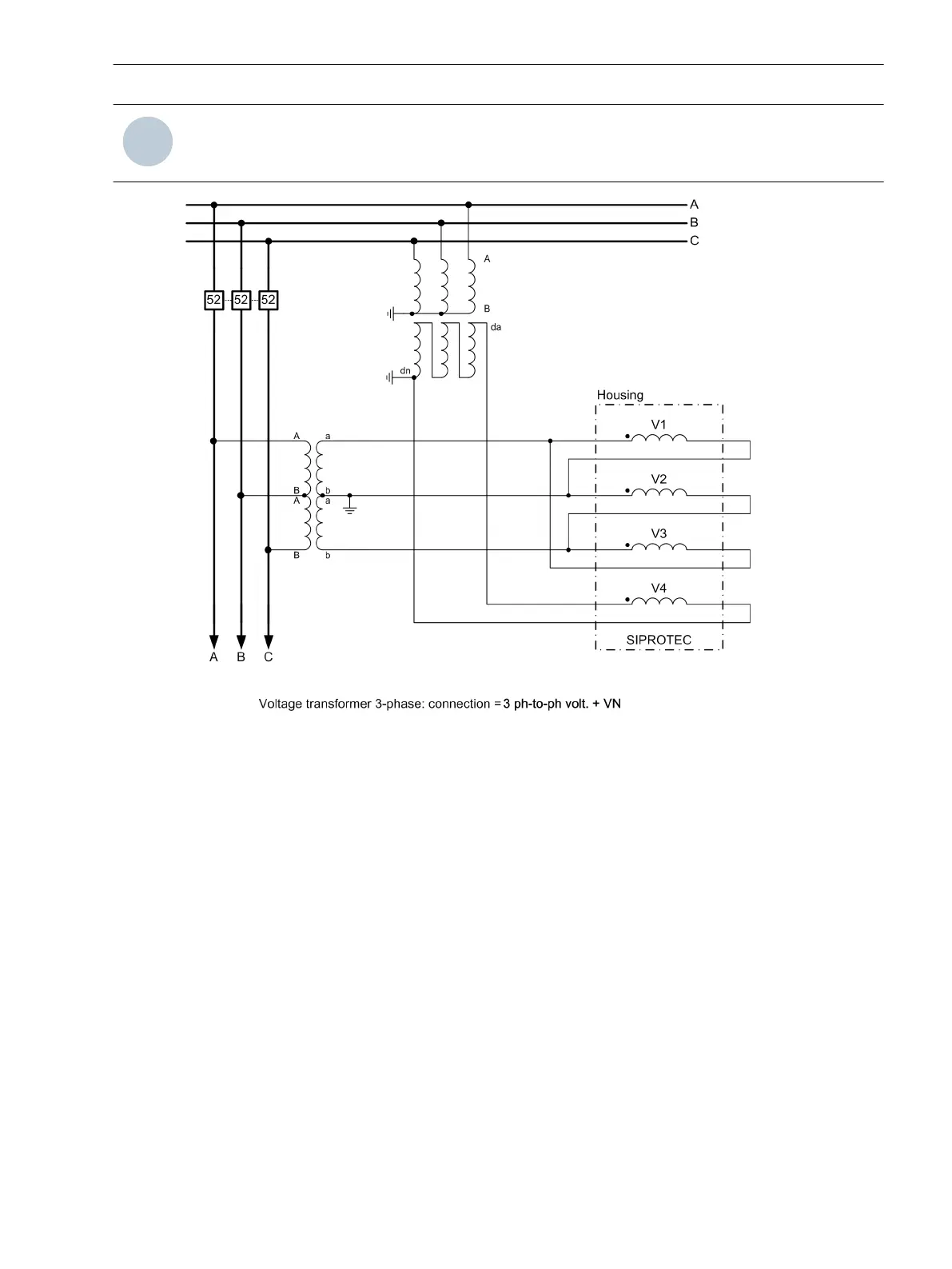

Figure A-15
Connection to V-Connected Voltage Transformer (Delta-Connected Device Input Transformer)
and Connection to the Broken-Delta Winding of a Busbar Voltage Transformer
