Siemens SIRIUS ACT 3SU1 User Manual

3SU14 modules
8.2 Mounting
SIRIUS ACT 3SU1 pushbuttons and signaling devices
System Manual, 08/2018, A5E03457306020A/RS-AK/010
201
8.2.1.3
Disassembling modules

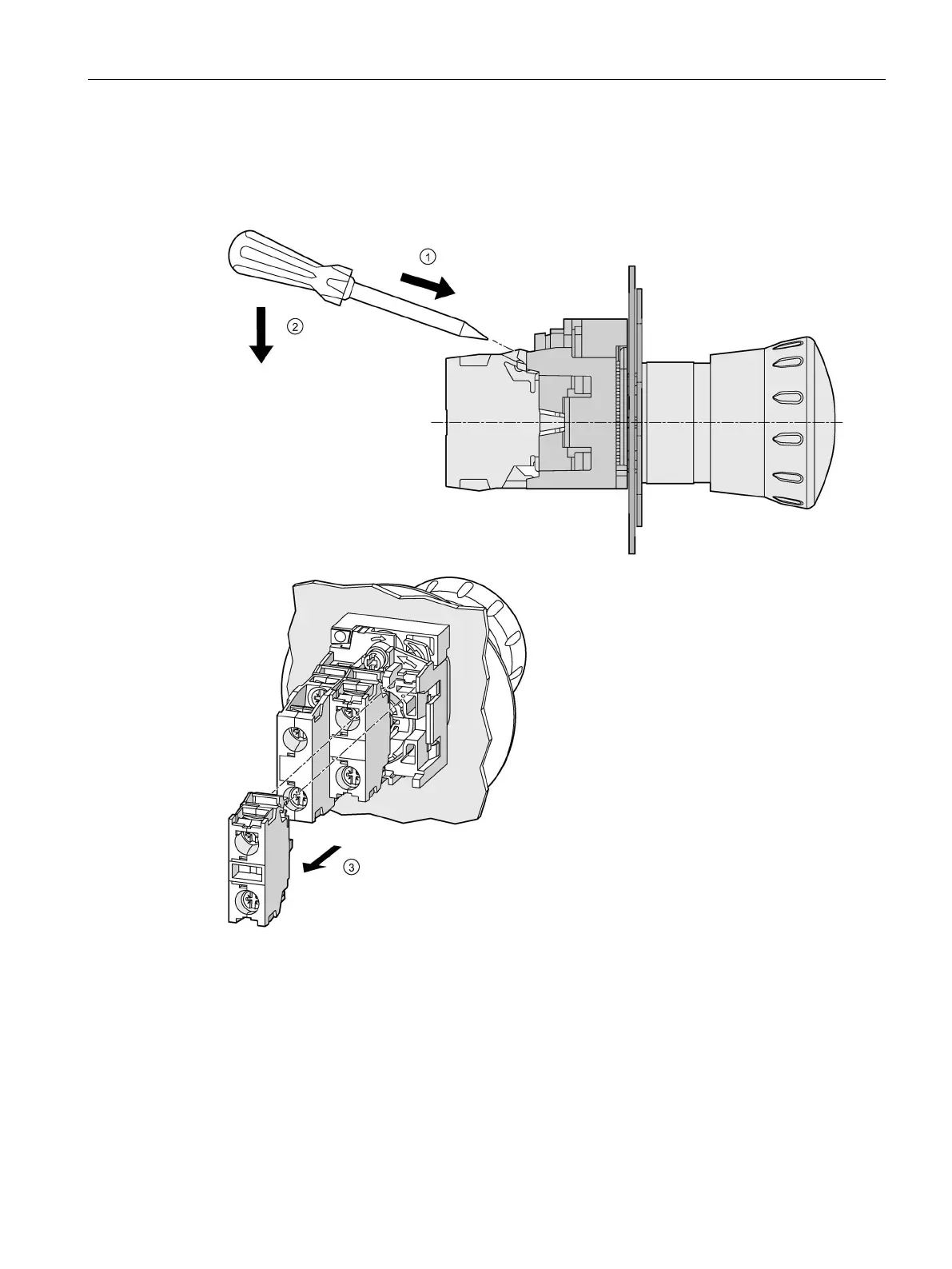

The disassembly steps are shown using the example of an EMERGENCY-STOP mushroom
pushbutton.
Procedure
1. Insert a screwdriver into the opening of the latches (broad snap hook) of the contact
modules or LED modules.
2. Press the screwdriver down to open the latches of the modules.
3. Remove the modules.
