AS-Interface 3SU14
11.6 Mounting and disassembly of the AS-Interface modules for front plate mounting
SIRIUS ACT 3SU1 pushbuttons and signaling devices
264 System Manual, 08/2018, A5E03457306020A/RS-AK/010

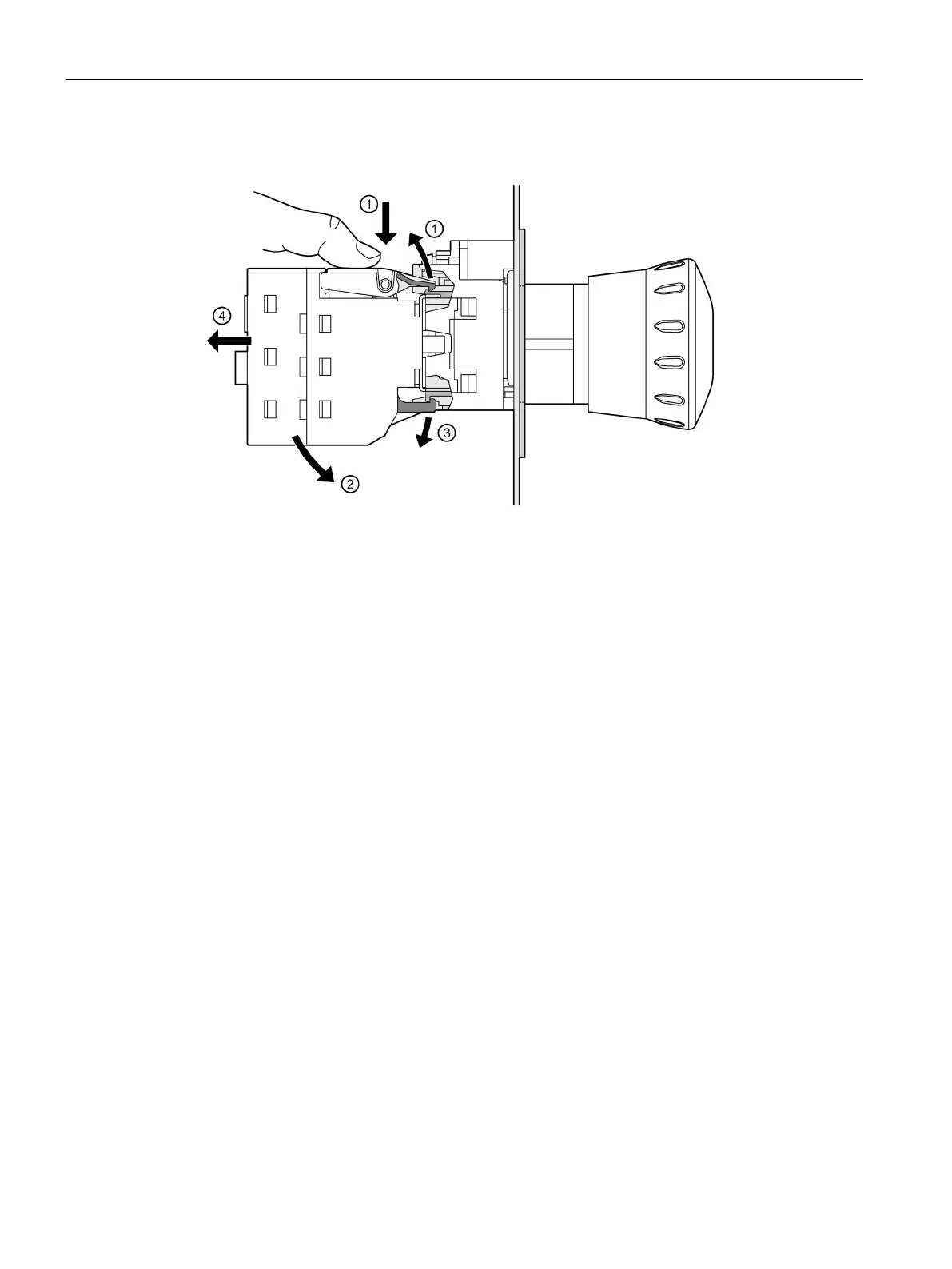

1. Press the lever of the AS-i module for front plate mounting down. The AS-i module is
unlatched.
2. Move the AS-i module down.
3. Unlatch the AS-i module.
4. Remove the AS-i module backwards from the holder.
