4 High-Level Navigation Menu Structure
The high-level navigation displays a hierarchy of menus used to setup, troubleshoot, and check
the status of the controller.
NOTE: The menu options displayed for the high-level navigation do not show a * for the
selected menu.
4.1 Main Menu
The MAIN MENU consists of the main options for the C4 controller.

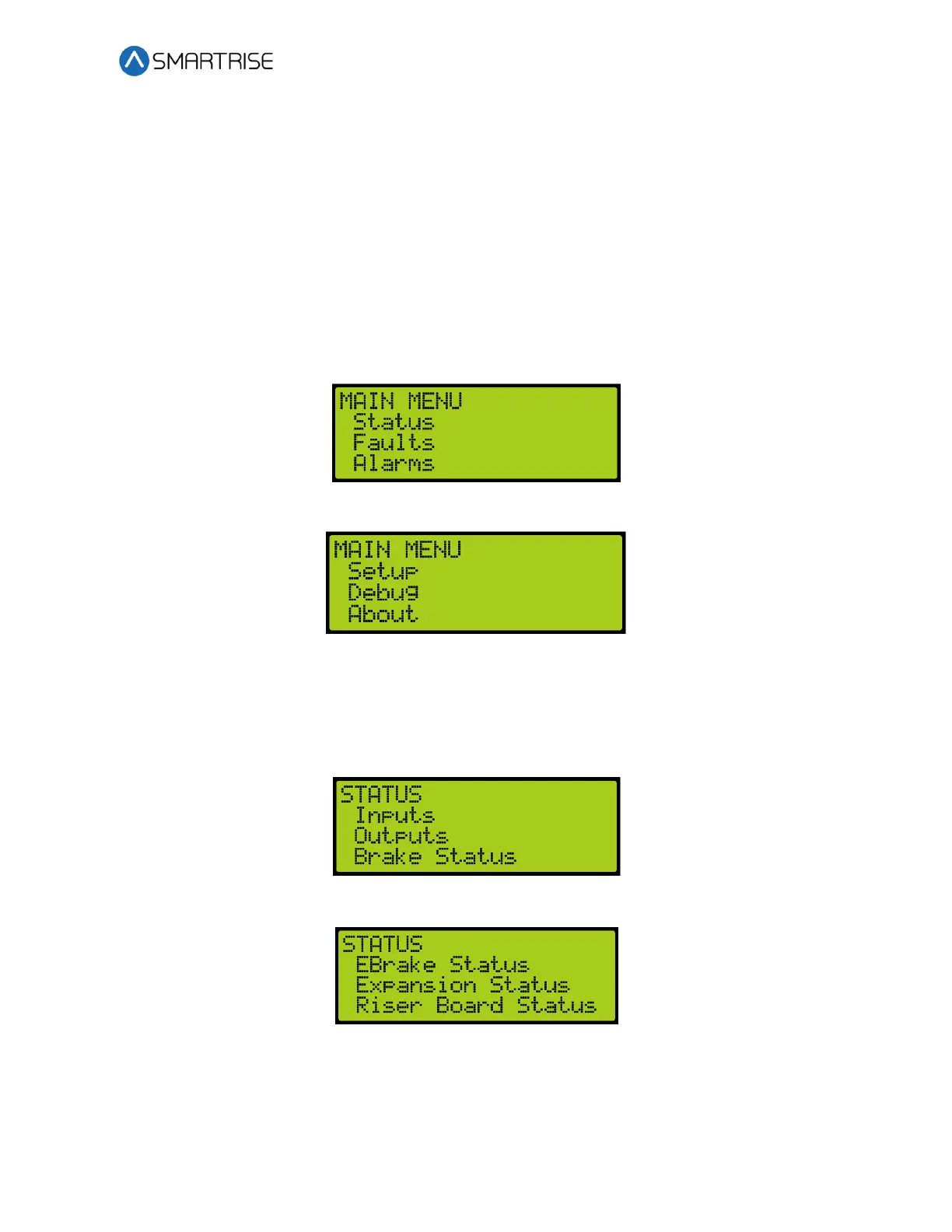

Figure 43: MAIN MENU – Status, Faults, Alarms
Figure 44: MAIN MENU – Setup, Debug, About
4.2 Status
The STATUS menus display the current status of various functions.
Figure 45: STATUS Menu – Inputs, Outputs, Brake Status
Figure 46: STATUS Menu – EBrake Status, Expansion Status, Riser Board Status
To Next Page
