C4 User Manual
Page 290 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
33.3.3.1 Main or Alternate
The car travels to the main landing when smoke has been detected. If configured and the
smoke is on that floor, the car travels to an alternated landing.
The following procedure describes if the car travels to the main or alternate designated landing
when smoke has been detected.
1. Navigate to MAIN MENU | SETUP | FIRE. See Figure 57.
2. From the FIRE SERVICE menu, scroll and select Main Smoke.

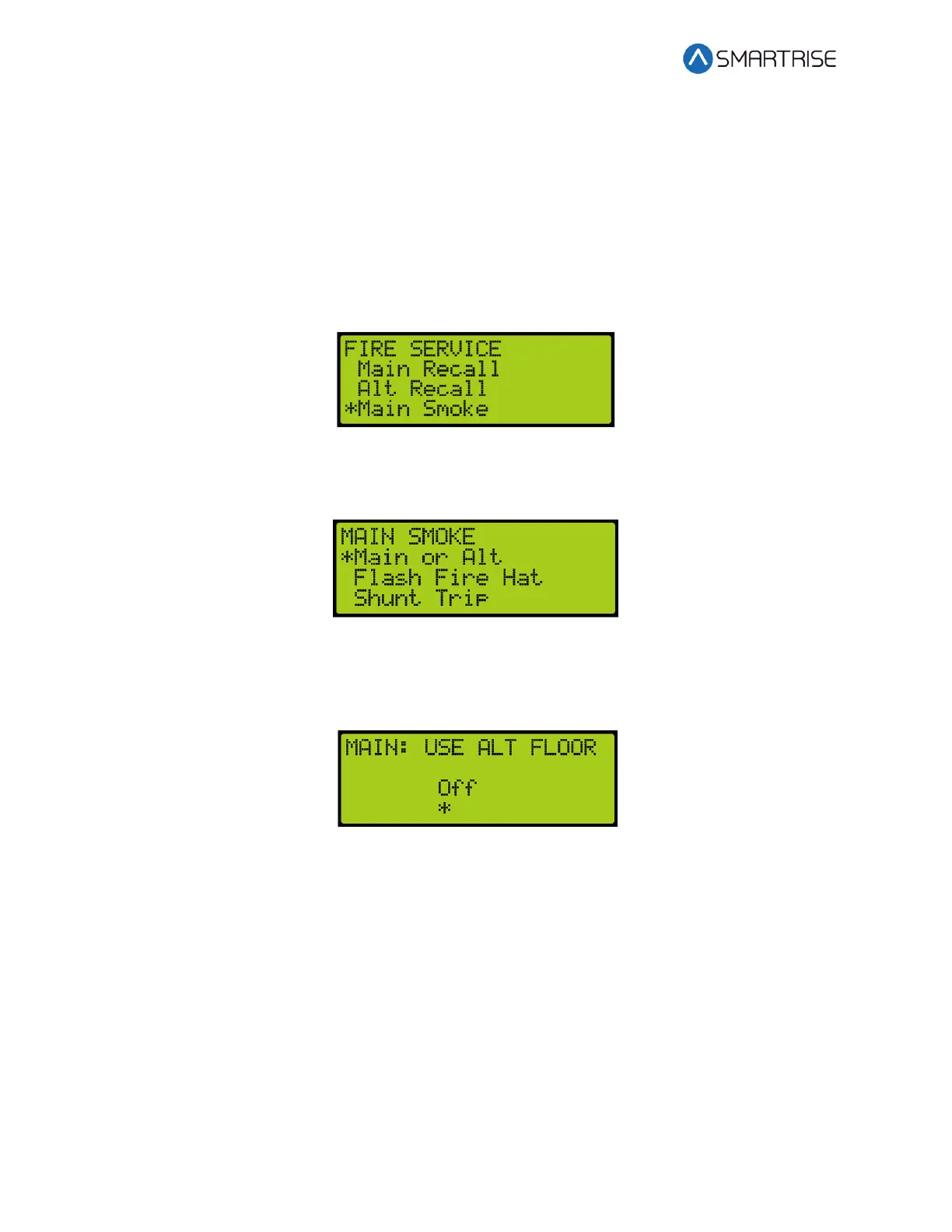

Figure 556: FIRE SERVICE Menu – Main Smoke
3. From the MAIN SMOKE menu, scroll and select Main or Alt.
Figure 557: MAIN SMOKE Menu – Main or Alt
4. From the MAIN: USE ALT FLOOR menu, scroll and select if the alternate floor is
configured for main smoke.
Figure 558: MAIN: USE ALT FLOOR Menu
5. Scroll right and press Save.
33.3.3.2 Flash Fire Hat
If the fire flash hat been enabled during main smoke, a fire hat symbol on the panel flashes
when smoke has been detected.
The following procedure describes how to enable the flash fire hat.
1. Navigate to MAIN MENU | SETUP | FIRE. See Figure 57.
2. From the FIRE SERVICE menu, scroll and select Main Smoke. See Figure 556.
