17.8 Dispatching Timer Status
The dispatching timer status displays the configured amount of time the car has to respond to
hall calls before being taken out of the group.
The following procedure describes how to view the dispatching timer status.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. From the Car Data Overview Status (see Figure 352), press the right button.
3. From the Hall Mask Status (see Figure 353), press the right button.
4. From the Front Opening Map Status (see Figure 354), press the right button.
5. From the Rear Opening Map Status (see Figure 355), press the right button.
6. From the Front Security Map Status (see Figure 356), press the right button.
7. From the Rear Security Map Status (see Figure 357), press the right button.
8. From the Linked Hall Mask Status (see Figure 358), press the right button.
9. From the Front Hall Security Map Status (see Figure 359), press the right button.
10. From the Rear Hall Security Map Status (see Figure 360), press the right button.
11. From the Front and Rear Hall Security Mask Status (see Figure 361), press the right
button.
12. View the Dispatching Timers Status.

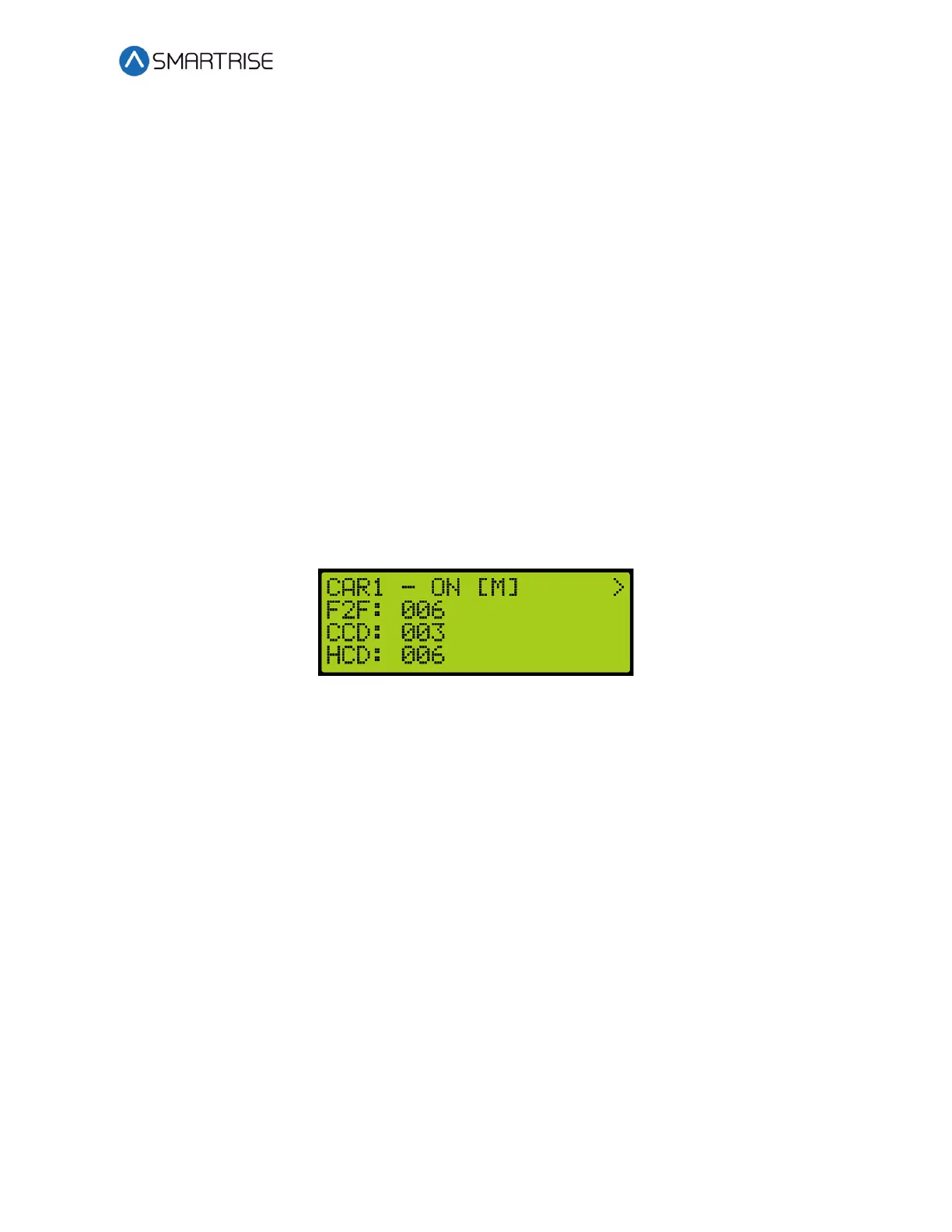

Figure 362: Dispatching Timers Status
The Dispatching Timers Status menu displays the following:
• F2F: The car’s estimated floor to floor (worst-case) time. Auto generated based on
Normal Profile S-Curve settings. See section 9.1.1 Adjusting S-Curve Profile.
• CCD: The period the doors remain open when responding to car calls. See section 16.2
Door Dwell Timer.
• HCD: The period the doors remain open when responding to hall calls. See section 16.3
Hall Dwell Timer.
17.9 VIP Flags
The VIP flags define the status of the VIP Mode of the car within the group.
The following procedure describes how to view the status of VIP.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. From the Car Data Overview Status (see Figure 352), press the right button.
3. From the Hall Mask Status (see Figure 353), press the right button.
4. From the Front Opening Map Status (see Figure 354), press the right button.
5. From the Rear Opening Map Status (see Figure 355), press the right button.
