4. From the BRAKE PICK SWITCH NC menu, scroll and select On.

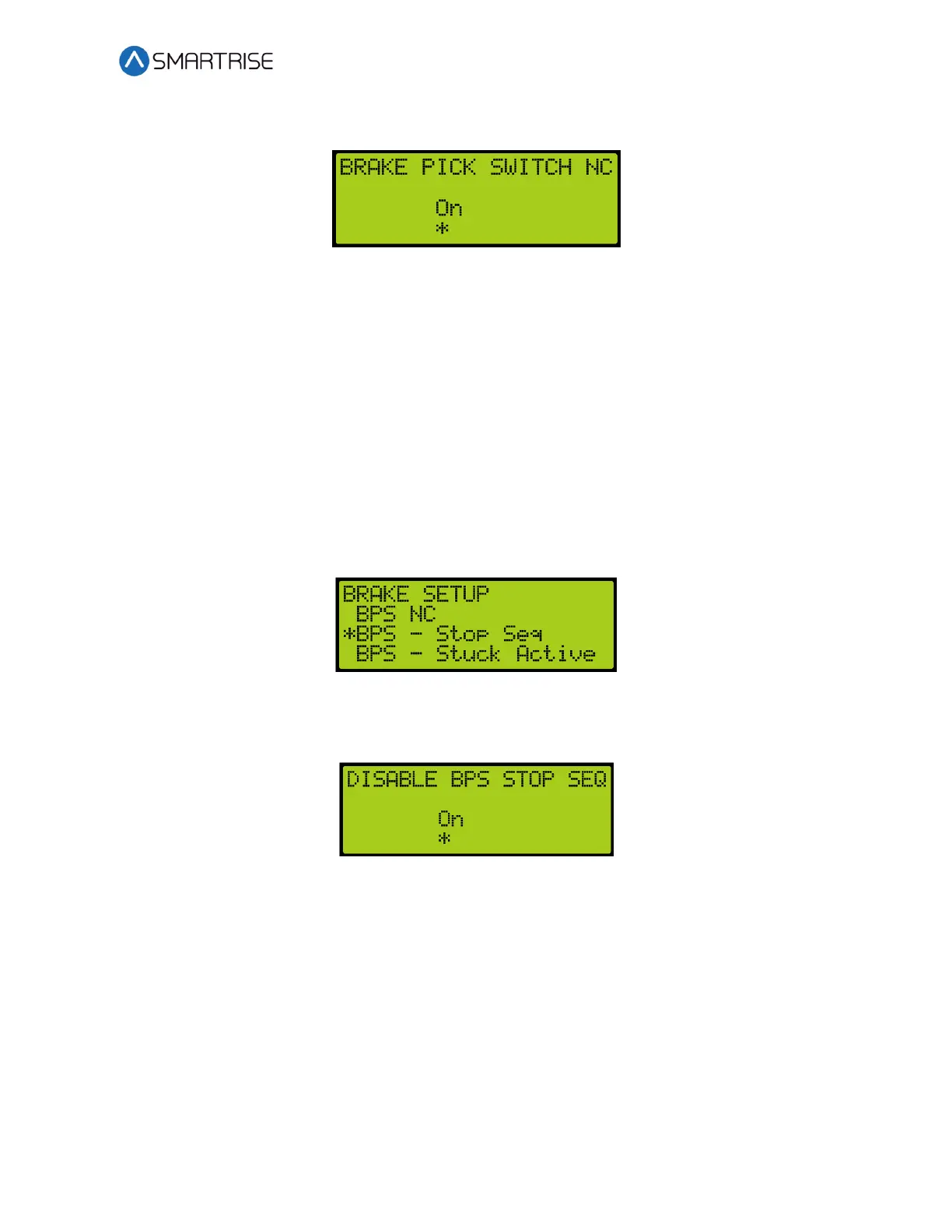

Figure 101: BRAKE PICK SWITCH NC Menu
5. Scroll right and press Save.
6.9 BPS-Stop Sequence
The BPS Stop Sequence monitors the primary brakes motion sequence operation. The
monitoring system can be enabled or disabled.
The following instructions describes how to disable the BPS Stop Sequence.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary. See Figure 77.
3. From the BRAKE SETUP menu, scroll and select BPS – Stop Sequence.
Figure 102: (Primary) BRAKE SETUP Menu – BPS – Stop Sequence
4. From the DISABLE BPS STOP SEQUENCE MENU, scroll and select On.
Figure 103: DISABLE BPS STOP SEQUENCE Menu
5. Scroll right and press Save.
6.10 BPS-Stuck Active
The BPS Stuck Active checks if the BPS switch is constantly picked during a run.
The following procedure describes how to enable monitoring to see if the BPS is stuck when
active.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
