6.3 Relevel Voltage
The relevel voltage is set to where the brake slightly lifts which allows for the sheave to turn
during the releveling process.
The following procedure describes how to set the relevel voltage.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary or Secondary Setup. See Figure
77.
3. From the BRAKE or SECONDARY BRAKE SETUP menu, scroll and select Relevel Voltage.

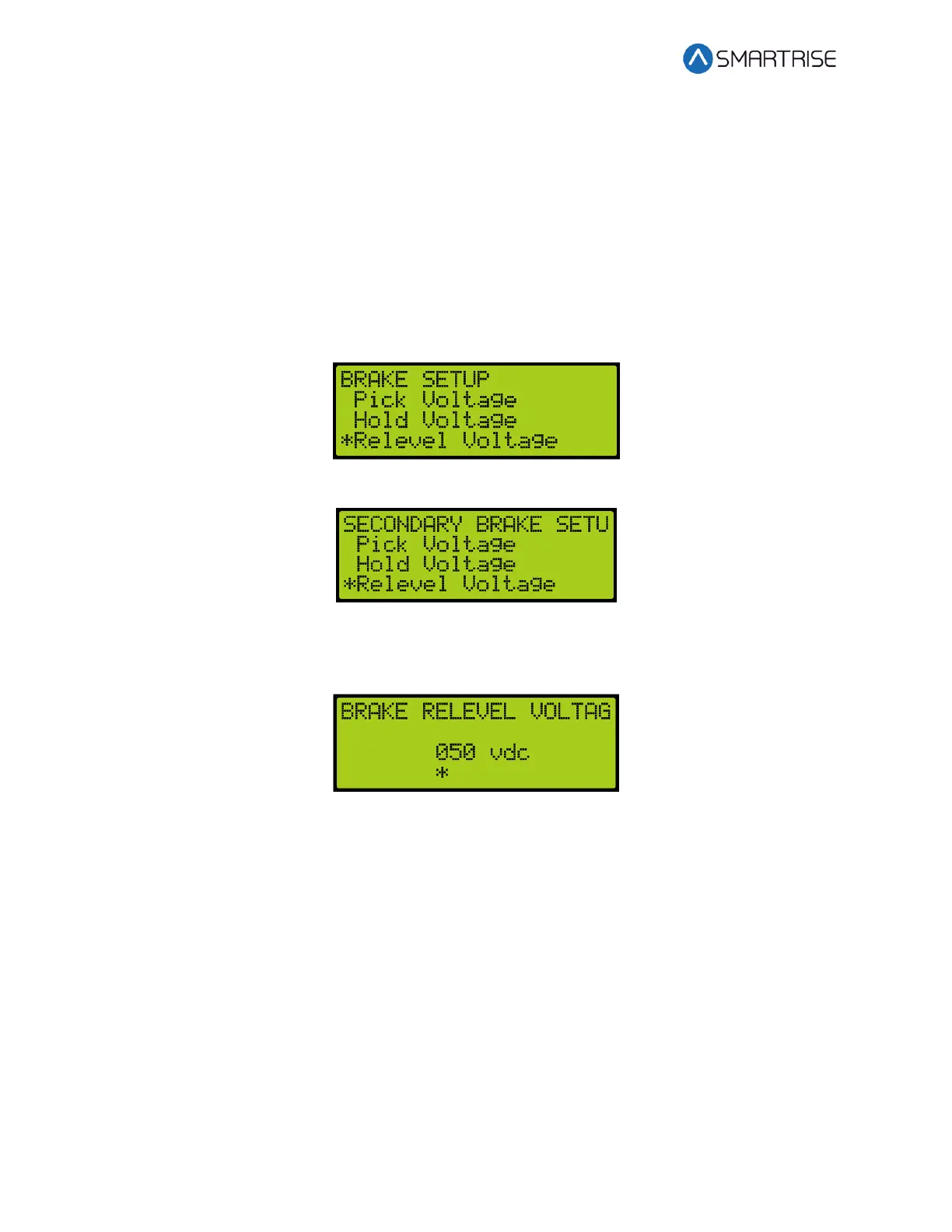

Figure 84: (Primary) BRAKE SETUP Menu – Relevel Voltage
Figure 85: SECONDARY BRAKE SETUP Menu – Relevel Voltage
4. From the BRAKE RELEVEL VOLTAGE menu, enter the relevel voltage setting.
Figure 86: BRAKE RELEVEL VOLTAGE Menu
5. Scroll right and press Save.
6.4 Pick Time
The pick time is the hold time for the pick voltage before transitioning to hold voltage.
The following procedure describes how to set the pick time.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary or Secondary Setup. See Figure
77.
