C4 User Manual
Page 296 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
3. From the HOISTWAY SMOKE menu, scroll and select Shunt Trip.

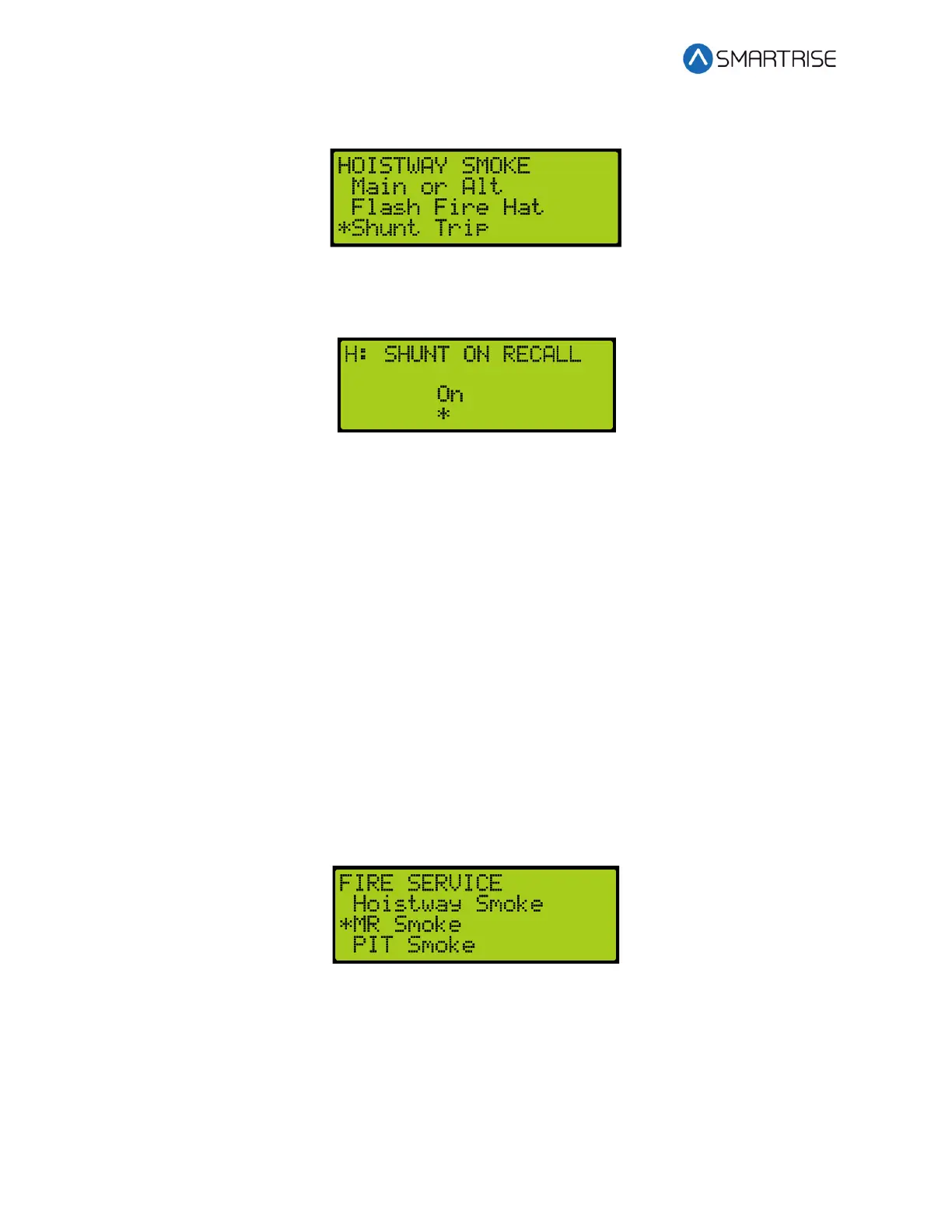

Figure 575: HOISTWAY SMOKE Menu – Shunt Trip
4. From the H: SHUNT ON RECALL menu, scroll and select On.
Figure 576: H: SHUNT ON RECALL Menu
5. Scroll right and press Save.
33.3.6 MR Smoke
The MR smoke is where the car is recalled to a designated landing when smoke has been
detected in the machine room.
33.3.6.1 Main or Alternate
The car travels to the main landing when smoke has been detected. If configured and the
smoke is on that floor, the car travels to an alternated landing.
The following procedure describes if the car travels to the main or alternate designated landing
when smoke has been detected.
1. Navigate to MAIN MENU | SETUP | FIRE. See Figure 57.
2. From the FIRE SERVICE menu, scroll and select MR Smoke.
Figure 577: FIRE SERVICE Menu – MR Smoke
