10 SmartPositioning Landing System
The SmartPositioning Landing System tracks elevator speed and position with high precision
and superior reliability. It incorporates a contact-less dual infrared sensor system, QR Code tape
and a SmartClip consolidated mounting system that reduces installation time and maintenance.
The system increases performance and reliability. See Figure 4 and Figure 5 for the
SmartPositioning Landing System.
The SmartPositioning Landing System consists of:
• Coded Tape
• Sensor Array Assembly
• Tape Clip Assembly
• Top Tape Mount Assembly
• Bottom Tape Mount Assembly
• Emergency Tape Break Switch Assembly

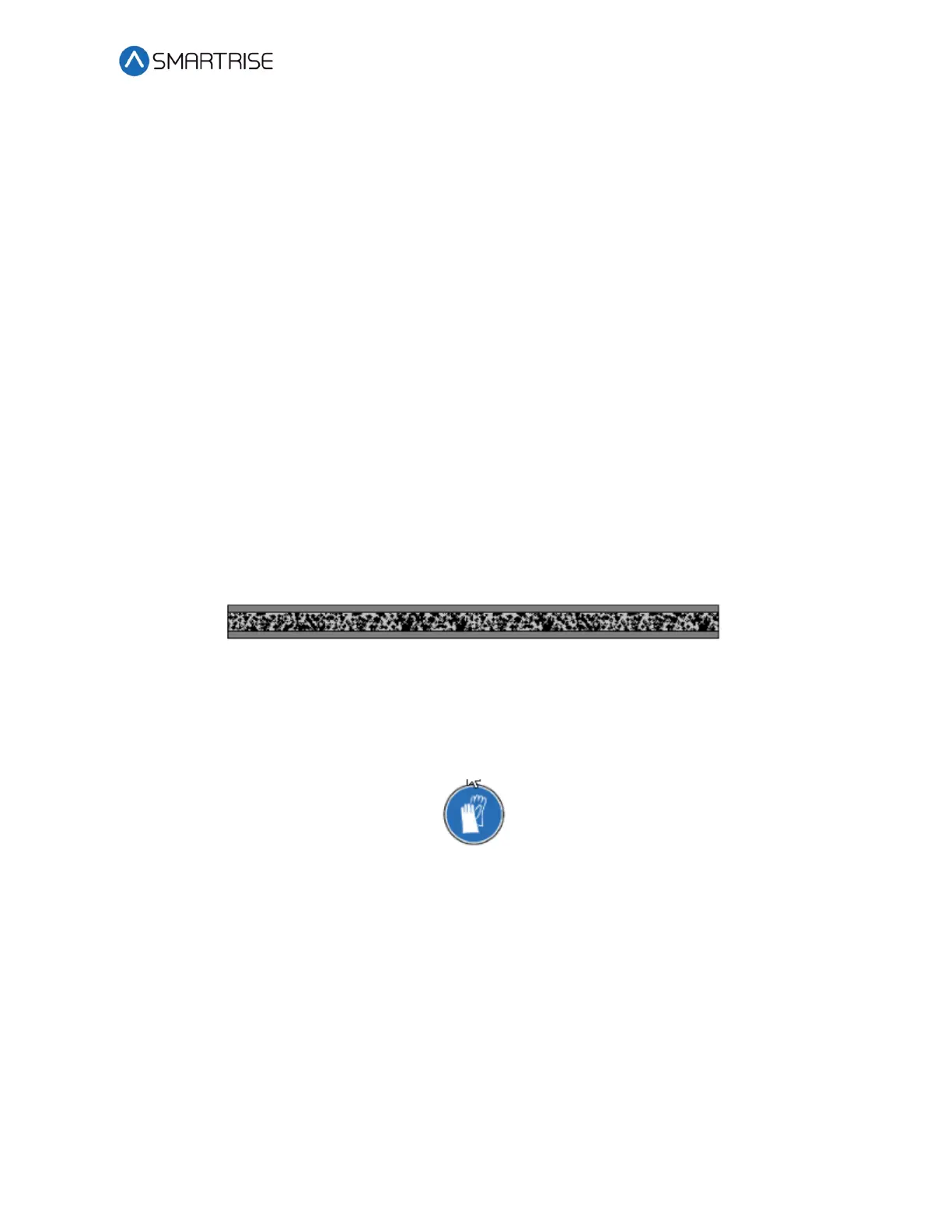

10.1 Coded Tape
The tape is a special coded tape that provides the absolute positioning feedback to the CEDES
camera.
Figure 157: Coded Tape
WARNING
THE TAPE EDGE IS SHARP. CUT-PROOF GLOVES MUST BE WORN WHILE HANDLING THE TAPE.
Figure 158: Gloves Required
