C4 User Manual
Page 140 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
3. From the ETS ODL menu, enter the ETS debounce limit.

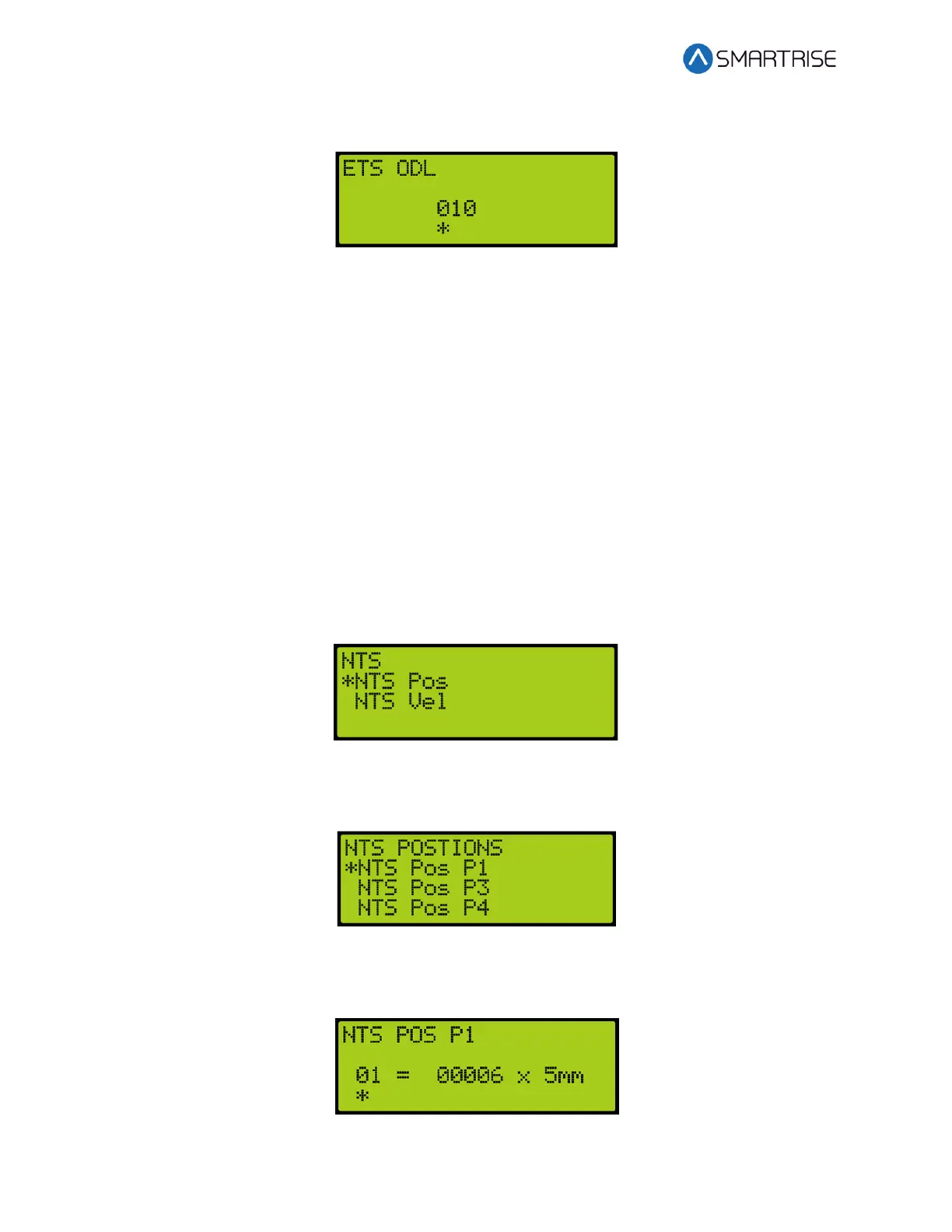

Figure 196: ETS ODL Menu
4. Scroll right and press Save.
12.3 NTS POS
The controller calculates 8 NTS points for each profile based on pattern data. P1 is the normal
profile, P3 is emergency profile, and P4 is short profile. The menu displays the points as an
offset from the terminal floor, the larger the number, the further from the terminal floor the
point is. P1-01 is the closes point to the terminal landing and P1-08 is the furthest. The values
can be modified for testing reasons but are automatically recalculated on board reset and S-
Curve parameter updates.
The following procedure describes how to view the NTS position for each learned point.
1. Navigate to MAIN MENU | SETUP | NTS. See Figure 58.
2. From the NTS menu, scroll and select NTS Pos.
Figure 197: NTS Menu – NTS Pos
3. From the NTS POSITIONS menu, scroll and select the NTS profile position being set.
Figure 198: NTS POSITIONS Menu – NTS Pos P1
4. From the NTS POS P1 menu, set the NTS position.
Figure 199: NTS POS P1 Menu
