C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 75
4.4 Alarms
The ALARMS menu displays a list of active and inactive alarms.

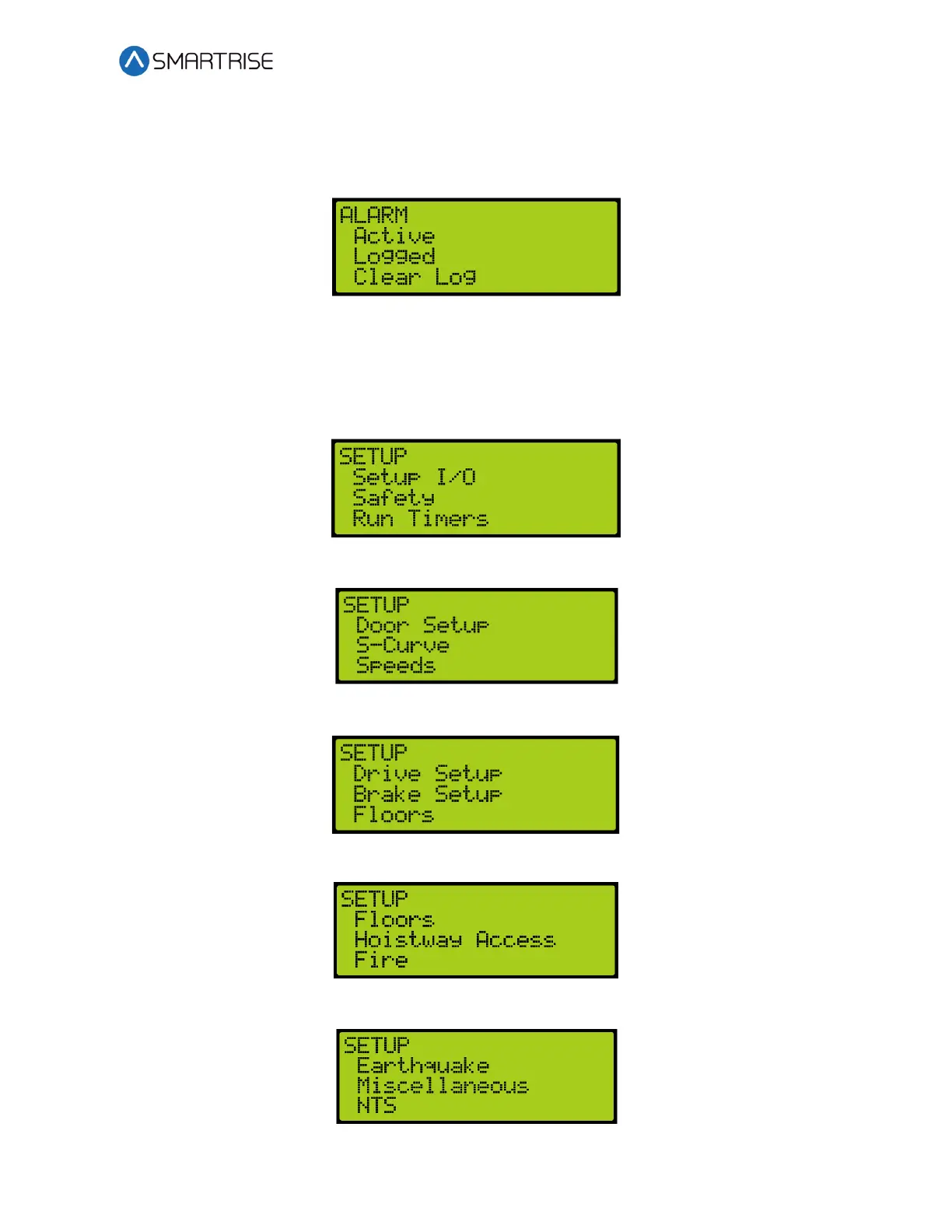

Figure 53: ALARMS Menu – Active, Logged, Clear Log
4.5 Setup
The SETUP menu consists of menus to allow for system configuration.
Figure 54: SETUP MENU – Setup I/O, Safety, Run Timers
Figure 55: SETUP MENU – Door Setup, S-Curve, Speeds
Figure 56: SETUP MENU – Drive Setup, Brake Setup, Floors
Figure 57: SETUP MENU – Hoistway Access, Fire
Figure 58: SETUP MENU – Earthquake, Miscellaneous, NTS
