3. From the HALL SECURITY MASK menu, scroll and turn ON the Hall board functions that
need to be secured.

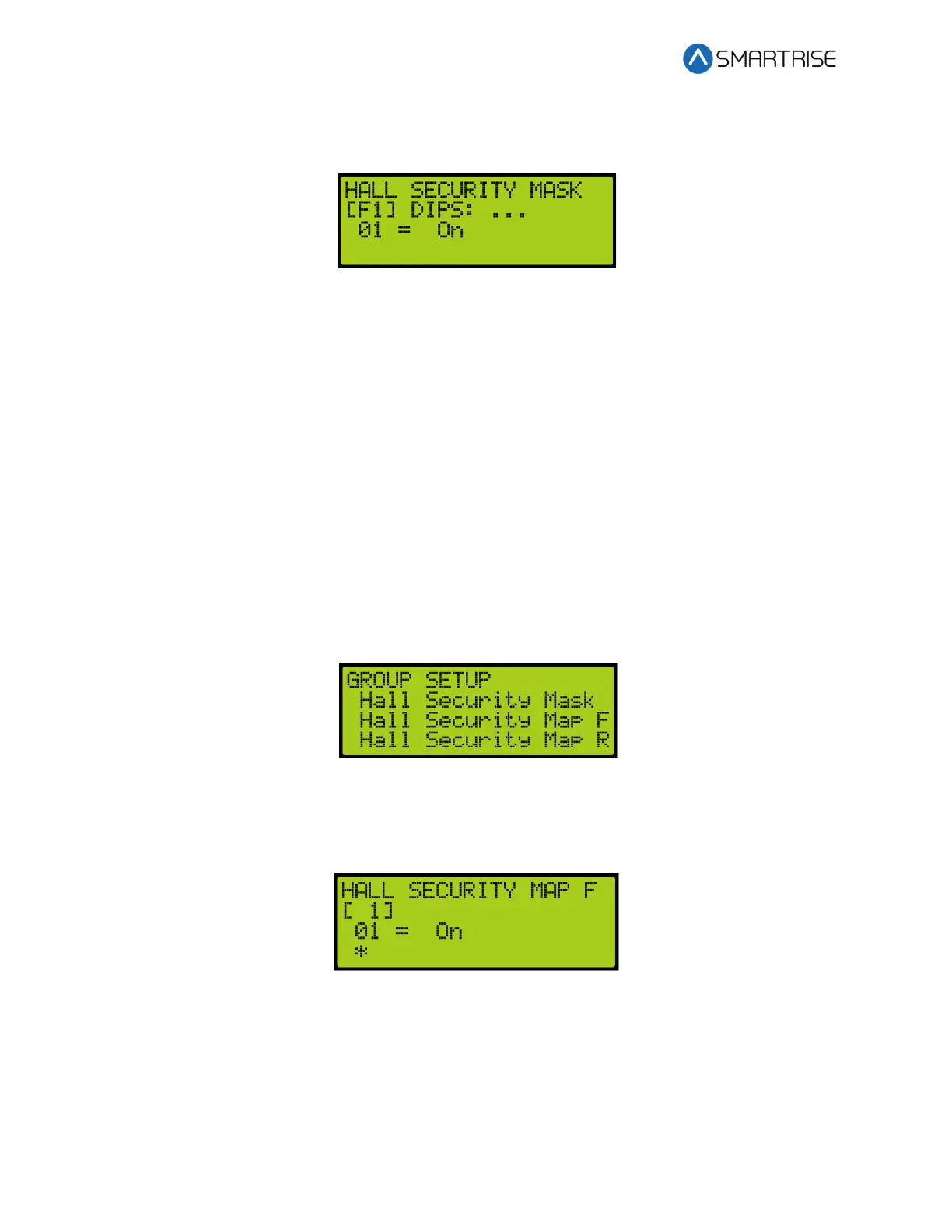

Figure 374: HALL SECURITY MASK Menu
4. Scroll right and press Save.
18.5 Hall Security Map
The hall security map marks the landings that require hall security contacts. The configuration
of the master group car (the car with the lowest group car ID) is used. However, all cars should
share the same hall call security configuration parameters in case the master group car is taken
offline. The front hall security map parameters are located under address 16-0940 – 16-0945
and the rear hall security map parameters are located under address 16-1035 – 16-1040. For
the list of parameters, see the C4 Parameter List.
The following procedure describes how to set hall security map.
1. Navigate to MAIN MENU | SETUP | GROUP SETUP. See Figure 60.
2. From the GROUP SETUP menu, scroll and select Hall Security Map (Front or Rear).
Figure 375: GROUP SETUP Menu – Hall Security Map (Front or Rear)
3. From the HALL SECURITY MAP menu, scroll and select the front or rear landings that
require security access. Setting the landing to ON enables security for that landing.
Figure 376: HALL SECURITY MAP FRONT Menu
To Next Page
