C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 271
3. From the SFP DL menu, enter the SFP debounce limit.

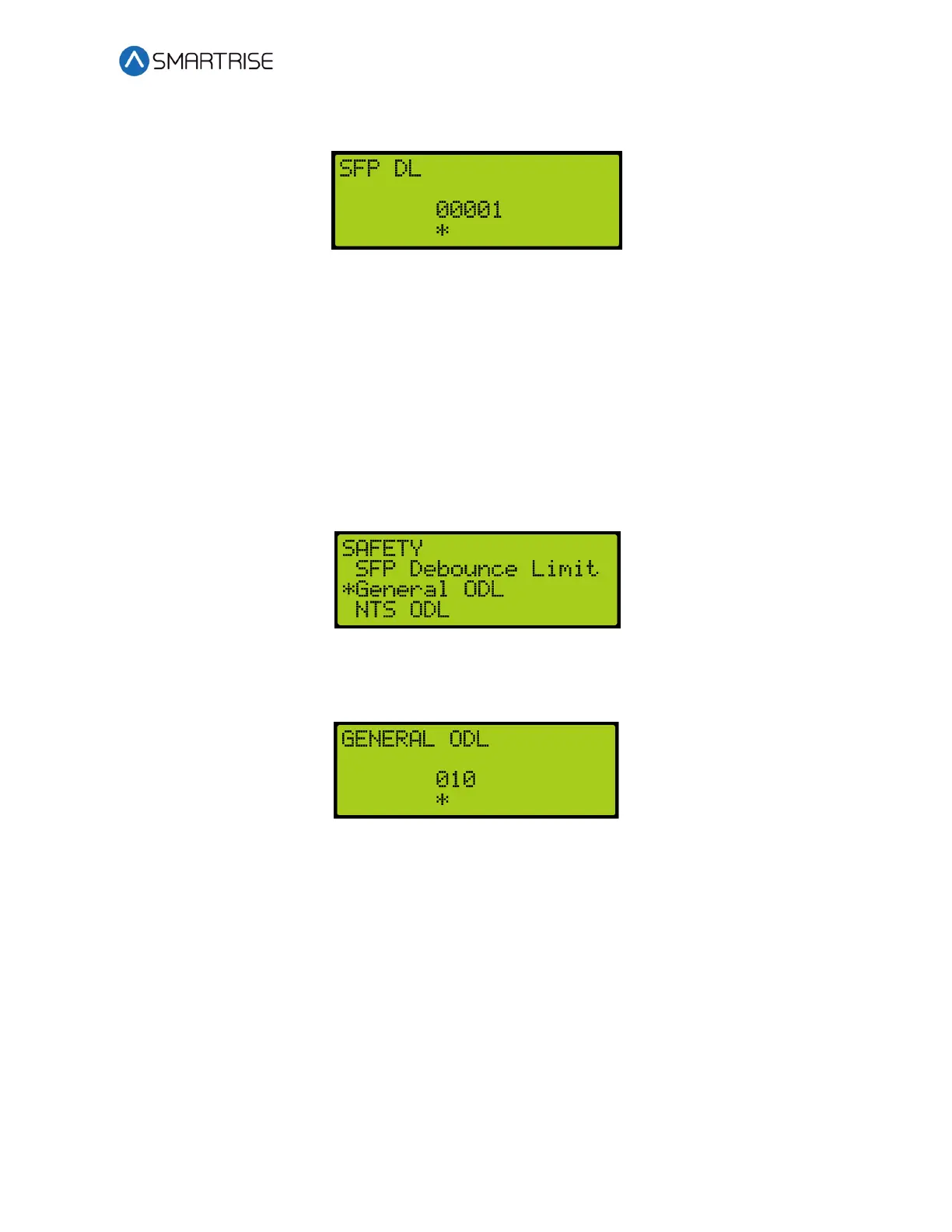

Figure 512: SFP DL Menu
4. Scroll right and press Save.
32.7 General ODL
The general ODL sets the distance for miscellaneous limits.
The following is an example of setting up the general ODL.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select General ODL.
Figure 513: SAFETY Menu – General ODL
3. From the GENERAL ODL menu, enter the general debounce limit.
Figure 514: GENERAL ODL Menu
4. Scroll right and press Save.
32.8 Construction ODL
Construction speed is the speed the car travels while in construction mode. When the speed of
the car is greater than the normal construction speed, a construction overspeed fault occurs.
The debounce limit is set to give the brakes time to slow down the car to the maximum normal
inspection speed or below. If the speed of the car is still greater than the normal construction
speed, a fault occurs.
The following is an example of setting up the Const ODL.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
