C4 User Manual
Page 80 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
4. From the ENABLE SECONDARY BRAKE menu, scroll and select On to enable the
secondary brake.

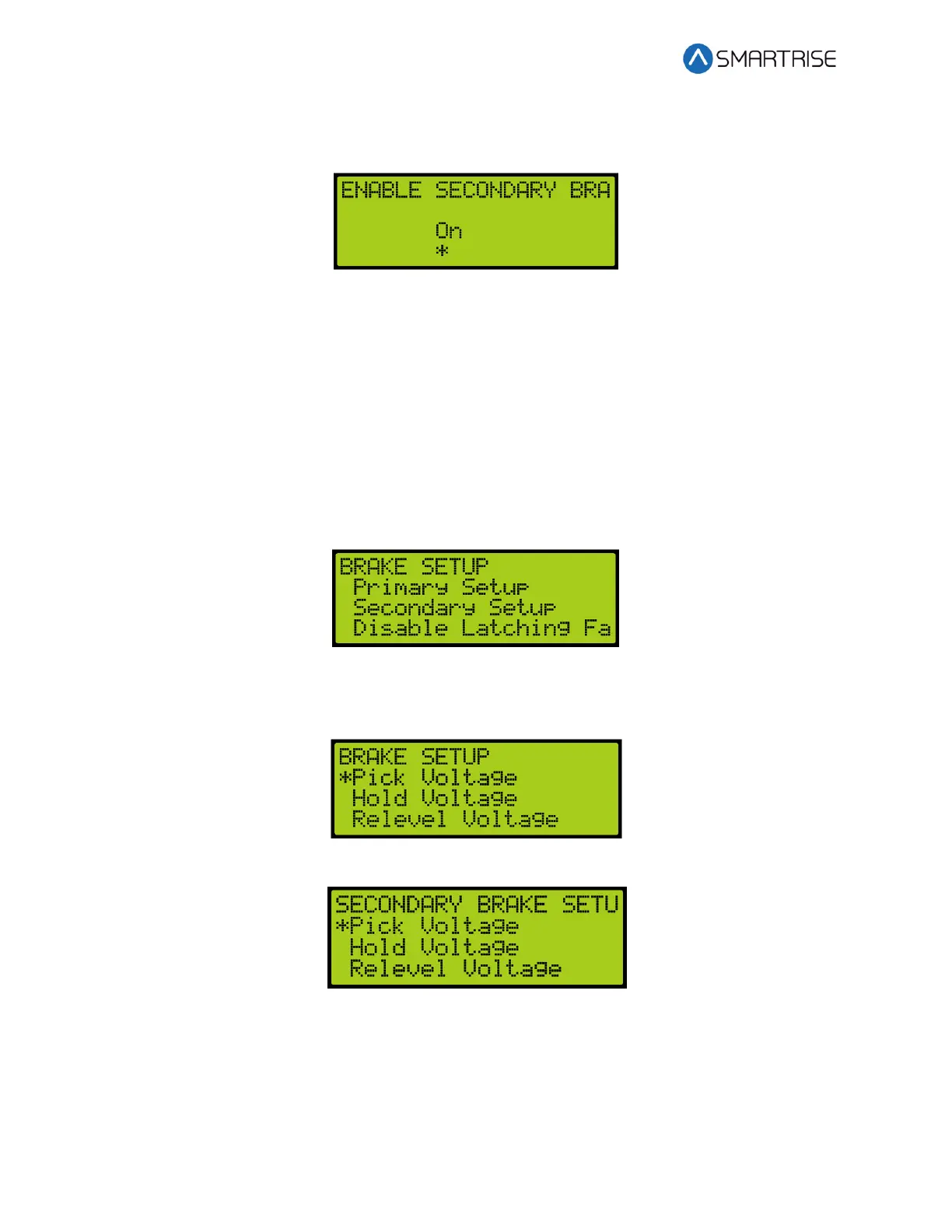

Figure 76: ENABLE SECONDARY Menu
5. Scroll right and press Save.
6.1 Pick Voltage
The pick voltage is the set voltage at which the brakes are released.
The following procedure describes how to set the pick voltage.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary or Secondary Setup.
Figure 77: BRAKE SETUP Menu – Primary or Secondary Setup
3. From the BRAKE or SECONDARY BRAKE SETUP menu, scroll and select Pick Voltage.
Figure 78: (Primary) BRAKE SETUP Menu – Pick Voltage
Figure 79: SECONDARY BRAKE SETUP Menu – Pick Voltage
