C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 7
2.1 MR Board SR3032
The MR board is the main interface in the controller.

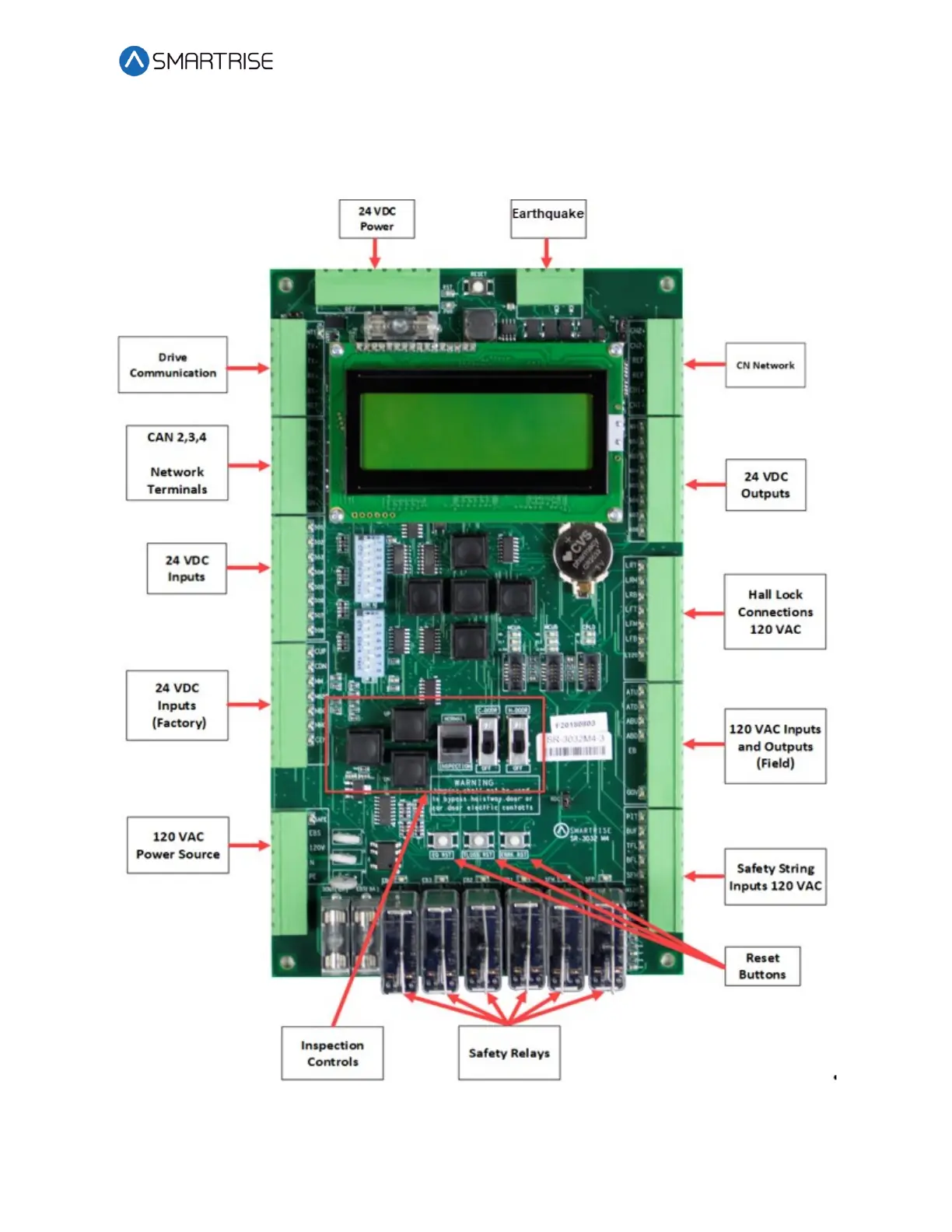

Figure 7: MR Board SR3032
