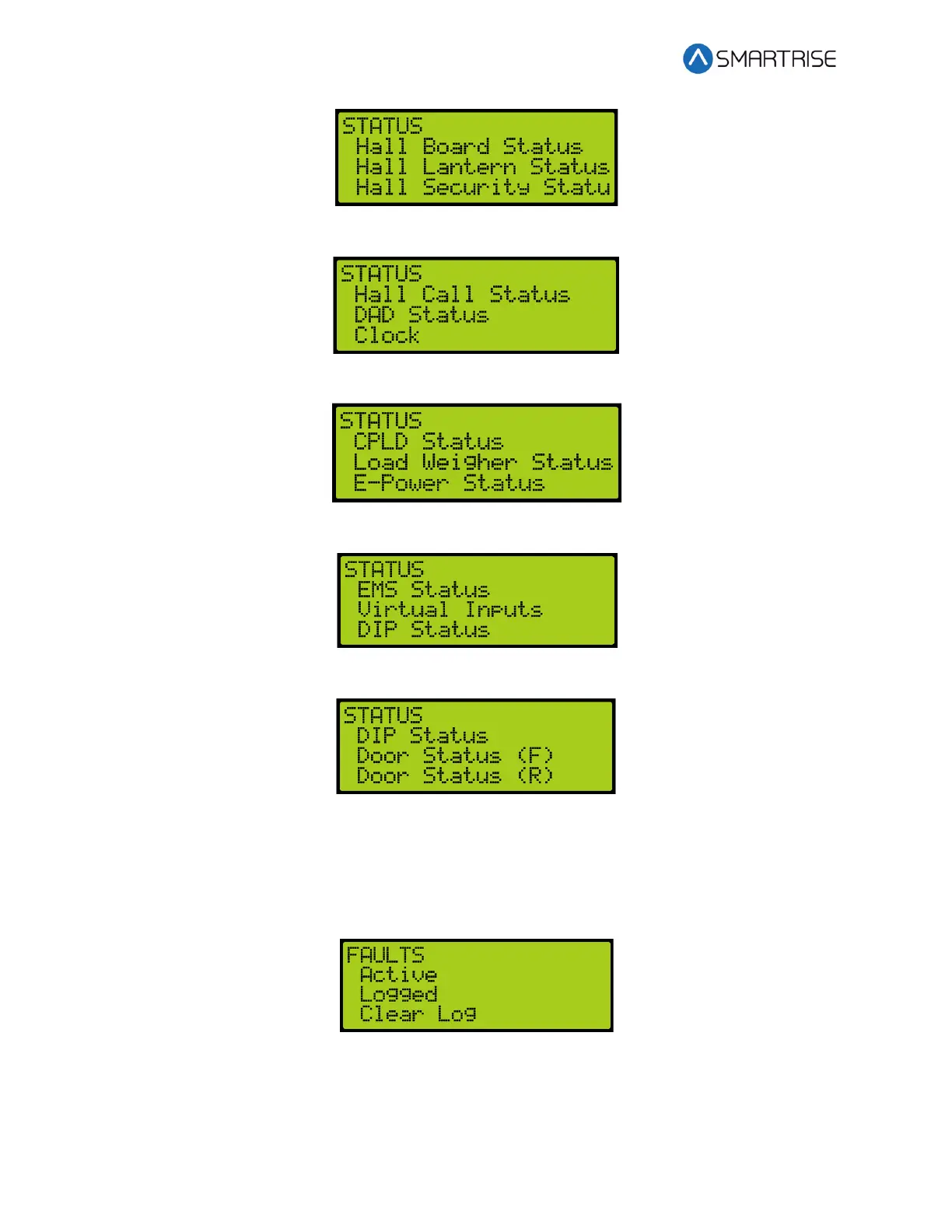

Figure 47: STATUS Menu – Hall Board Status, Hall Lantern Status, Hall Security Status
Figure 48: STATUS Menu – Hall Call Status, DAD Status, Clock
Figure 49: STATUS Menu – CPLD Status, Load Weigher Status, E-Power Status
Figure 50: STATUS Menu – EMS Status, Virtual Input, DIP Status
Figure 51: STATUS Menu – Door Status (F) and Door Status (R)
4.3 Faults
The FAULTS menu displays a list of active and inactive faults.
Figure 52: FAULTS Menu – Active, Logged, Clear Log
