4. From the JERK OUT DECELERATION menu, select the rate of transitions from maximum
deceleration to leveling speed.

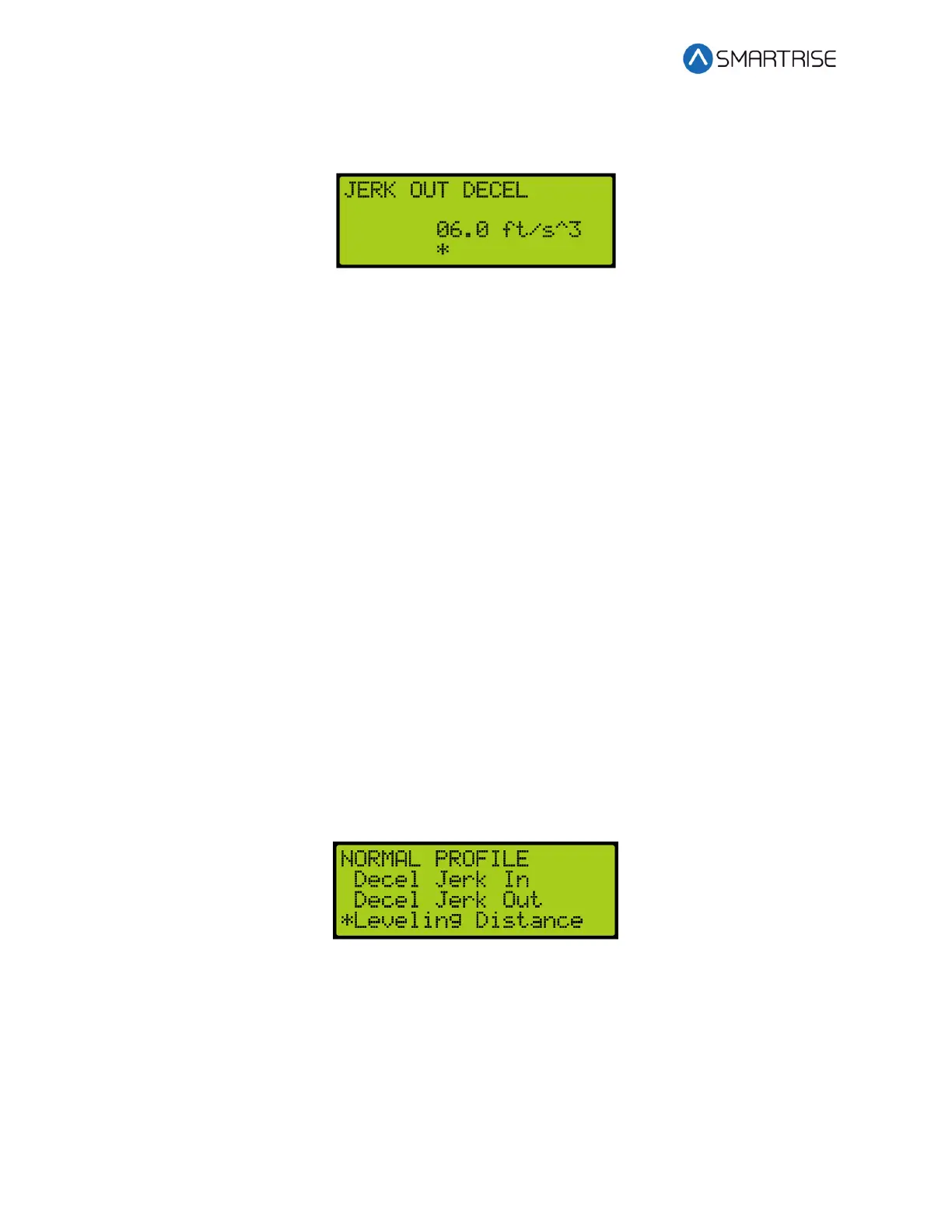

Figure 139: JERK OUT DECEL Menu
5. Scroll right and press Save.
9.1.1.7 Leveling Distance
The Leveling Distance parameter determines the stabilized distance the elevator will travel
before arriving at the destination floor. The car will travel at leveling speed for the set distance
before ramping to zero.
The adjustment range is from 0-24.4 in.
• Default = 1 inch
• Units of measure = inches
Increasing this parameter will allow car to run at leveling speed for the programmed distance. A
higher value allows the car to correct any speed overshoot but increases leveling time. A value
too low may cause overshoot of the floor due to motor tracking issues and a harsh stop under
the brake.
The following procedure describes how to set the leveling distance.
1. Navigate to MAIN MENU | SETUP | S-CURVE. See Figure 55.
2. From the S-CURVE menu, scroll and select the profile that is being adjusted. See Figure
127.
3. From the PROFILE menu, scroll and select Leveling Distance.
Figure 140: NORMAL PROFILE Menu – Leveling
To Next Page
