10.3 Upper Tape Mount Assembly

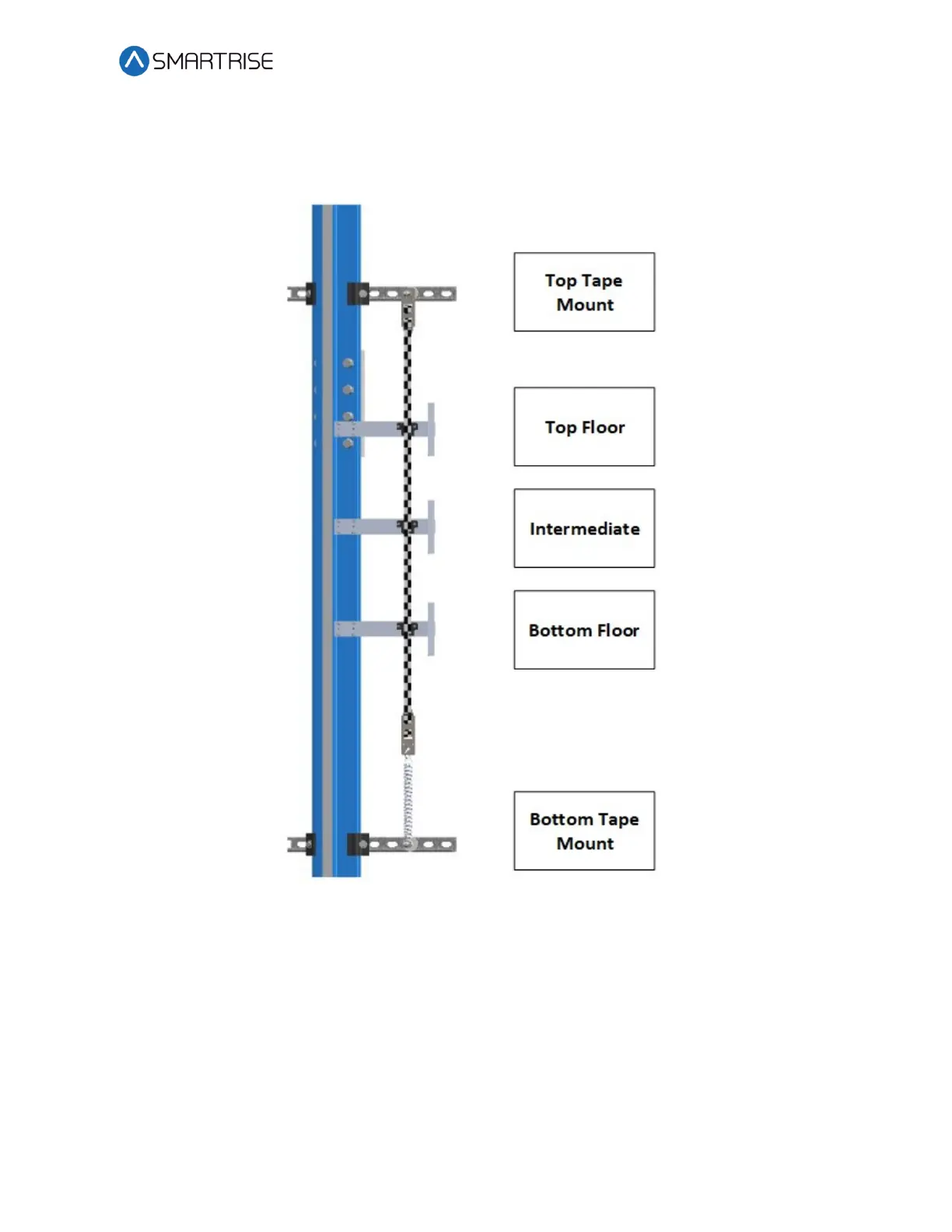

The Upper and Lower Tape Mount Assemblies are located as shown.
Figure 163: Location of Tape Mount Assemblies
