C4 User Manual
Page 122 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
The following procedure describes how to install the Upper Tape Mount Assembly.
1. Affix an 18” length of Unistrut to the top of the guide rail.

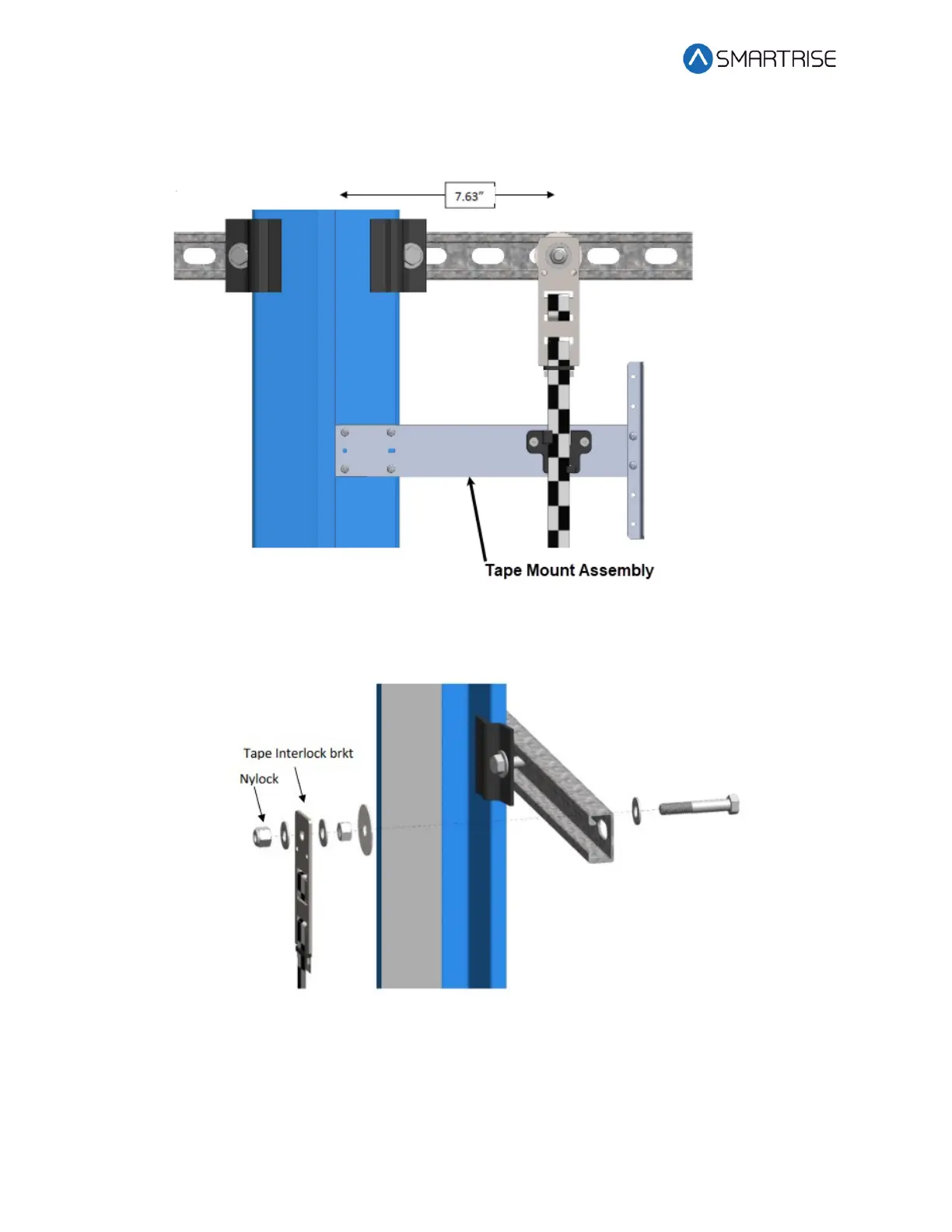

Figure 164: Upper Tape Unistrut Installation
2. Loosely attach the hardware to the Upper Tape Mount Assembly.
Figure 165: Hardware
3. Position the Upper Tape Mount assembly 7.63” from the wheel surface of the guide rail
to the center of the 3/8” bolt. See Figure 164.
4. Temporarily affix a Tape Clip Assembly to the guide rail and onto the tape to verify
location.
5. Tighten the first hex nut to secure the assembly in place.
