4. From the BRAKE SETUP menu, scroll and select Ramp Time – Auto.

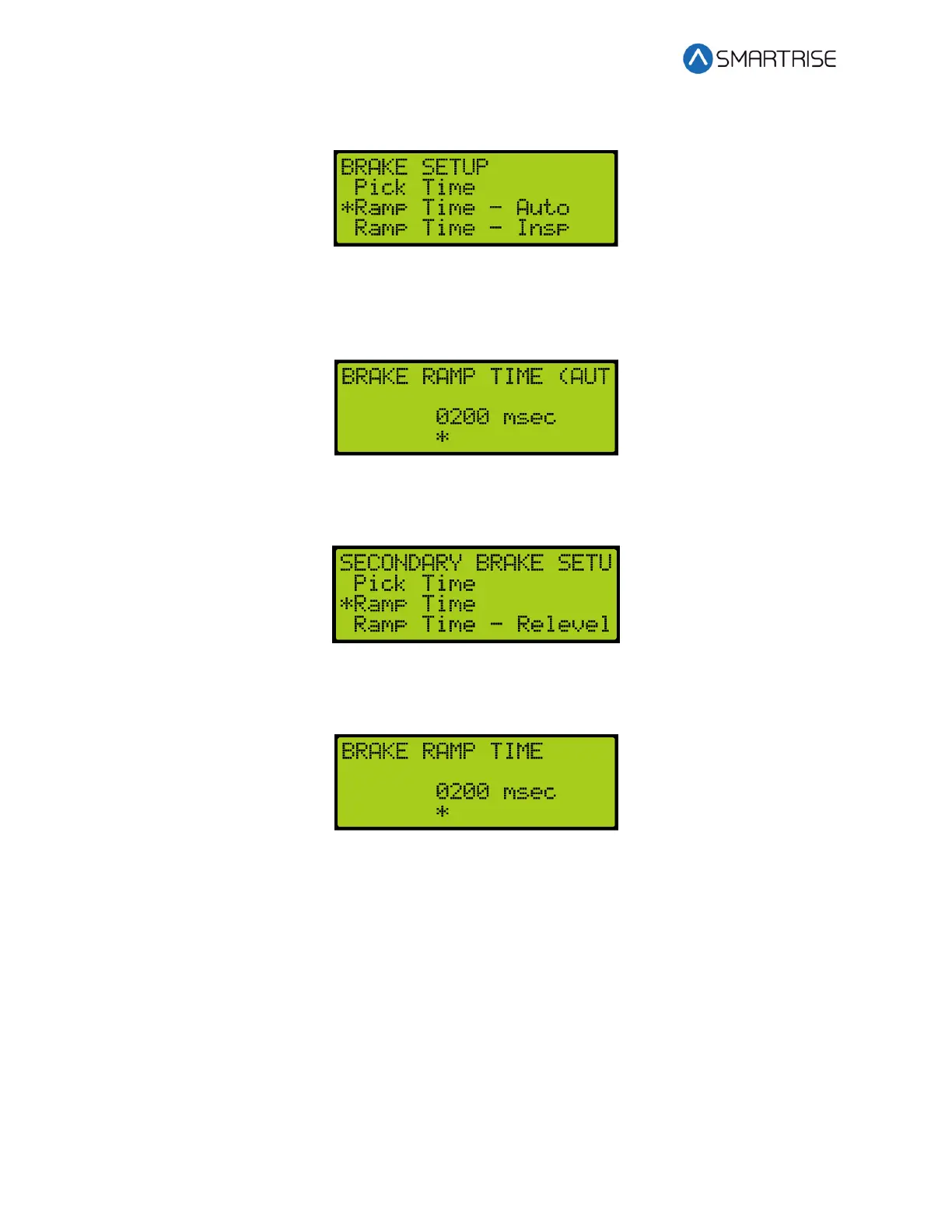

Figure 90: (Primary) BRAKE SETUP Menu – Ramp Time – Auto
5. From the BRAKE RAMP TIME – (AUTO) menu, enter the time to fully release the brakes.
Go to step 8.
Figure 91: BRAKE RAMP TIME – (AUTO) Menu
6. From the SECONDARY BRAKE SETUP menu, scroll and Ramp Time.
Figure 92: SECONDARY BRAKE SETUP Menu – Ramp Time
7. From the BRAKE RAMP TIME menu, enter the time to fully release the brakes.
Figure 93: BRAKE RAMP TIME Menu
8. Scroll right and press Save.
6.6 Ramp Time – Inspection
Ramp Time Inspection is the time it takes for the brakes to ramp up to full pick voltage during
inspection. Only the primary brakes are used during Inspection Mode; therefore, there is no
setting on the Secondary Brake menu options for inspection.
The following procedure describes how to set the ramp time during inspection.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary Setup. See Figure 77.
