C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 103
3. From the PROFILE menu, scroll and select Accel Jerk Out.

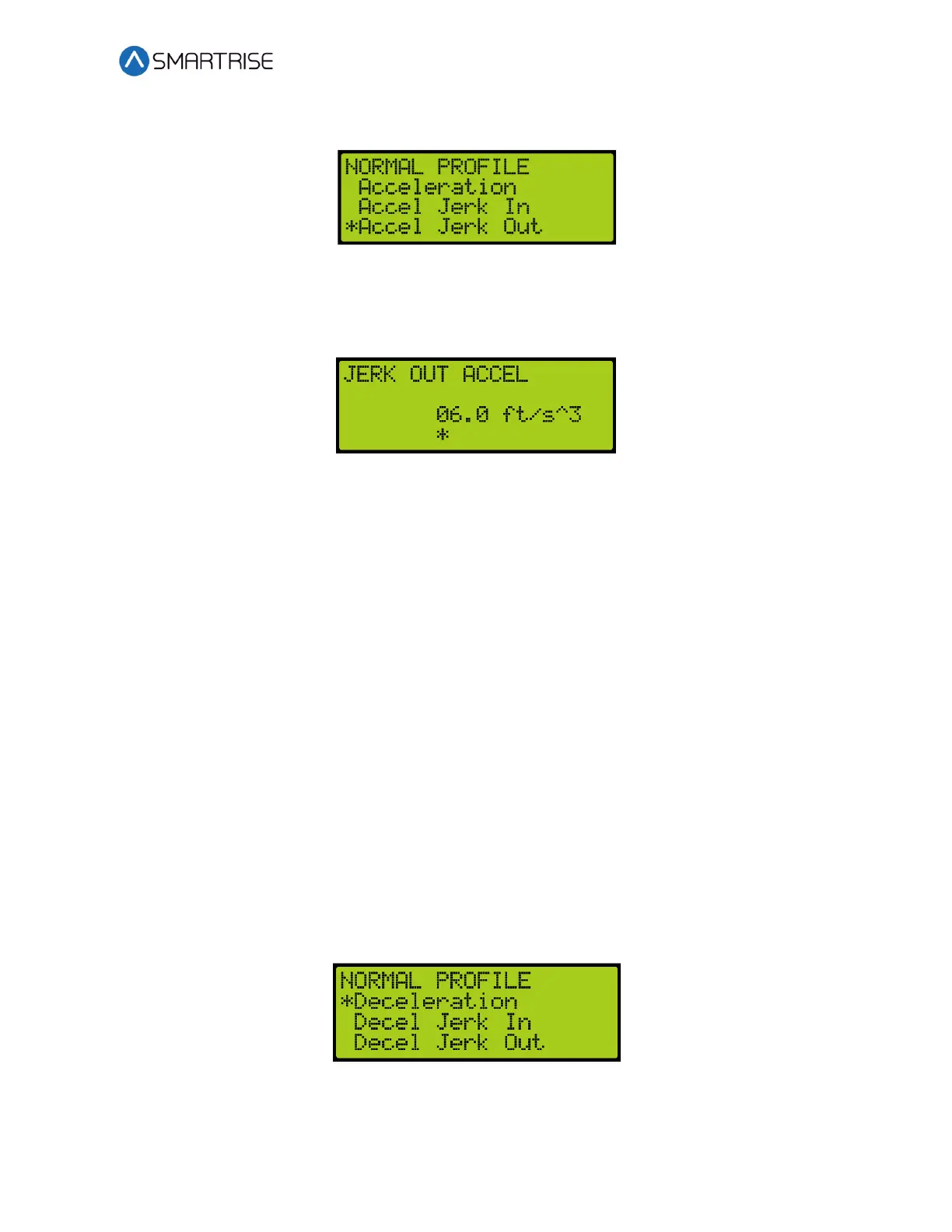

Figure 132: NORMAL PROFILE Menu – Accel Jerk Out
4. From the JERK OUT ACCELERATION menu, select the rate of transition from maximum
acceleration to zero acceleration.
Figure 133: JERK OUT ACCEL Menu
5. Scroll right and press Save.
9.1.1.4 Deceleration
The Deceleration parameter defines the rate at which the car reaches leveling speed. The
higher the deceleration value, the sharper the rate. For example, with Contract Speed set at
350 fpm (5.8 ft/s), and Deceleration set to 1 fps
2
, the car will reach leveling speed in 5.8
seconds. This calculation is before rounding is considered. Each rounding corner will normally
add about half of its rounding time to the time to reach contract speed.
The adjustment range is from 1-8 fps
2
.
• Default = 1 fps
2
• Units of measure = fps
2
The following procedure describes how to set Deceleration.
1. Navigate to MAIN MENU | SETUP | S-CURVE. See Figure 55.
2. From the S-CURVE menu, scroll and select the profile that is being adjusted. See Figure
127.
3. From the PROFILE menu, scroll and select Deceleration.
Figure 134: NORMAL PROFILE – Deceleration
To Next Page
