40.8 Emergency Bitmap
The emergency bitmap displays the type of emergency.
The following procedure describes how to view emergencies.
1. Navigate to MAIN MENU | DEBUG | EmergencyBitmap. See Figure 65.
2. From the EMERGENY STATUS menu, view the type of emergency that has an X by the
name.

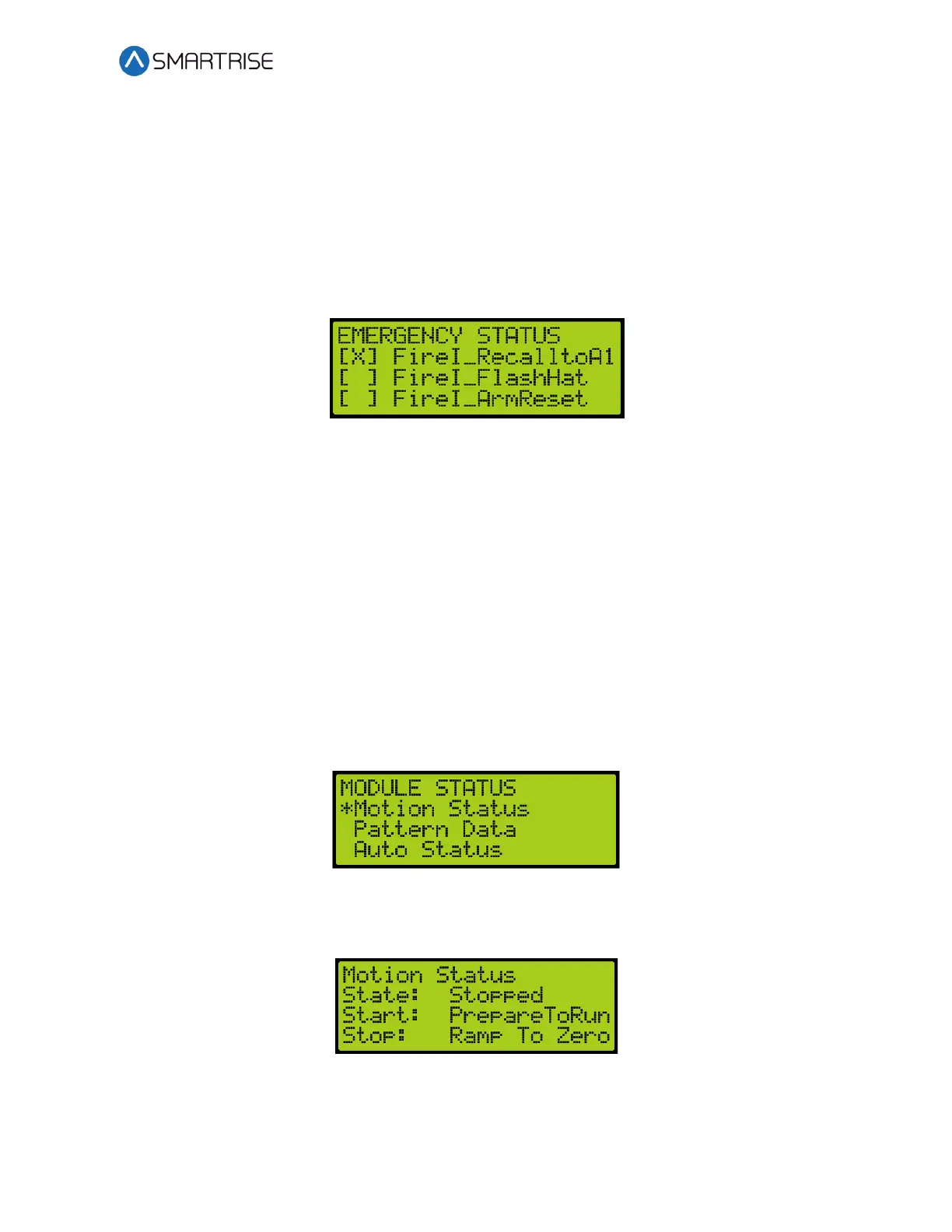

Figure 700: EMERGENY STATUS Menu
40.9 Module Statuses
The module status displays the current status of various functions.
40.9.1 Motion Status
The motion status displays the current motion of the car, the start and stop condition, and the
type of profile. See section 9 S-Curve.
The following procedure describes how to view the status of the motion for the car.
1. Navigate to MAIN MENU | DEBUG | Module Statuses. See Figure 66.
2. From the MODULE STATUS menu, scroll and select Motion Status.
Figure 701: MODULE STATUS Menu – Motion Status
3. From the Motion Status menu, scroll and view the Motion Status information.
Figure 702: Motion Status Menu
