Direct Device Configurations (Solar-Log 1200 and 2000)
26.6 Basic settings menu
The Basic settings is divided into the following sections:
•
Network
•
Portal
26.6.1 Basic Settings | Network menu
The menu Configuration | Basic Settings | Network menu consists of two configuration pages.
Page 1 is divided into the following sections:
• IP Address and Subnet Mask
• Internet access
Page 2 is divided into the following sections:
• Network Router – Obtain IP address automatically (DHCP)
• Gateway and alternate DNS

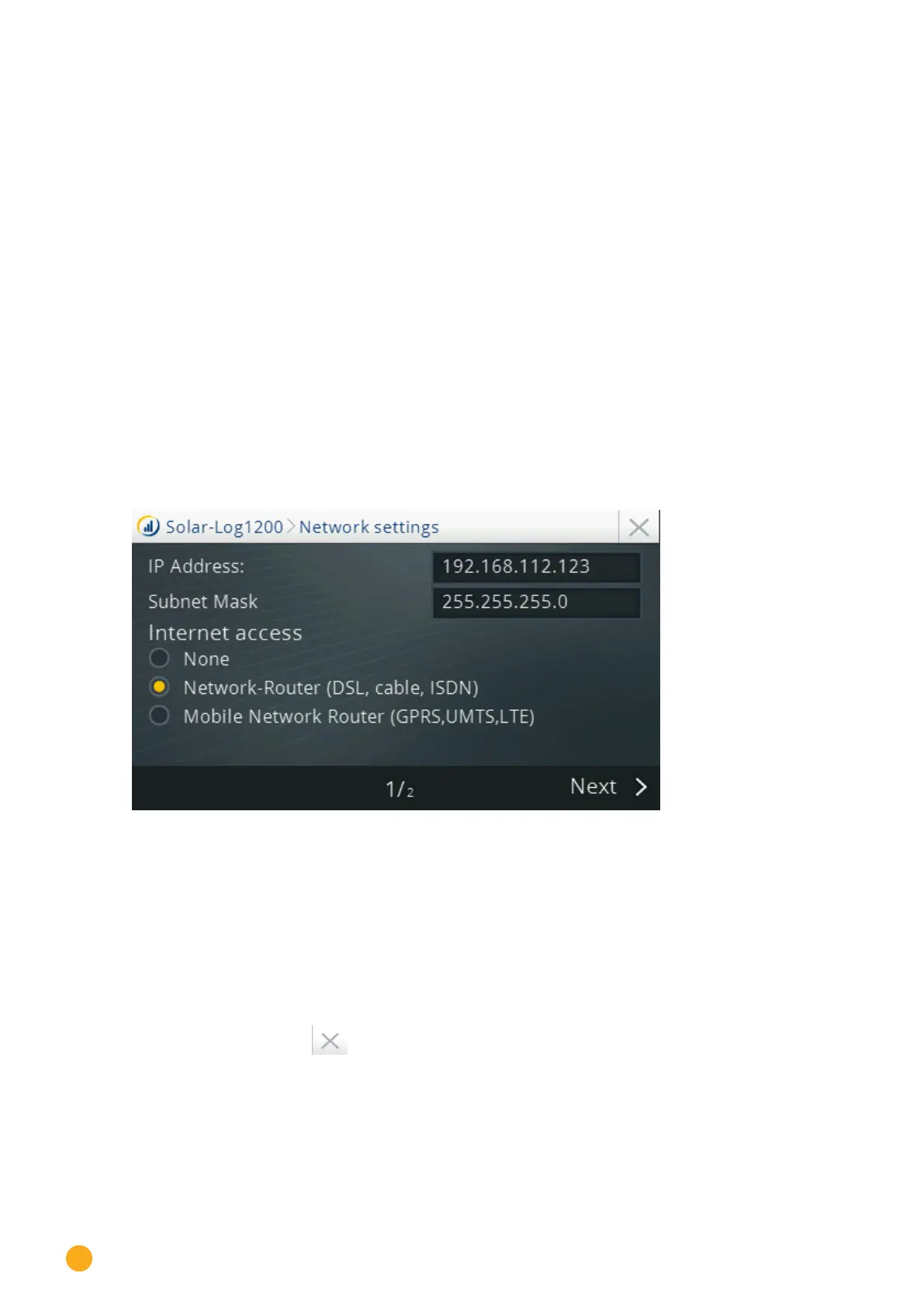

Fig.: Network settings Page1 on Solar-Log 1200 display
Procedure
Configuring the IP Address and Subnet Mask
•
Touch the IP address and/or Subnet Mask input box with your finger.
•
A virtual numeric keypad appears.
•
Enter the desired IP address or Subnet Mask by tapping on the corresponding numbers.
•
Tap on OK.
•
The values entered are shown in the display.
•
Tab on Next or
•
End the settings with .
Then tab the desired option (Save, Discard or Back).
