Solar-Log 2000 Installation Manual

34
Connector Assignments and Wiring
10.5.2 S0-IN
The S0 In interface is a hardware interface used for recording measurement values from power meters. Use
the supplied terminal block connector for the connection to the Solar-Log™.

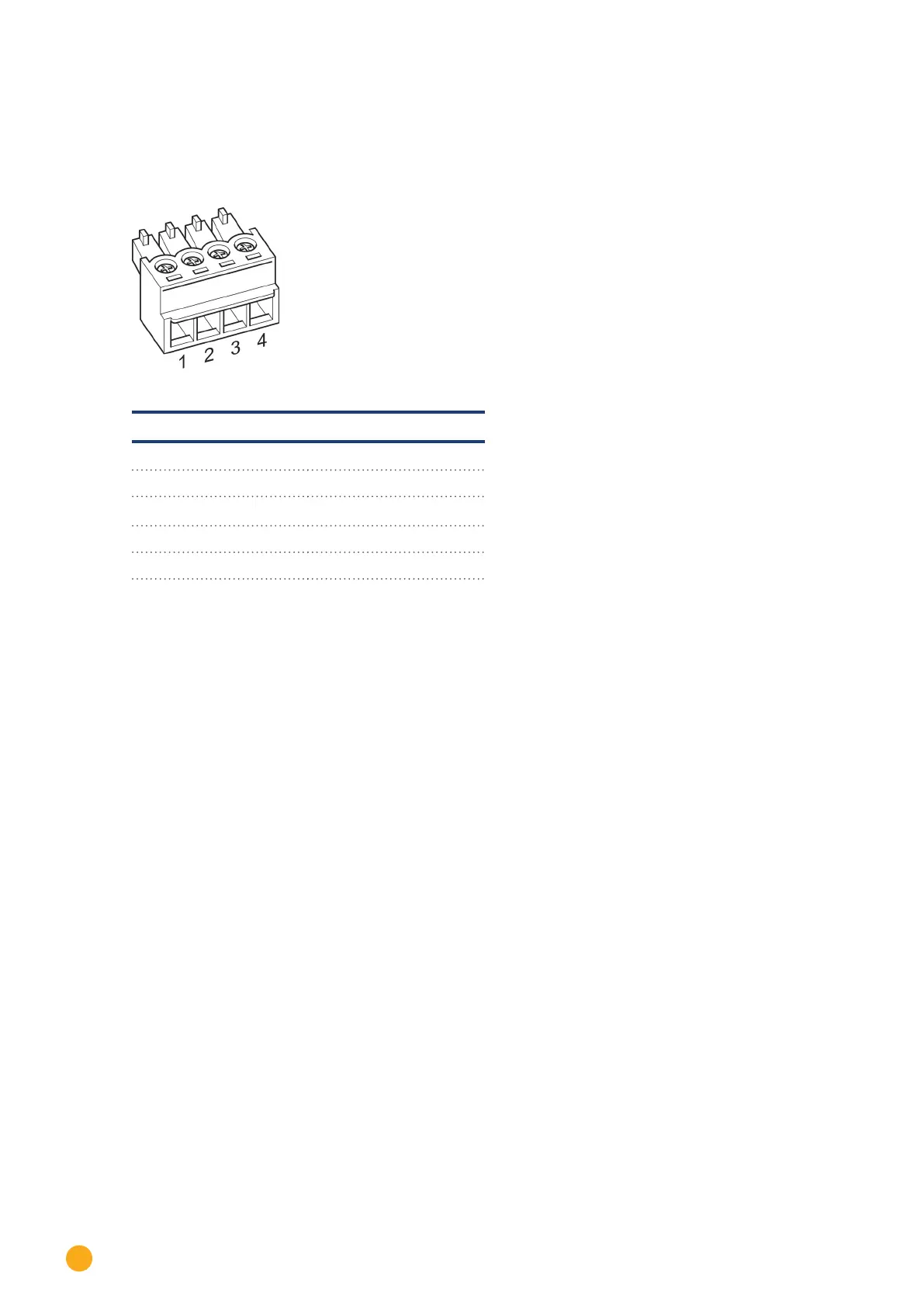

Fig.: 4-pin Terminal block connector
S0-IN
PIN Assignment
1 S0 + Output 27mA
2 S0 - Input max 27mA
3 Measuring contact
4 Ground
Installation instructions for external power meters are also in chapter „12.5 External power meters“ on page
46.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
