Solar-Log 2000 Installation Manual

31
Connector Assignments and Wiring
10.3 RS485/422 - B
Use the provided terminal block connectors when connecting inverters or accessories to the RS485/422 -
B interface.

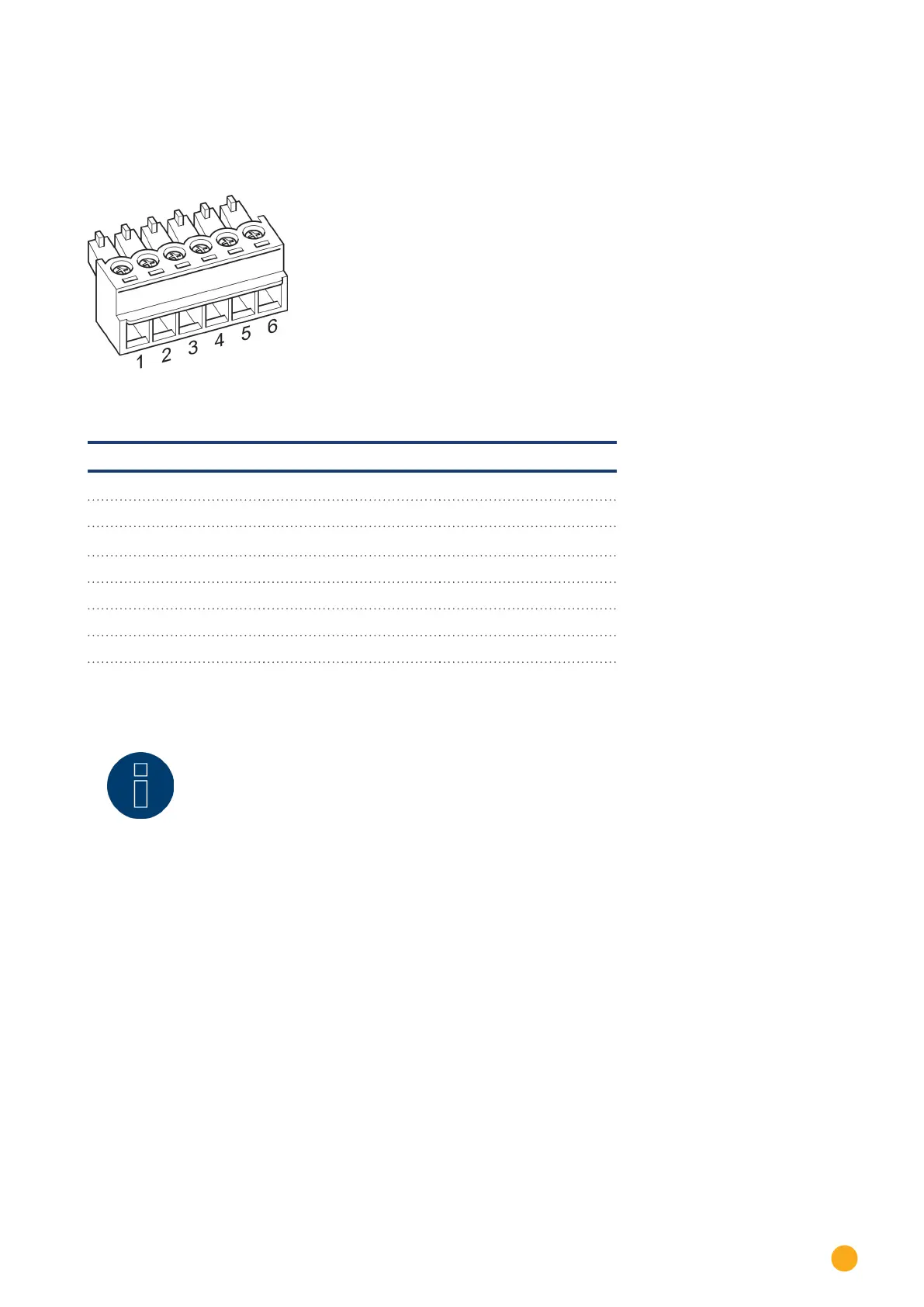

Fig.: 6-pin Terminal block connector
RS485/422 - B
PIN Assignments RS485 Assignments RS422
1 Data + T/RX+
2 12 V 12V
3 Ground Ground
4 Data - T/RX-
5 R/TX+
6 R/TX-
Note!
If inverters that use the RS422 connection are connected to this interface (e.g. Fronius,
AEG, Riello), then it is not possible to connect accessories such as sensors, meters or
displays to this bus.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
