Solar-Log 2000 Installation Manual

30
Connector Assignments and Wiring

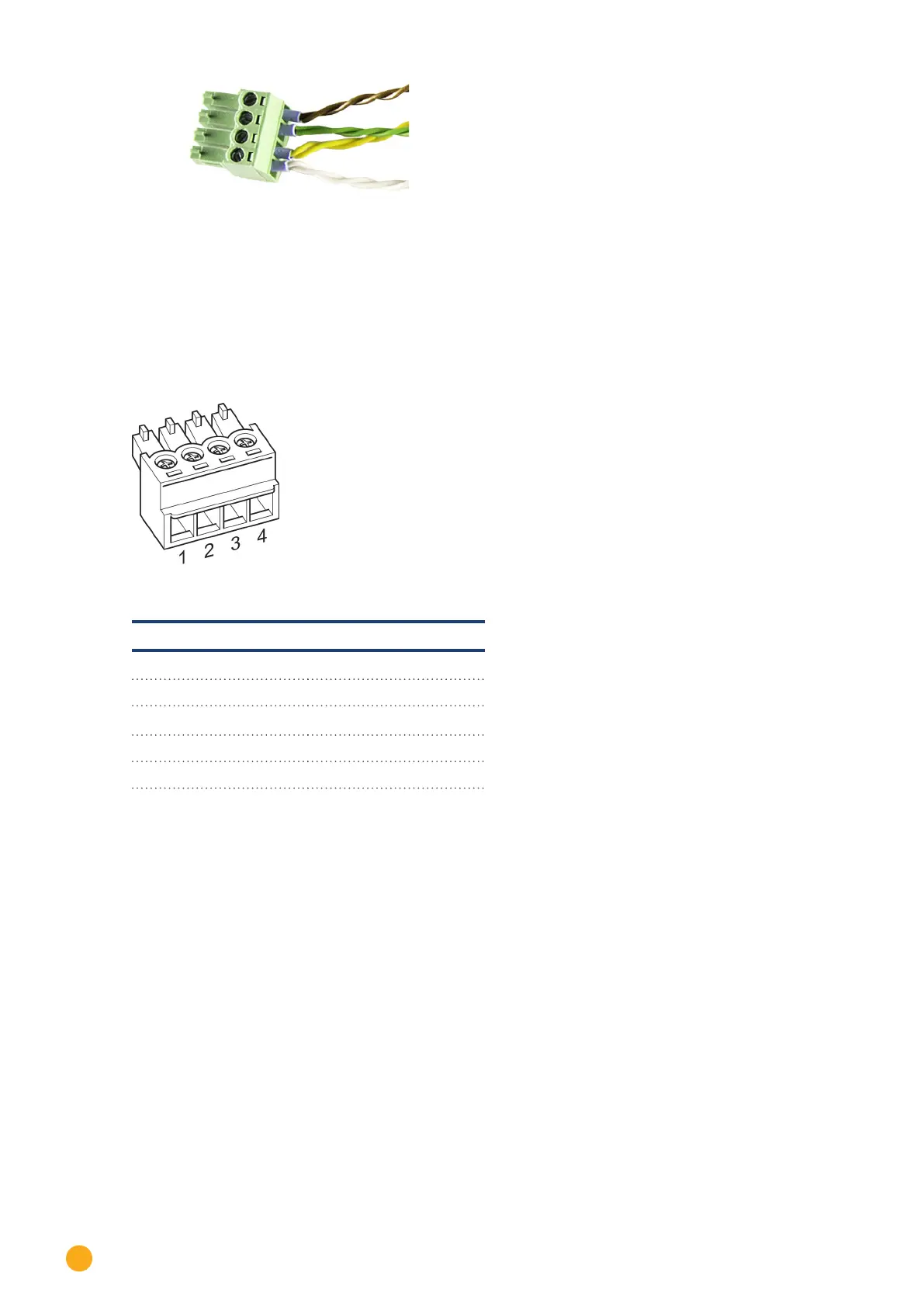

Fig.: Terminal block connector with ferrules
10.2 RS485-A (only Solar-Log 1000, 1200 and 2000)
Use the provided terminal block connectors when connecting inverters or accessories to the RS485 A
interface.
Fig.: 4-pin Terminal block connector
RS485 - A
PIN Assignment
1 Data +
2 12 V
3 Ground
4 Data -

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
