92
Configuring connected devices
Operating mode section:
Select the desired Operating mode before the device detection in the Device Definition menu.
The listed operating modes refer to the different possible measuring combinations.
2x3 phases stand for the recording of two 3-phase appliances. Here the six current transformers
are combined together as two meters.
1x3 and 3x1 phases stand for the recording of one 3-phase appliance and three 1-phase appliances.
Here the six current transformers are combined together as four meters.
6x1 phase stands for the recording of six single-phase appliances. Six meters are displayed in this
mode.
The other modes can be used for other measuring combinations.

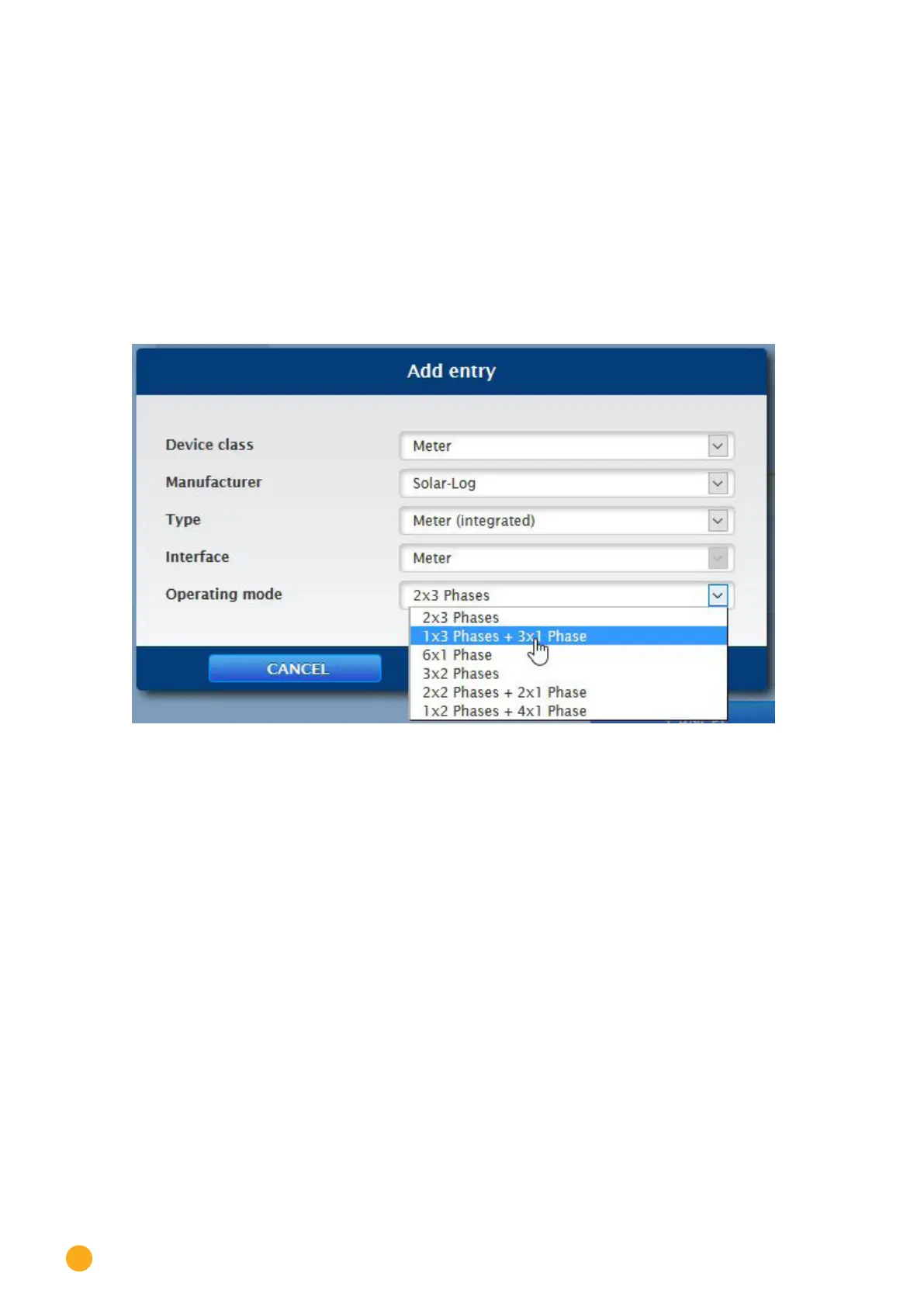

Fig.: Solar-Log™ Meter Operating Mode
