Unit connections
8.3 Solar-Log 2000
Top connections

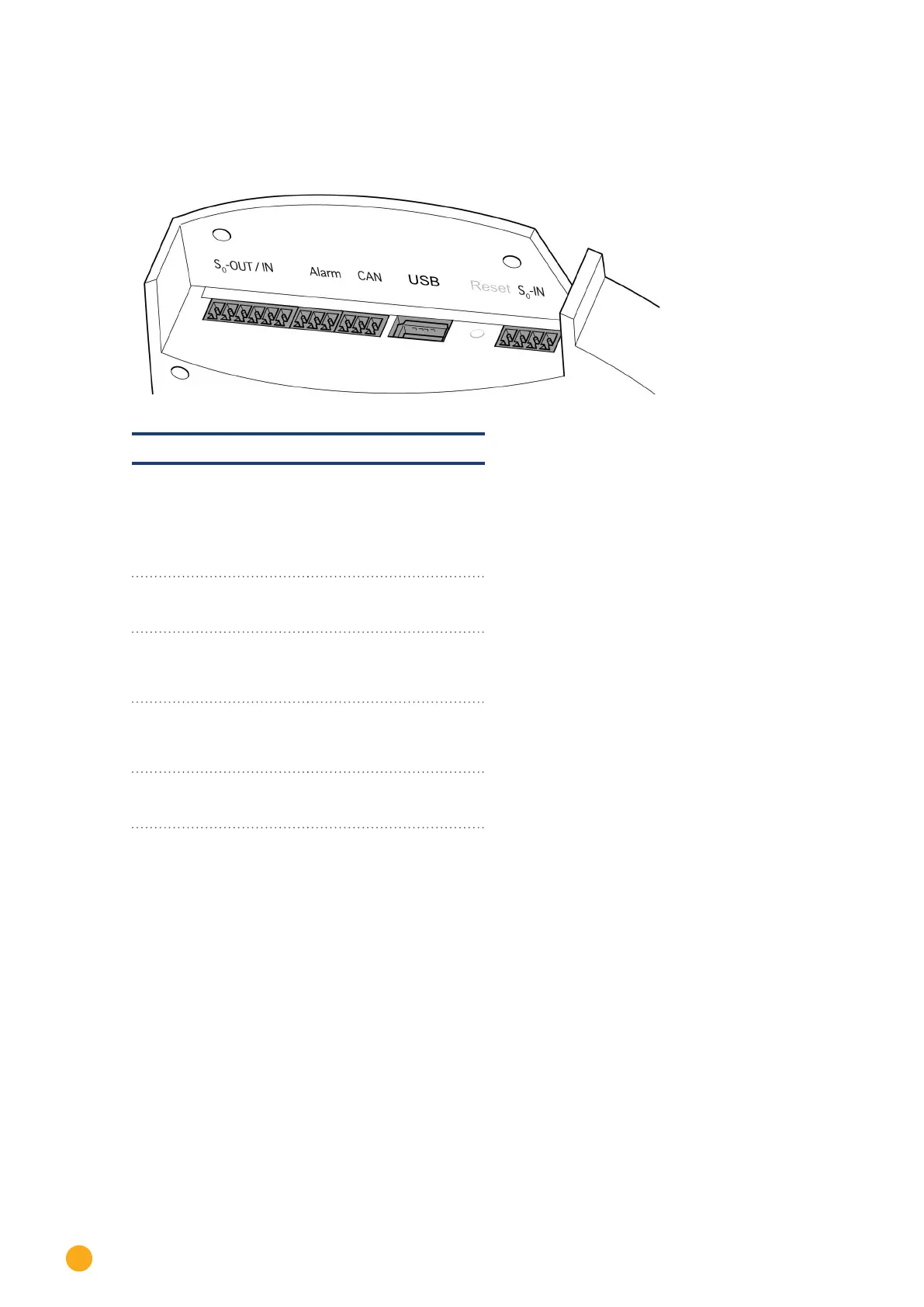

Fig.: Top Connections Solar-Log 2000
Solar-Log 2000
S0-Out
S0-IN
S0 pulse output for con-
necting to a large external
screen. S0 pulse input for
connection to an external
power meter. Please note
the connection characteris-
tics of the S0 connection.
Alarm Connection for contact
strip for anti-theft protec-
tion.
CAN CAN bus — which, for
example, can be used to
connect Voltwerk, Conergy
or Suntechnics inverters
USB USB connection. Suitable
for USB sticks.
Not suitable for a connec-
tion to a PC
S0-IN S0 pulse input for connec-
tion to an external power
meter.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
