Solar-Log 2000 Installation Manual

23
Unit connections
Bottom connections

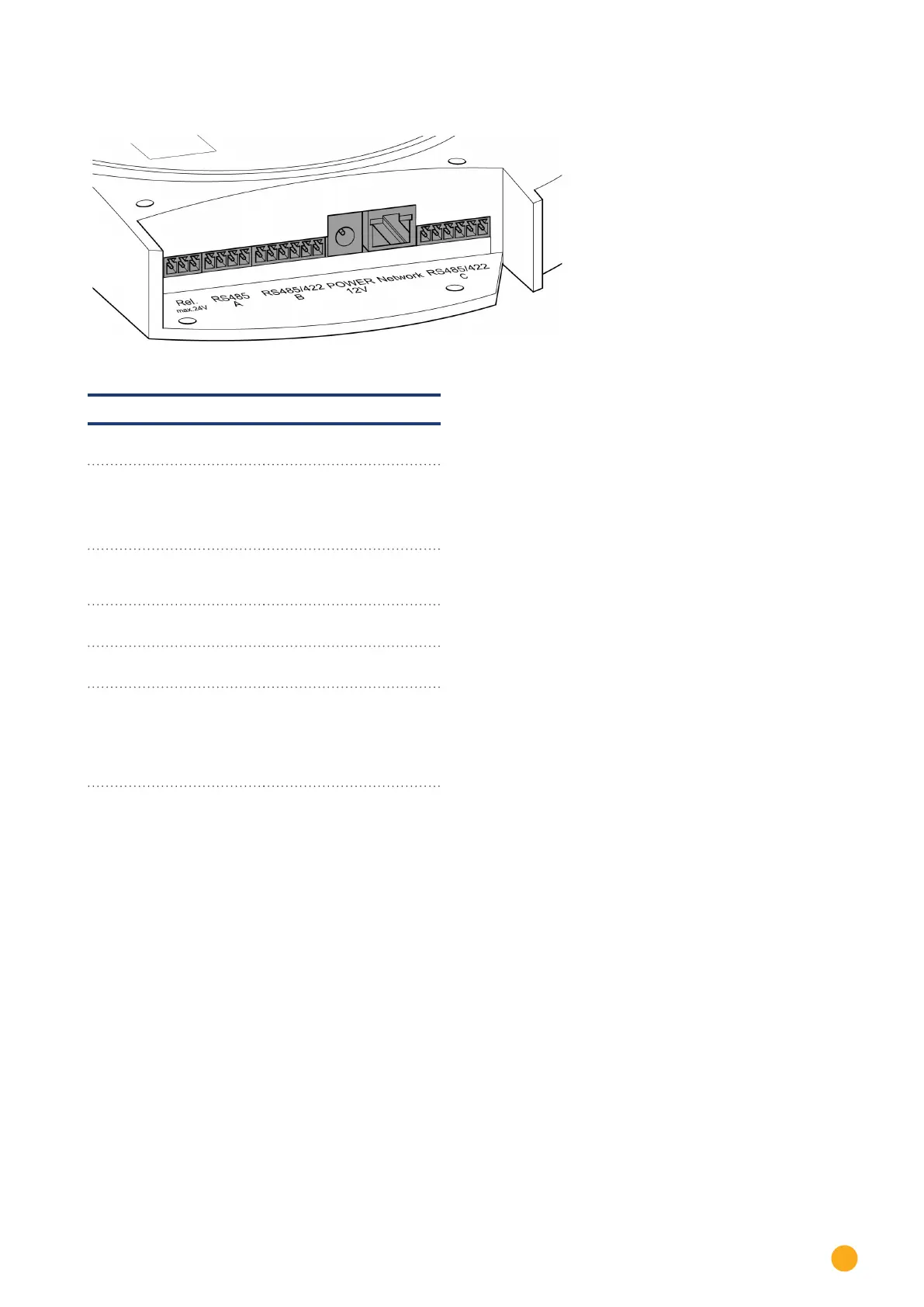

Fig.: Top Connections Solar-Log 2000
Solar-Log 2000
Relay Relay with change-over
contact
RS485 - A RS485 interface, 4 pin:
Connection for inverters
and/or accessories (inac-
tive if the optional Blue-
tooth interface is used)
RS485/422 - B RS485 interface, 6 pin:
Connection for inverters
and additional accessories
Power 12 V 12 volt DC input
Network Ethernet network interface,
10/100 Mbit
RS485/422 - C RS485 interface, 6 pin:
Connection for inverters
and additional accessories
=> It is not possible to
connect a large external
display on this interface.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
