11 Working with Images
112 Basic User Manual
0
5
10
15
68
-68
cm/s
B
FPS 47
D/G 3/1
GN 255
I/P 3/30
PWR 70
FRQ 3-4.8
D 16.5cm
C
PRF 1.0
WF 86
GN 255
C/P 1/50
PWR 70
FRQ 2.2
S
S

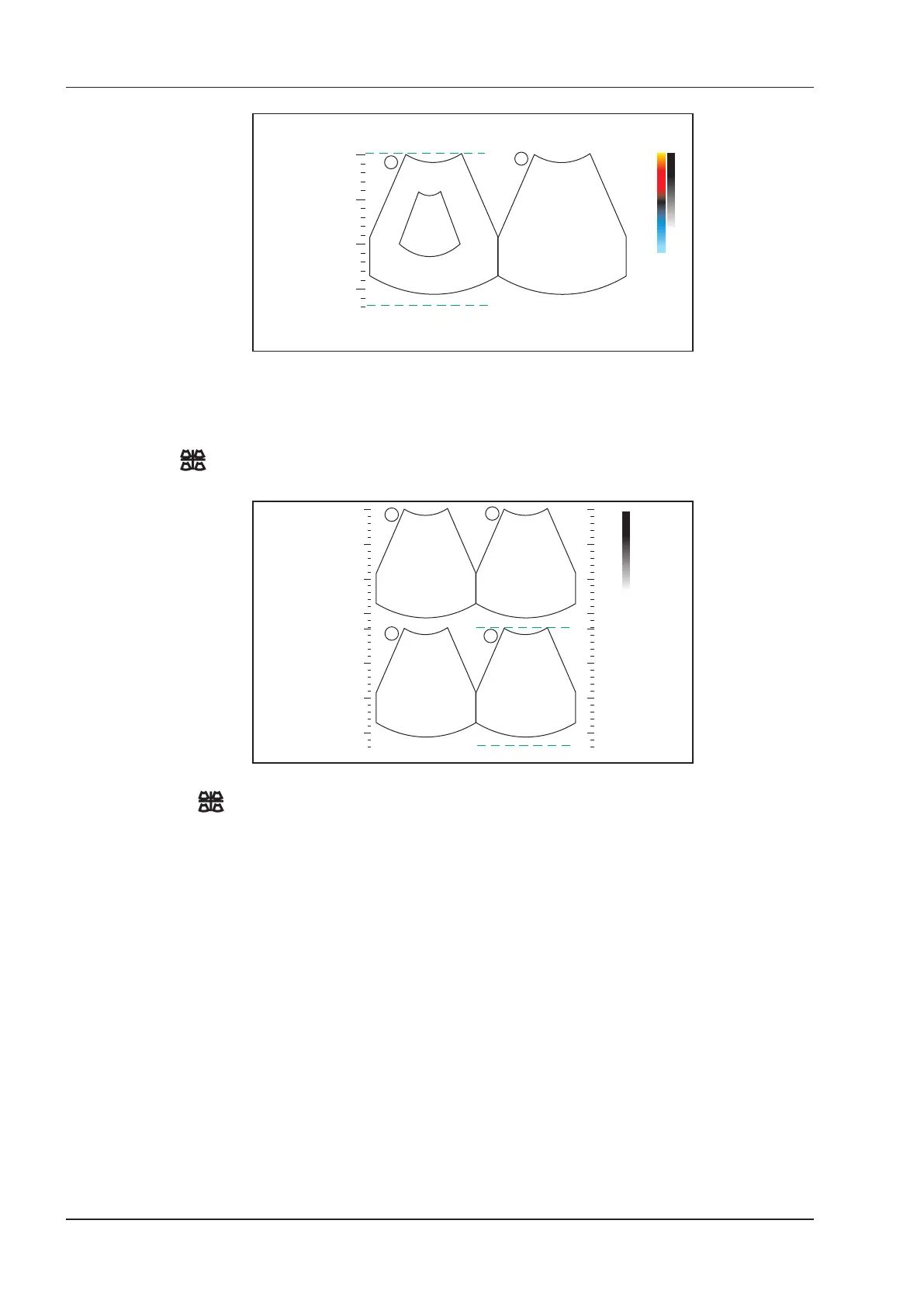

Figure 11-2 Real Time CFM + Real Time B
■ Quad-Split Screen Display
1. Press the
B
,
CFM
,
M
,
PW
or
CW
key on the control panel to select an imaging mode for a real time scan.
2. Tap on the touch screen to enter the quad split screen display.
The B-mode image is taken as an example in the following gure.
0
5
10
15
0
5
10
15
0
5
10
15
0
5
10
15
B
FPS 47
D/G 3/1
GN 255
I/P 3/30
PWR 70
FRQ 3-4.8
D 16.5cm
S
S
S
S
Figure 11-3 Quad-Split Screen Display
−
Tap to freeze the current image and unfreeze the following clockwise image.
−
Press the
CFM
,
M
,
PW
or
CW
key to select an imaging mode for the real time scan.
−
Press the
B
key to exit the quad split screen display.
11.1.3 m-Tuning
m-Tuning optimizes the image quality.
To enable m-Tuning:
Press the
m-Tuning
key on the control panel to optimize image quality.
11.1.4 Harmonic Imaging
Tissue Harmonic Imaging (THI) uses the harmonic frequencies generated by tissue. The fundamental transmit
frequency results in a harmonic frequency echo. The harmonic frequency received from the tissue is a multiple
of the fundamental transmit frequency. The fundamental and any accompanying artifacts are missing from the
harmonic frequency that the system receives. The artifact reduction, and the concomitant reduction in haze and
clutter, increases contrast resolution and improves border delineation. THI is useful in difcult-to-image patients.
In real time scan of B mode, tap
THI
on the touch screen to enable the THI mode, and
THI or PHI
appears at
the lower left corner of the screen. Optimize the image the same way you did in the B mode.
