4 Customizing Your System
44 Basic User Manual
Item Description
IP Address Enter the IP address of the DICOM commitment storage server.
After the setting, click Ping to test the connection.
DICOM AE Title Set the Application Entity (AE) title of the DICOM commitment storage
server.
Port Number Set the port number of the DICOM commitment storage server.
Connect Timeout(sec) Set the time limit for the network connection timeout.
Repeat Count Set the number of repeated attempts for connecting to the DICOM
commitment storage server.
Dimse Timeout(sec) Set the timeout time for sending the Dimse command.
Acse Timeout(sec) Set the timeout time for sending the Acse command.
Synchronously Receive
N-EVENT-REPORT Message
Tick this item and the system receives the N-EVENT-REPORT messages
synchronously with the storage server.
Click Echo to verify the connection between the system and the server after you input the settings. A summary
displays if the connection is veried.
4.8.3 DICOM Worklist Settings
You can connect the system to the DICOM worklist server and adjust the relevant settings on the Worklist tab.
System Setting
Store C-Store Worklist
Print QR ListMPPS
Peripheral
General
Comment
Measure
DICOM
Load Default
User Security
About
Save&Exit
Exit
Bodymark
Delete
Add
DICOM Worklist
Service List
Worklist
Worklist
Max. Result
Remote HostName
Port Number
105
Connect Timeout(sec)
10
Repeat Count
1
Dimse Timeout (sec)
10
Acse Timeout (sec)
30
Ping
Echo
IP Address
192.168.254.104
DICOM AE Title
AE
100
Report
Touch Screen

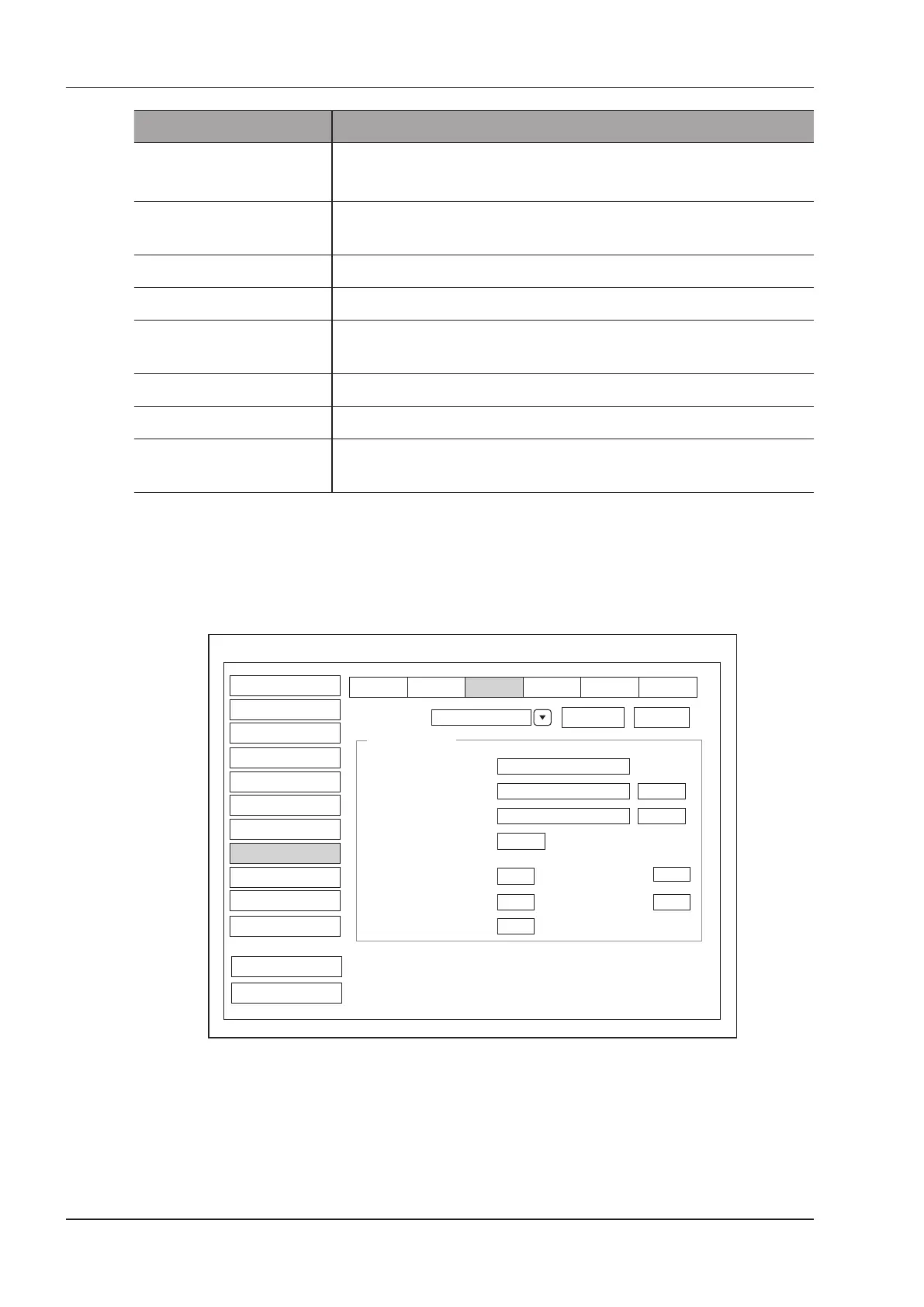

Figure 4-18 DICOM Settings Menu - Worklist Tab
