11 Working with Images
Basic User Manual 115
NOTE:
The image can also be magnied in the frozen mode.
To magnify an image:
1. Press the
Zoom
key on the control panel to enable this feature.
A size multiplier is displayed in the information area of the basic screen, a thumbnail is displayed in the lower
left corner of the basic screen, and the magnied image is displayed on the imaging area of the basic screen.
2. Position the ROI by using the trackball.
3. Rotate the
Depth
knob on the control panel to magnify the image in certain times.
11.3 Freezing an Image
Press the
Freeze
key on the control panel to capture an image in a real time scan or dual/quad split screen display
and the feature to be applied is also activated. For this setting, refer to Section 4.1.1 General Settings.
You can select any desired image mode, magnify the image, perform measurements, add annotations and body
marks and adjust imaging parameters in the frozen mode.
11.4 Using Cine
The cine review is available by pressing the
Freeze
key on the control panel and the icon appears on the
screen.
You can play back the cine by tapping
Auto Play
on the touch screen or review the cine by using the trackball.
Moreover, the cine can also be cut for your actual use.

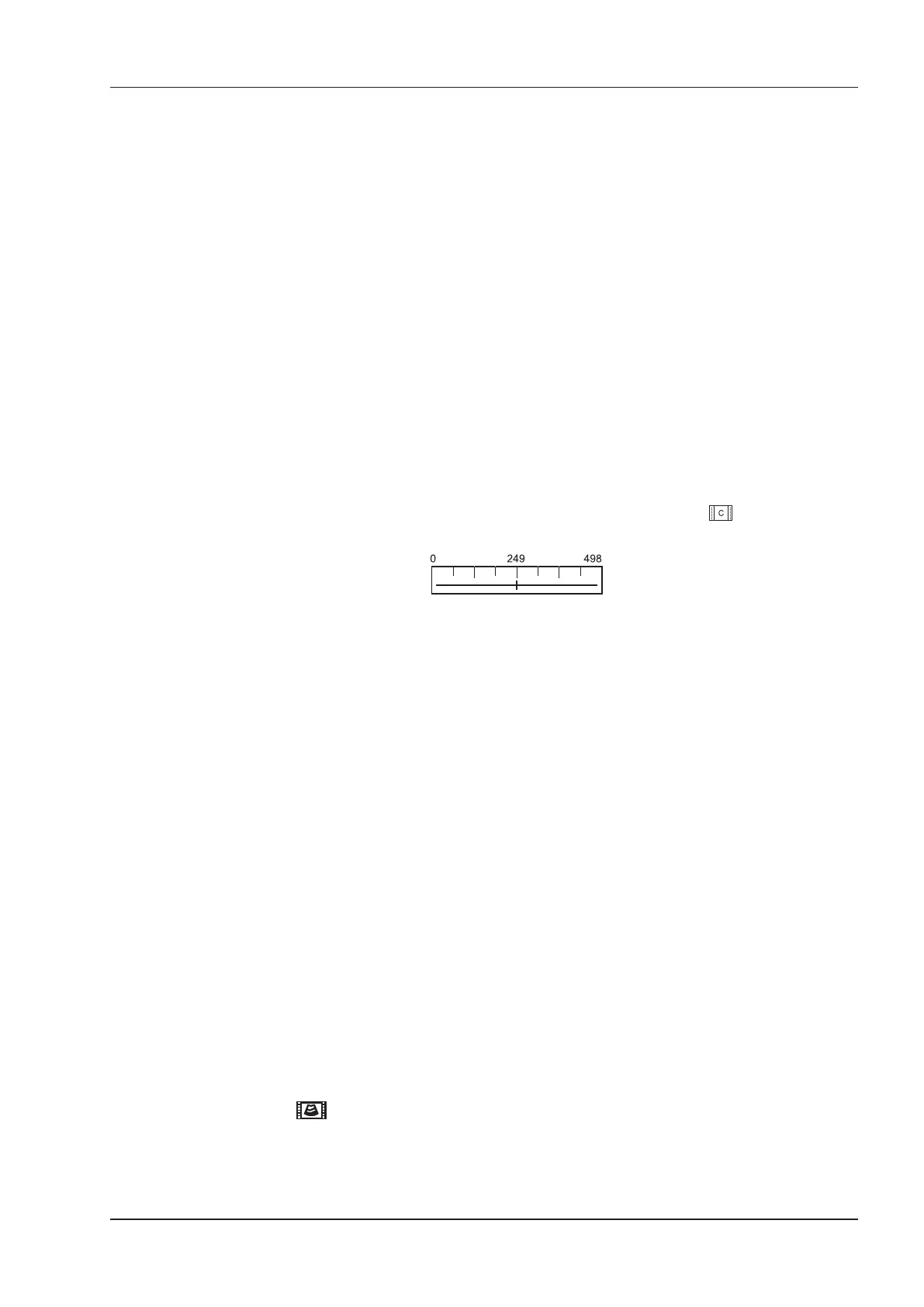

11.4.1 Reviewing Cine
■ To View Cine Manually
You can review the cine frame by frame by using the trackball or tapping
F By F
on the touch screen in the frozen
B mode. Each image is identied by a number which indicates its position in the cine.
NOTE:
• You can adjust the parameter settings when review cine.
• You can tap
To First
or
To Last
on the touch screen to review the rst or last frame.
■ To Review Cine Automatically
In the frozen mode, tap Auto Play to play the cine review automatically. Tap Auto Play again to stop the cine
review.
Or, tap the left or right part of Cine Speed to adjust the review speed during the cine review.
11.4.2 Cutting Cine
To cut the cine:
1. Use the trackball to move the cursor to the start frame, and then press the
Update
key on the control panel.
2. Move the cursor to the end frame, and then press the
Update
key.
3. Press the
Save ( )
key on the control panel to save the cut cine.
