2.2.4 Basic Screen
Sonoscape
20121212234565
MI 0.2 TIS 0.7 12/03/2016 14:30:30
0
5
10
15
Patient
Operator
9
-9
cm/s
THI
1 2
3 4 5
6 7 8
22
21
20
19 18 17
14
15
16
10
9
11
13
12
PAT: 37℃
TIP：28℃

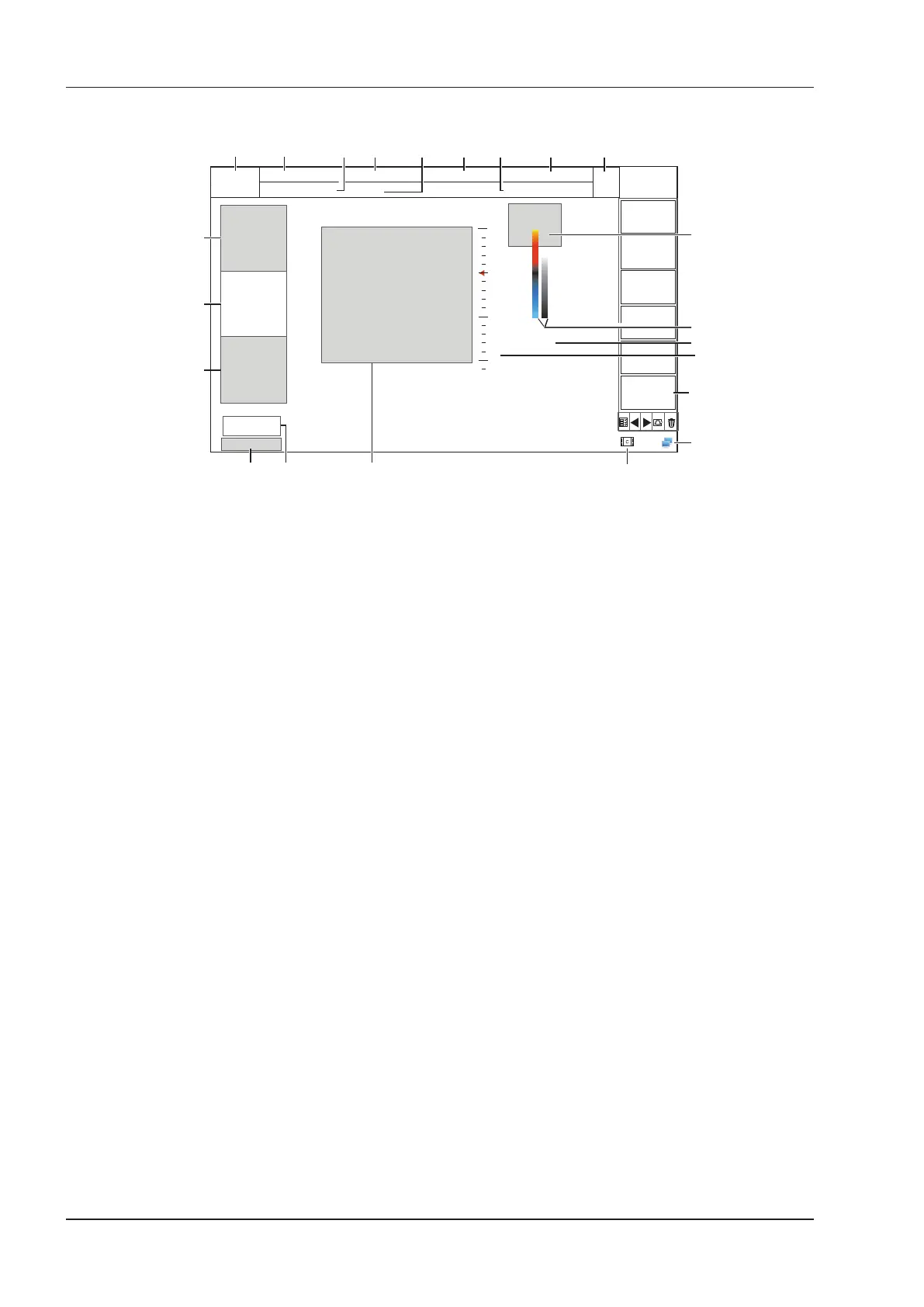

Figure 2-4 Basic Screen
1 Logo
2 Institution Name
3 Patient ID
4 Probe Model/Exam Type
5 Patient Name
6 MI and TIS Indices
7 System Date and Time
8 Exam Type Icon
9 Operator
10 Measurement Result Area
11 Color Map (in Color/PDI mode) /
Grayscale Map (Right)
12 Temperature Display Area
13 Depth Scale and Focal Position
14 Clipboard
15 Network Connection Status
16 Cine Loop Icon (in frozen mode)
17 Imagining Area
18 Cine Loop Status (in frozen mode)
19 THI and PW/CW Status
20
PW/CW/M Mode Imaging
Information
21
Color Flow Mode Imaging
Information
22 B-Mode Imaging Information
2.2.5 Touch Screen
The touch screen above the control panel provides controls which can be used to select the probe model in
accordance with the exam type, annotate the image or perform the measurement. The touch screen contains several
types of controls, depending on the feature to be performed.
NOTE:
A same effort can be achieved by using controls on the touch screen or controls and knobs located on the
control panel and the key panel if they are of the same name. In such condition, only the system operated with
the touch screen is described in this manual.
