6-1
CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)
SECTION 6
ADJUSTMENTS
When performing adjustments, refer to the layout diagrams
for adjustment related parts beginning from page 6-44.
6-1. CAMERA SECTION ADJUSTMENT
1-1. PREPARATIONS BEFORE ADJUSTMENT

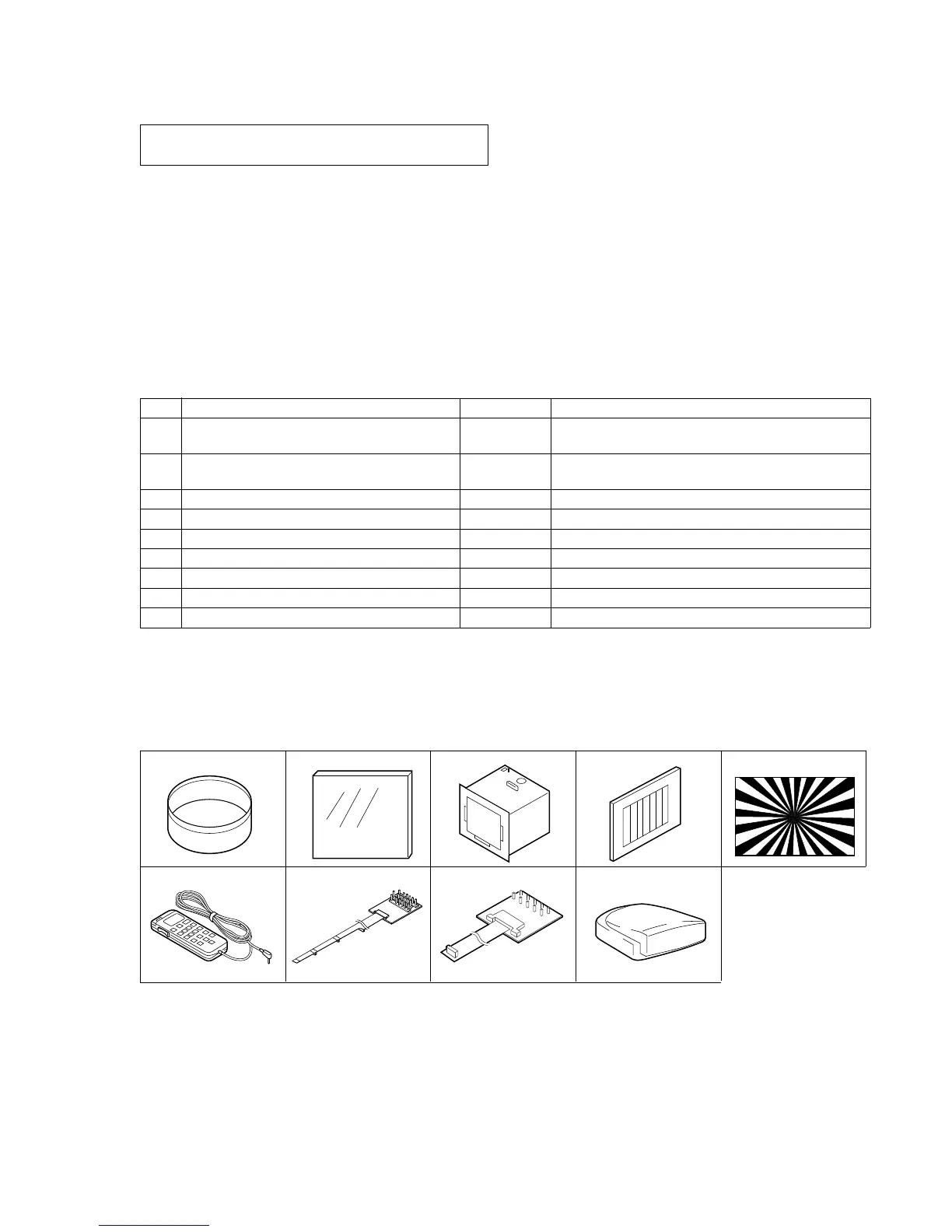

1-1-1. List of service tools
Oscilloscope Regulated power supply Vectorscope Pattern generator
Adjustment screw driver Color monitor Digital voltmeter
Note: If the microprocessor IC in the adjusting remote commander
is not the new microprocessor (UPD7503G-C56-12), the
pages cannot be switched.
In this case, replace with the new microprocessor (8-759-
148-35).
NT : NTSC MODEL
PAL : PAL MODEL
WIDE : WIDE (16 : 9) MODEL
DZ : DIGITAL ZOOM TYPE
MO : MONO MODEL
ST : STEREO MODEL
V. LIGHT : VIDEO LIGHT TYPE
IR : INFRARED RADIATION TYPE
S. SHOT : STEADY SHOT MODEL
Ref. No.
J-1
J-2
J-3
J-4
J-5
J-6
J-7
J-8
J-9
Name
Filter for color temperature correction (C14)
ND filter 1.0
ND filter 0.3
Pattern box PTB-450
Color chart for pattern box
Siemens star
Adjustment remote commander (RM-95 upgraded) Note
Multi CPC
Measuring pin tool for viewfinder
IR receiver jig
Parts Code
J-6080-058-A
J-6080-808-A
J-6080-818-A
J-6082-200-A
J-6020-250-A
J-6080-875-A
J-6082-053-B
J-6082-311-A
J-6082-192-A
J-6082-383-A
Usage
Auto white balance adjustment/check
White balance adjustment/check
White balance check
White balance check
For checking the flange back
For video section adjustment (VC-188 board CN102)
For adjusting the viewfinder
For IR section adjustment
Fig.6-1-1.
J-1
J-6
J-2 J-3 J-4 J-5
J-7
J-8
J-9
