6-65

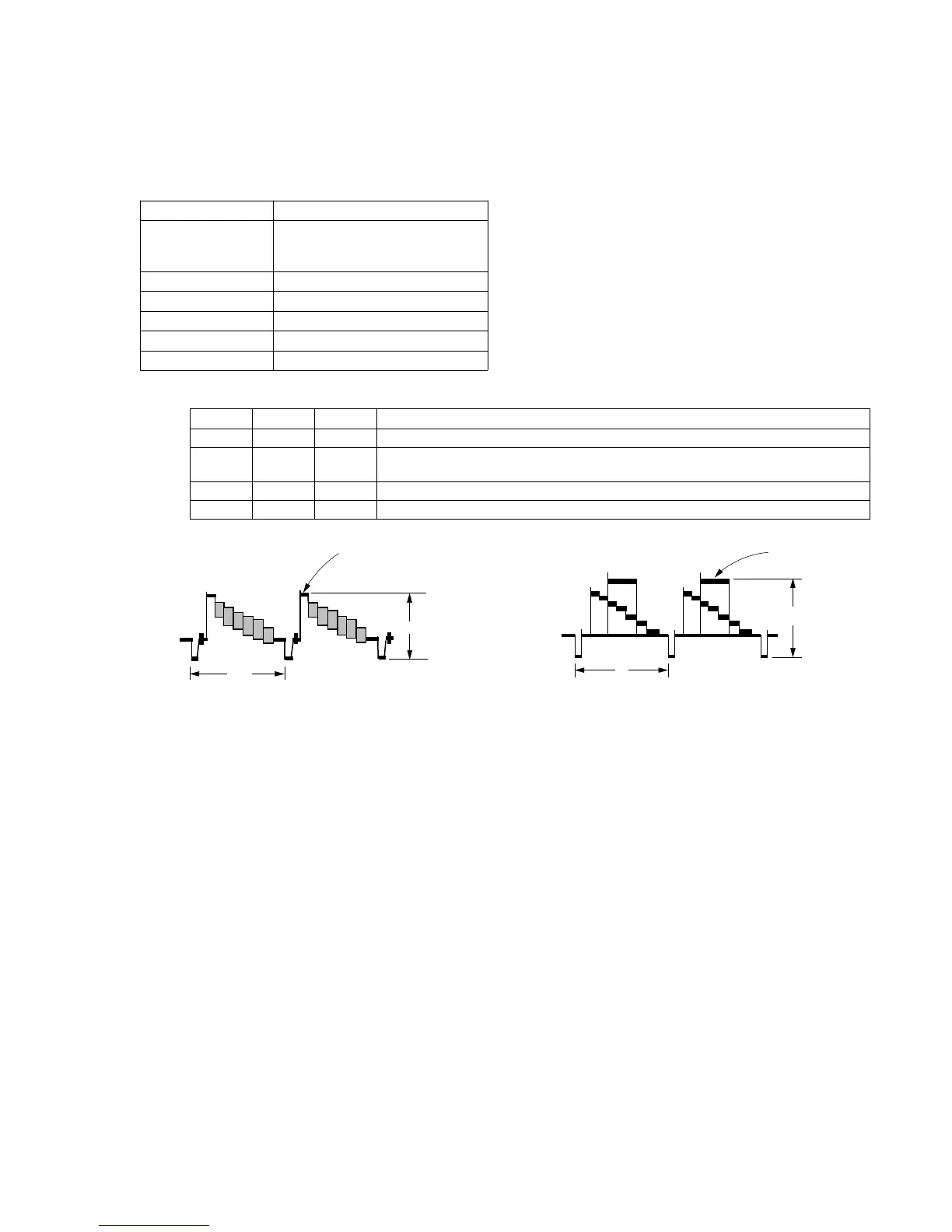

3-7. DEMD OUT LEVEL ADJUSTMENT
Purpose : The playback video level is kept to constant
level.
Adjustment error : The playback picture can be brighter or darker
than normal picture.
Mode Playback
Signal Alignment tape : Normal mode
WR5-5CSP (PAL)
WR5-5NSP (NTSC)
Measurement Point IC201 pin @º or CN102 pin 6
Measuring Instrument Oscilloscope
Adjustment Page F
Adjustment Address 33
Specification Value A=0.50 ± 0.01Vp-p
Adjustment procedure:
H
White (100%)
A
White (100%)
H
A
Fig. 6-3-1
Order Page Address Data Procedure
1 6 00 01 After setting the data, press the PAUSE button. (Preparation)
2 F 33 Change data using PLAY and STOP buttons so that the Y signal level (A) satisfies
the specification.
3 Press the PAUSE button.
4 6 00 00 After setting the data, press the PAUSE button. (End)
PAL MODEL NTSC MODEL
