6-68

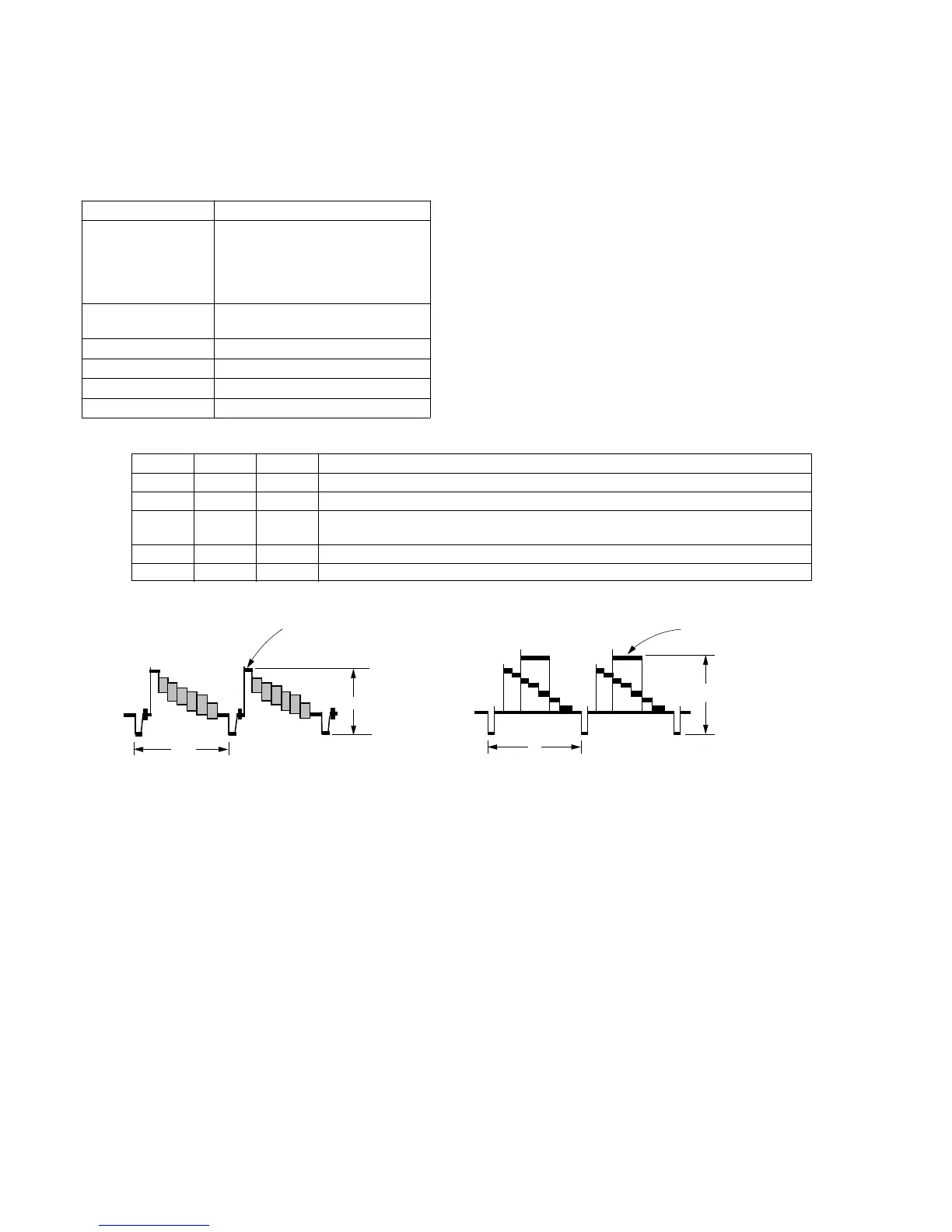

3-10. PB Y OUT LEVEL ADJUSTMENT
Purpose : Adjusts playback video level for the
specification value.
Adjustment error : Playback picture can be too brighter or too
darker than normal picture.
Mode Playback
Signal Alignment tape : color bar segment of
operation check tape
• Normal mode
WR5-5CSP (PAL)
WR5-5NSP (NTSC)
Measurement Point VIDEO output terminal
(terminated in 75Ω)
Measuring Instrument Oscilloscope
Adjustment Page F
Adjustment Address 32
Specification Value A=1.00 ± 0.05Vp-p
Adjustment procedure:
H
White (100%)
A
White (100%)
H
A
Order Page Address Data Procedure
1 6 00 01 After setting the data, press the PAUSE button. (Preparation)
2 Playback the color bar segment of the normal alignment tape.
3 F 32 Change data using PLAY and STOP buttons so that the playback signal level (A) satisfies
the specification.
4 Press the PAUSE button.
5 6 00 00 After setting the data, press the PAUSE button. (End)
PAL MODEL NTSC MODEL
To Next Page
