Sony CCD-TRV32 - 5 Repair Parts List; Disassembly; 1).Removal of Ma-297 Board, F Panel Assembly and Microphone (Except Trv14 E;Trv24 E Model); 2).Removal of Ma-296 Board, F Panel Assembly and Microphone

2-1
SECTION 2
DISASSEMBLY
NOTE : Follow the disassembly procedure in the numerical order given.
CCD-TRV32/TRV34/TRV34PK/TRV44/TRV52/TRV53/TRV312/TRV512(NTSC)
CCD-TRV14E/TRV24E/TRV44E(PAL)

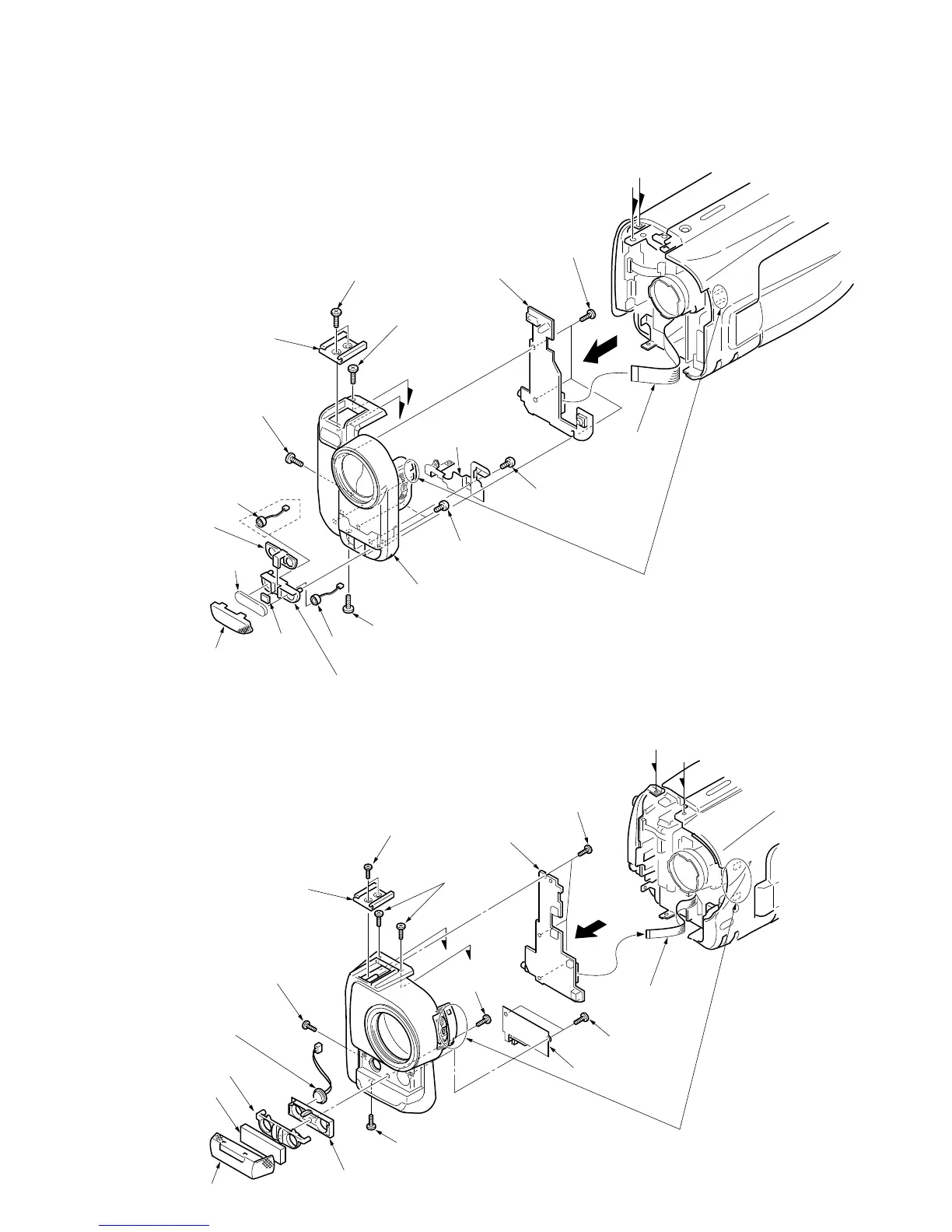

2-1(1).REMOVAL OF MA-297 BOARD, F PANEL ASSEMBLY AND MICROPHONE
(EXCEPT TRV14E/TRV24E MODEL)
2-1(2).REMOVAL OF MA-296 BOARD, F PANEL ASSEMBLY AND MICROPHONE
(TRV14E/TRV24E MODEL)
MA-297
BOARD
a
b
a
b
!£ Microphone grille
!§ Microphone
housing
!¢ Window screen
!¶ Microphone retainer
!• Microphone
3 Screw (M2 × 4)
!ª F panel assembly
(It is locked by a claws.)
!™ Screws (B2 × 5)
2 Screw (M2 × 4)
5 Accessory
shoe
4 Screws (M2 × 4)
1 Screw (M2 × 4)
Claws
!¡ MA ground plate
!º Screw (B2 × 5)
9 MA-297 board
8 Screws
(B2
× 5)
7 Flat cable
6
STEREO
MODEL
!• Microphone
!∞ Seet
(STEREO
MODEL)
a
b
a
b
MA-296
BOARD
!£ Microphone grille
!§ Microphone
3 Screw (M2 × 4)
!™ Screws (B2 × 5)
2 Screw (M2 × 4)
5 Accessory 
shoe
4 Screws (M2 × 4)
1 Screws (M2 × 4)
Claws
!¡ MA ground plate
!º Screws
(B2
× 5)
9 MA-296 board
8 Screws
(B2
× 5)
7 Flat cable
!¶ Microphone holder
!¢ Grille holder
6
!∞ Cushion
