— 6 —
SERVICE NOTE

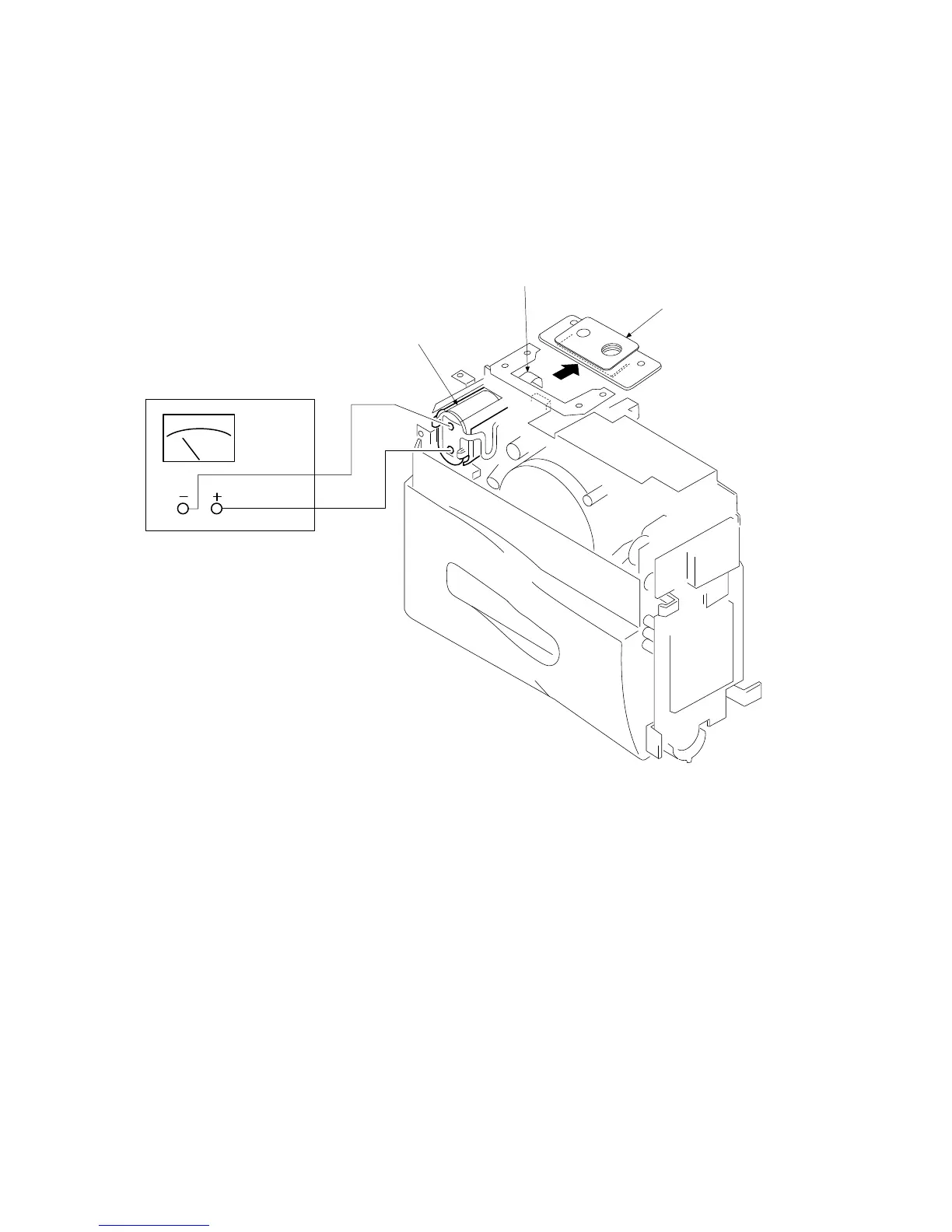

NOTE : To eject a cassette from the camcorder without turning on the main power, firstly remove the SCREW (for TRIPOD), then remove
the FLEXIBLE BOARD as shown, and finally connect the regulated power supply ; +5V to the loading motor, this is to protect the
main circuit from damage.
LOADING MOTOR
FLEXIBLE BOARD
(From CN403, VC-188)
SCREW (for TRIPOD)
Regulated power supply : 5V
To Next Page
